Name: RIDI 1561033 1561033 LED device mount Built-in LED 67 W LED (monochrome) White 1 pc(s)
Brand: RIDI
SKU: 3143412

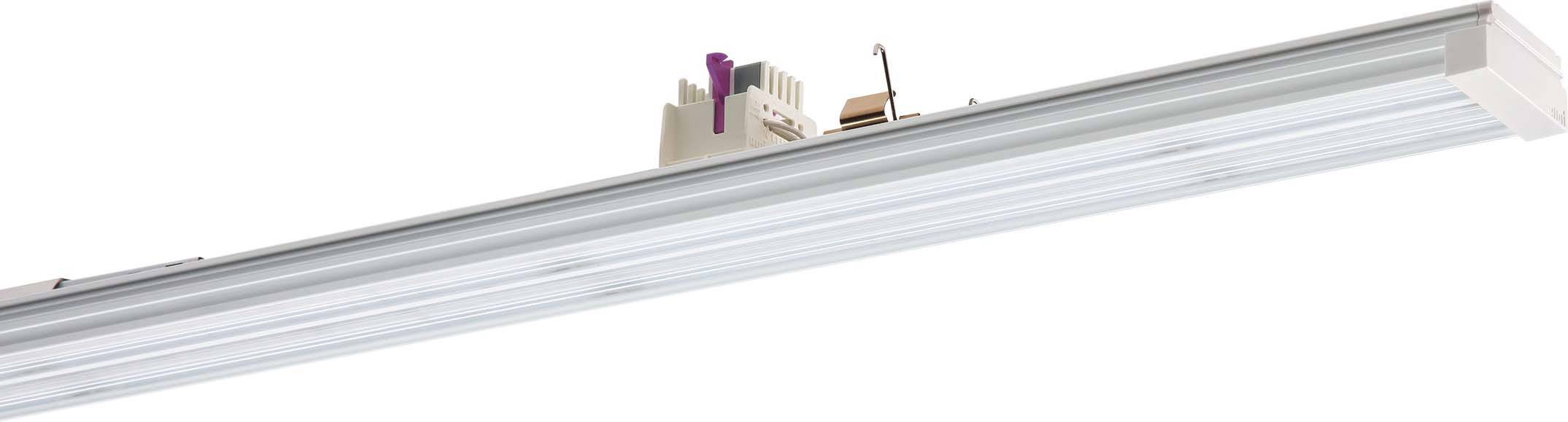

LED light bar in an aluminium housing with a transparent cover design, suitable for indoor spaces, provides energy-efficient lighting.

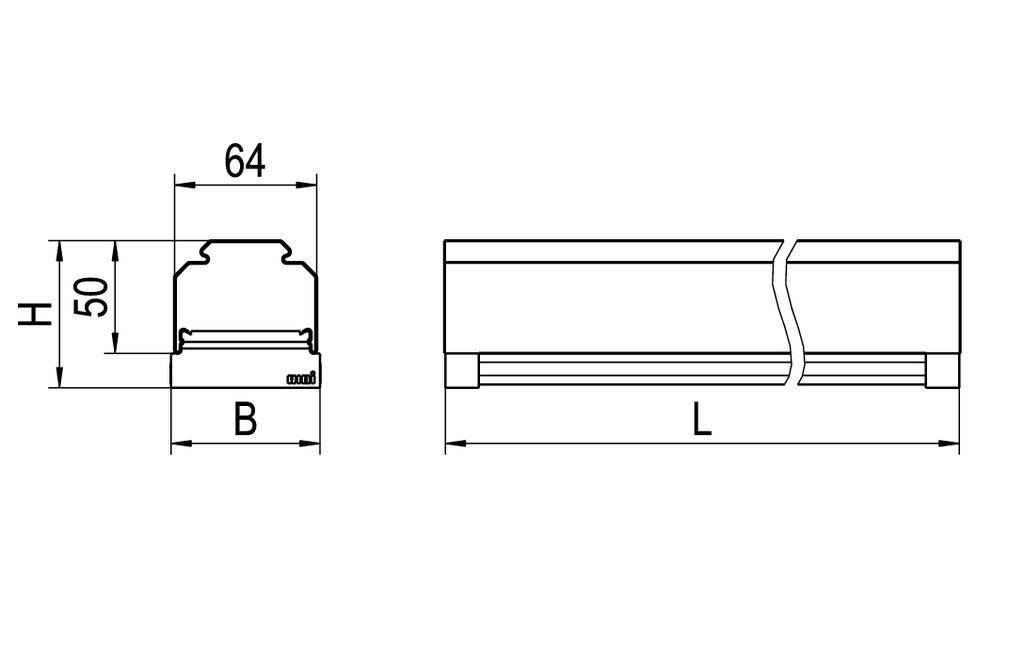

Technical drawing of a cylindrical object, dimensions: Height (H) 50 mm, Width (B) unknown, Length (L) unknown, Overall width 64 mm.

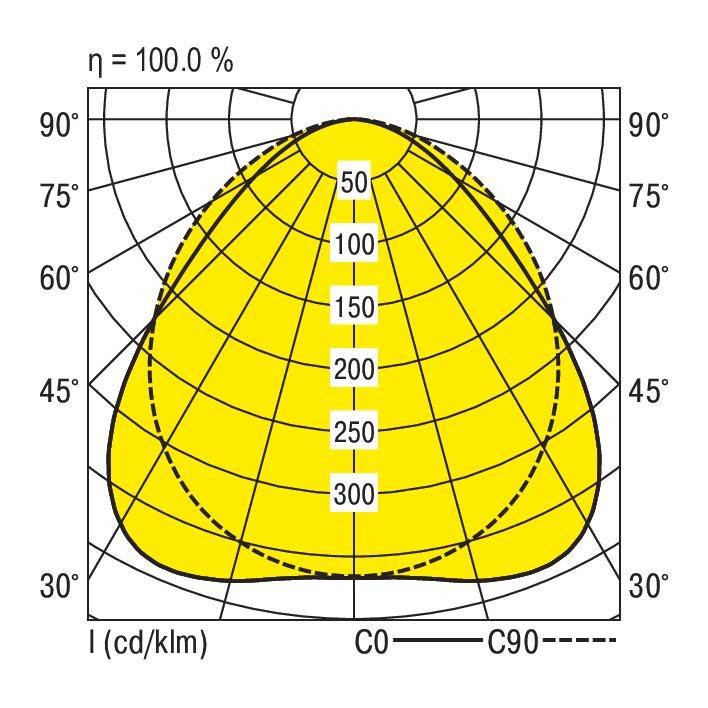

Diagram of a light distribution curve, showing the light intensity distribution in cd/klm, with concentric circles ranging from 50 to 300.

1/3

RIDI

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 2
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Housing color: White
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 9410000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: Yes
Dimmer DMX: No
Dimmer manufacturer-specific: No.
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: Without
Light distribution: Symmetric
Light emission: Direct
Color consistency (McAdam ellipse): SDCM3
Rated life L80/B10 at 25 °C: 50000 h
Protection class (IP) IP54
Protection class: I
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Suitable for emergency light: No.
Integrated emergency power supply: No.
Suitable for lamp output 30 W
Max. System power 67 W
Rated light current according to IEC 62722-2-1: 9410 lm
Light output 140 lm/W
Light color: White
Colour temperature: 3000 K
Color Rendering Index CRI: 80-89
Adjustable radiation angle: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width 67 mm
Height/depth 66 mm
Length: 1000 mm

Product type: LED device mount

Operating voltage: 230 V

No. of bulbs: 2

: Built-in LED

Bulb type: LED (monochrome)

Rating per bulb: 30 W

: 67 W

: 3000 K

Colour: White

: 9410 lm

Total luminous flux: 9410 lm

Light features: Dimmable

: IP54

Protection class: I

Factory colour: White

Material: Aluminium

Dim: (L x W x H) 1000.00 x 67.00 x 66.00 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 3000 K

Width: 67.00 mm

Height: 66.00 mm

Length: 1000.00 mm

Rated luminous flux: 9410 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3143412 RIDI 1561033 1561033 LED device mount Built-in LED 67 W LED (monochrome) White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3143412 RIDI 1561033 1561033 LED device mount Built-in LED 67 W LED (monochrome) White 1 pc(s)

Description

Material device carrier: Aluminium profile, extruded
