Name: RIDI 2500024 VL2MFS500-13PD4S-R10 Device mount 1 pc(s)
Brand: RIDI
SKU: 3540747

Technical specifications

Height: 138 mm
Width 103 mm
Design: Presence detectors
Mounting type: Other
Material: Metal
Colour: white
Protection class (IP) IP54
Surface protection: Untreated
Impact strength: IK04
Transparent: No.
Design of surface: Matt
Nominal voltage: 230 V
Connection type: Other
Halogen-free: Yes
Voltage type AC
Frequency: 50 Hz
Suitable for C-Load: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for wall mounting: No.
Suitable for ceiling mounting: No.
Material quality: Other
Antibacterial treatment: No.
RAL number (similar): 9016
Response brightness adjustable: No.
Optimum mounting height 2.5 m.
Max. Range to one side: 12 m.
Max. Range: Front 8 m
Capturing field Diameter on floor: 24 m.
Staircase monitoring: Yes
HVAC activation: No.
Network-compatible: No.
Suitable for wireless transmission: No.
Low-level detection/back field monitoring: No.
Response sensitivity adjustable: Yes
Teach-Function for Response Brightness: No.
Dimming function with dimming element: No.
Animal slope: No.
With remote control: No.
Sensor type: Passive infrared
With DALI interface: No.
Rear field monitoring: No.
Bridge switch: No.
Max. Presence area: 32 m²
Remote control: No.
With signal unit: No.
Switch-off delay 0 s.
Temperature: -25..50°C
With acoustic sensor: No.
Switch-on delay 0 s.
Number of switching zones: 450
Control current 1 mA

Product type: Device mount

: IP20

: n.rel.

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3540747 RIDI 2500024 VL2MFS500-13PD4S-R10 Device mount 1 pc(s)

Description

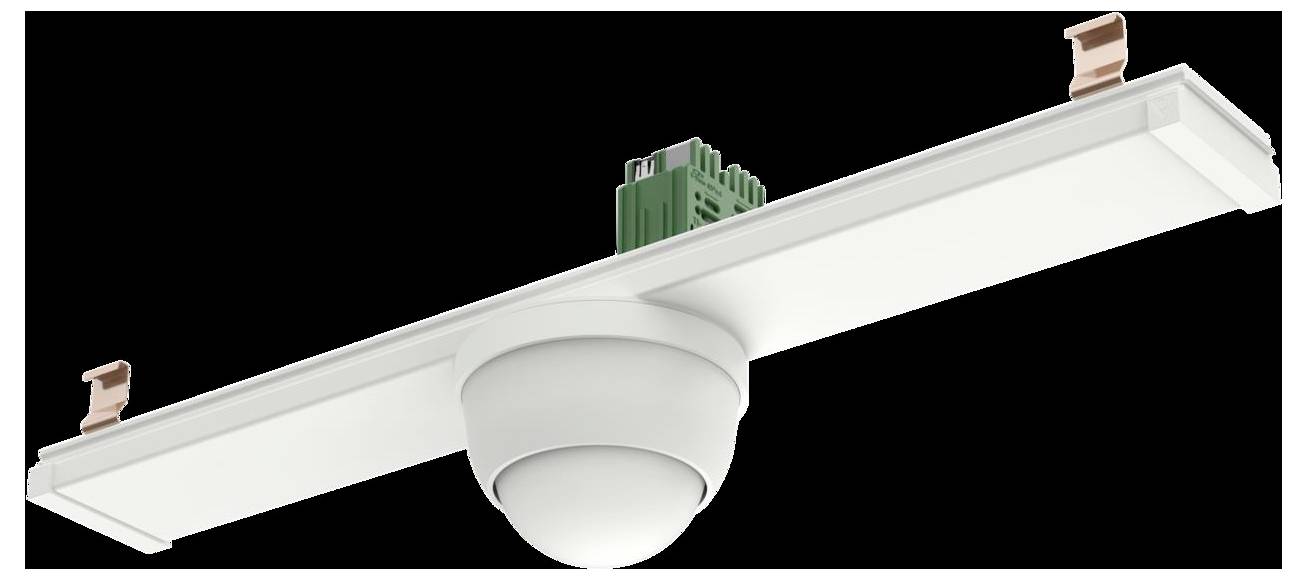

Sensor module insert with slave-presence sensor (on/off). Device carrier made of aluminum profile, extruded, traffic white, similar to RAL 9016. Polycarbonate sensor, UV resistant. Simple clipping for electrical contact and mechanical fixing in system-bound LINA EVO mounting rail. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect mounting (anti-twist protection). Nominal voltage 230 V AC 50 Hz. Electrical adapter for flexible tapping of the power supply in the rail. Colour and optical coding for easy mounting. With light and motion detector. Detection range transverse Ø 24 m, detection field 452 m². Switching impulse output for connection to a Master presence sensor to expand the detection field. Up to 8 slave units can be combined with one Master sensor. The module inserts can be placed variably between the device carriers. Depending on the design, modules cannot be placed in the connector area. Including cover plates/blinds for limiting the sensor detection field.

This text is machine translated.
