EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights LED-mounted downlight 3000K ADLR 235/4000-830 W
- Power= 31 W
- Total luminous flux= 4050 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Material of housing: Steel
- Surface protection: Powder-coated
- Housing color: White
- Surface brushed: No.
- Voltage type AC
- Nominal voltage 230..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: White

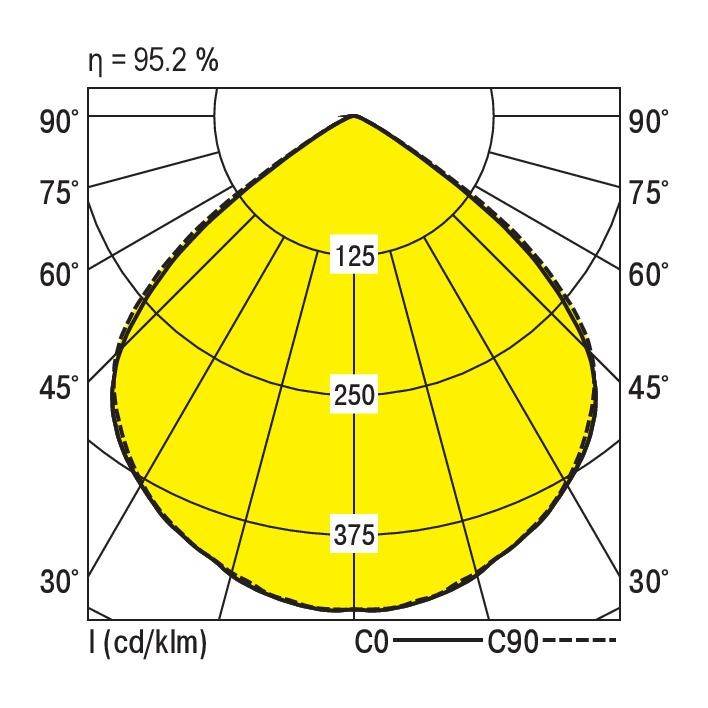

- Light distribution: Symmetric
- Light emission: Direct
- Protection class (IP) IP40
- Protection class: I
- Suitable for lamp output 27 W
- Max. System power 31 W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Rated light current according to IEC 62722-2-1: 4050 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 228 mm
- Outer diameter: 235 mm
- Installation diameter 235 mm
- Lamp with limited surface temperature "D-sign": No.
- Max. Number of lights circuit breaker B16: 17
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Light output 130 lm/W
- Suitable for screen workstations according to EN 12464-1: No.
- IFTTT support available: No.
- Color consistency (McAdam ellipse): SDCM3
- Glare limiter (UGR): 26.3
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Dim
(Ø x H) 235 mm x 228.00 mm
- Type
Circular
- Operating voltage
230 V
- No. of bulbs
1
- Product type
LED ceiling light
- Width
235 mm
- Bulb type
LED (monochrome)
- Height
228.00 mm
Built-in LED
- Rating per bulb
27 W
- Depth
228 mm
31 W
- (Ø)
235 mm
- Protection class
I
IP40
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
3000 K
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Total luminous flux
4050 lm
4050 lm
- Rated luminous flux
4050 lm
- Nominal voltage
230 V
- Recess diameter
235 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3142545 RIDI 322033 322033 LED ceiling light LED (monochrome) Built-in LED 31 W White
User & Safety Instructions
User & Safety Instructions 3142545 RIDI 322033 322033 LED ceiling light LED (monochrome) Built-in LED 31 W White
Description
Downlight ADLR, expansion/pendant, traffic white, similar to RAL 9016, on/off, light distribution symmetric extremely wide-beam, Ø 235 mm, height 228 mm, protection class IP40, protection class, Rated light current 4050 lm, rated power 31 W, 130 lm/W, light color 830, reference value UGR 26
This text is machine translated.
This text is machine translated.
