1/3
EAN:
Part number:
Item no:
Highlights & Details
Ridi-Lamp LED-Add-on downlight 4000K DALI ADLR 410 #0331244
- Power= 30 W
- Total luminous flux= 3550 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Material of housing: Steel
- Surface protection: Powder-coated
- Housing color: White
- Cover material: Textured plastic
- Surface brushed: No.
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without

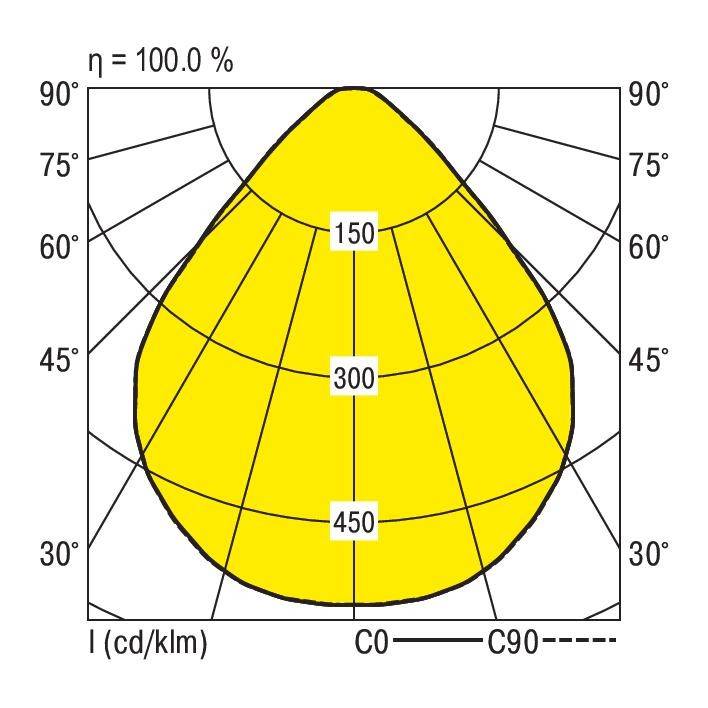

- Light distribution: Symmetric
- Radiation angle: Free-radiation/diffuse
- Light emission: Direct
- Energy efficiency class C
- Protection class (IP) IP40
- Protection class: I
- Suitable for lamp output 26 W
- Max. System power 30 W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Rated light current according to IEC 62722-2-1: 3550 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 68 mm
- Outer diameter: 410 mm
- Installation diameter 410 mm
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Light output 118 lm/W
- Suitable for screen workstations according to EN 12464-1: No.
- IFTTT support available: No.
- Color consistency (McAdam ellipse): SDCM3
- Glare limiter (UGR): 22.7
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Dim

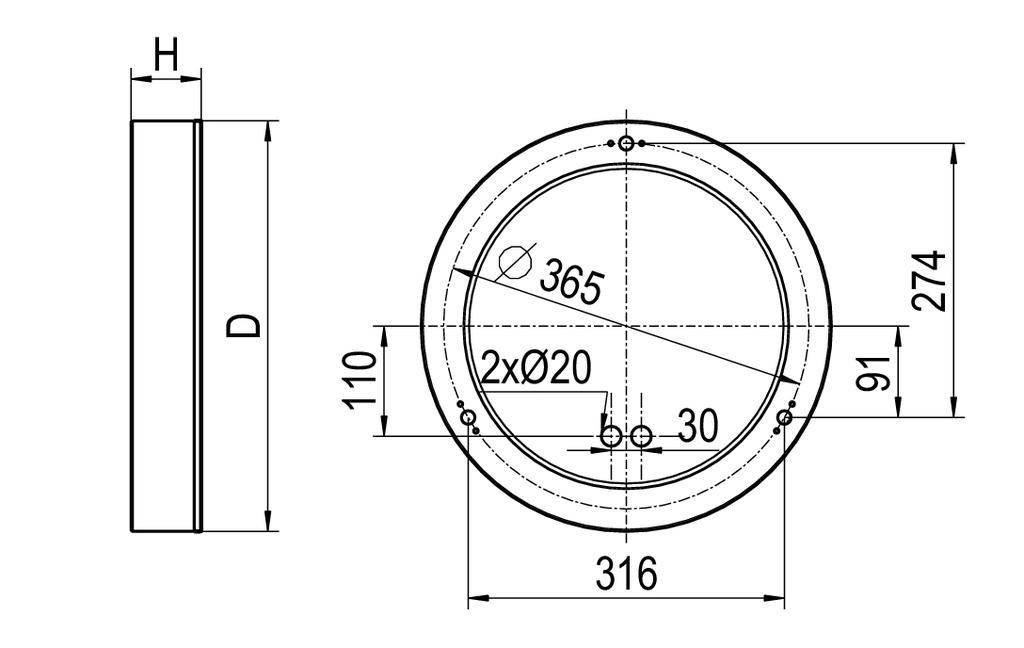

(Ø x H) 410 mm x 68.00 mm
- Type
Circular
- Operating voltage
230 V
- No. of bulbs
1
- Product type
LED ceiling light
- Bulb type
LED (monochrome)
- Height
68.00 mm
Built-in LED
- Rating per bulb
26 W
- Depth
68 mm
30 W
- (Ø)
410 mm
- Light features
Dimmable
- Protection class
I
IP40
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
3550 lm
3550 lm
- Rated luminous flux
3550 lm
- Nominal voltage
230 V
- Recess diameter
410 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3144726 RIDI 331244 331244 LED ceiling light LED (monochrome) Built-in LED 30 W White
User & Safety Instructions
User & Safety Instructions 3144726 RIDI 331244 331244 LED ceiling light LED (monochrome) Built-in LED 30 W White
Description

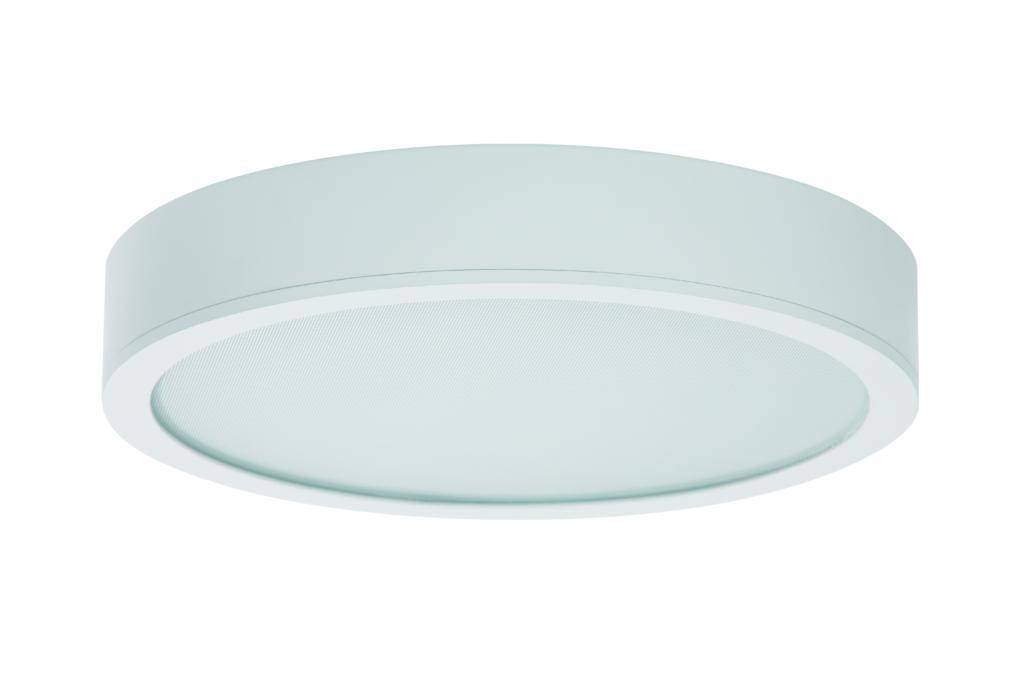

Downlight ADLR, annex, traffic white, similar to RAL 9016, DALI, Light distribution symmetric wide-beam, Ø 410 mm, height 68 mm, protection class IP40, protection class I, Rated light current 3550 lm, rated power 30 W, 118 lm/W, light color 840, reference value UGR 22
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
