Name: RIDI 422201 422201 LED ceiling light LED (monochrome) 18 W White
Brand: RIDI
SKU: 3139828

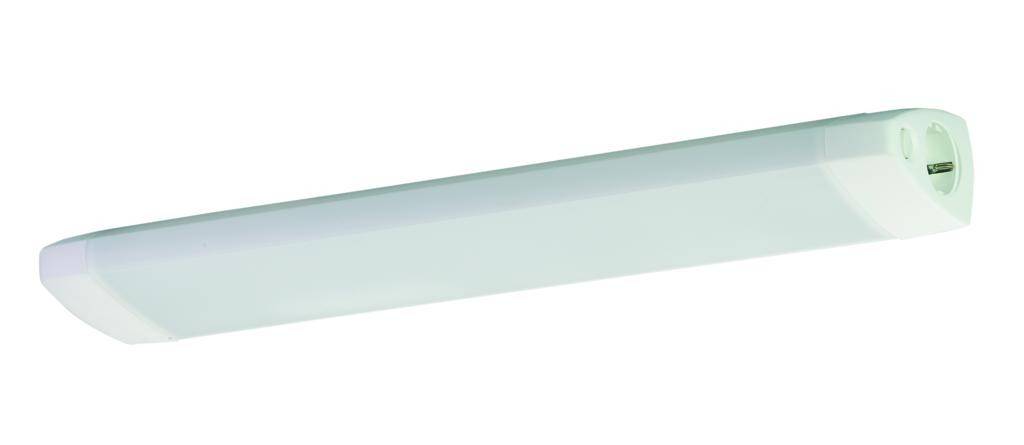

White, modern LED light with a slim, elongated design, suitable for ceiling or wall mounting in interior spaces.

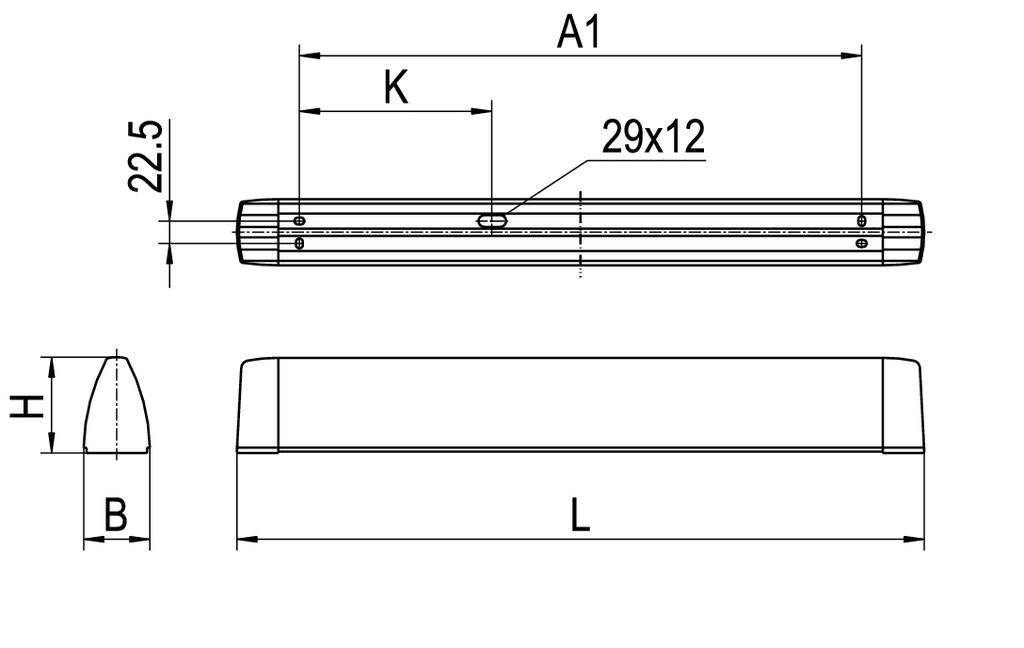

Technical Drawing of a Rectangular Object with Dimensions: Height 22.5, Width B, Length L, and Specifications 29x12, K, A1.

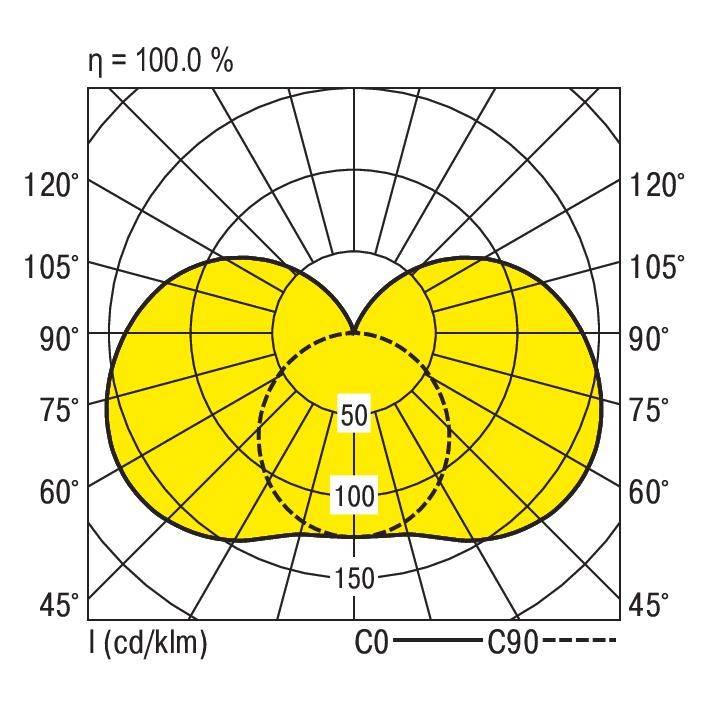

Polar Diagram for Light Distribution. The C0 and C90 curves show intensities from 0° to 180°. Maximum intensity at 100 cd/klm. Efficiency at 100%.

1/3

RIDI

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-tub lamp 840 SPN0960NDWS840O0250.

Power= 18 W
Total luminous flux= 2500 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on a panel: No.
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Cover material: Plastic opal
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 2500000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimming function: Yes
Light distribution: Symmetric
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Max. Number of lights circuit breaker B16: 36
Max. Number of lamps line circuit breakers C16: 60
Protection class (IP) IP20
Impact strength: IK03
Protection class: I
Lamp with limited surface temperature ""D-sign"": No.
Suitable for emergency lighting: Yes
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 18 W
Light output 138 lm/W
Rated light current according to IEC 62722-2-1: 2500 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Width 67 mm
Height/depth 97 mm
Length: 960 mm
Glare limiter (UGR): 22.5
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (L x W x H) 960.00 x 67.00 x 97.00 mm

Type: Rectangular

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 67.00 mm

Bulb type: LED (monochrome)

Height: 97.00 mm

Length: 960.00 mm

Rating per bulb: 18 W

Depth: 97 mm

: 18 W

Protection class: I

: IP20

Factory colour: White

Material: Steel

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 2500 lm

: 2500 lm

Rated luminous flux: 2500 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3139828 RIDI 422201 422201 LED ceiling light LED (monochrome) 18 W White

User & Safety Instructions

User & Safety Instructions 3139828 RIDI 422201 422201 LED ceiling light LED (monochrome) 18 W White

Description

Ceiling and wall lamp SPN, extension, traffic white, similar to RAL 9016, on/off, Light emission , extremely wide beam optical cover, length 960 mm, width 67 mm, height 97 mm, degree of protection IP20, Shock resistance IK03, Rated light current 2500 lm, rated power 18 W, 138 lm/W, light color 840, Reference value UGR 22

This text is machine translated.
