Name: RIDI 422207 422207 LED ceiling light LED (monochrome) 29 W White
Brand: RIDI
SKU: 3139964

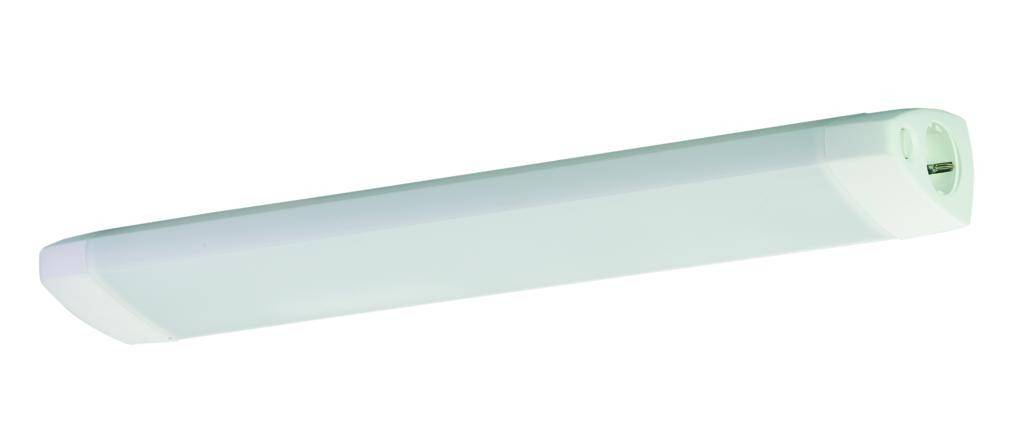

Long, rectangular LED light with white casing. Suitable for ceiling mounting in indoor spaces. Energy-efficient and modern in design.

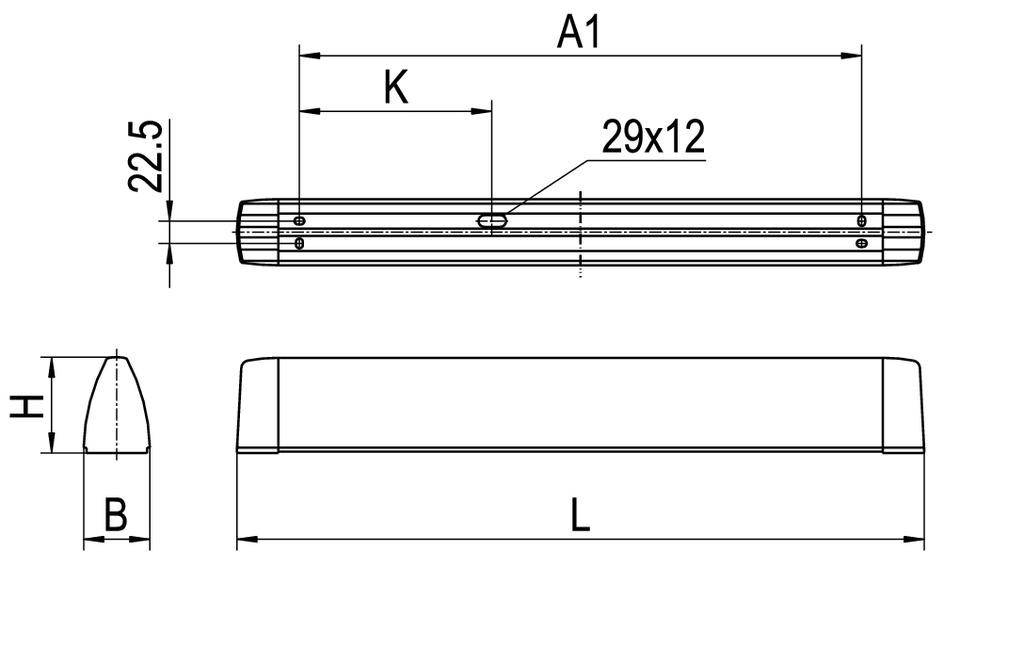

Technical drawing of a component with dimensions: Length (L), Height (H), Width (W), and specific measurements (K, A1, 29x12).

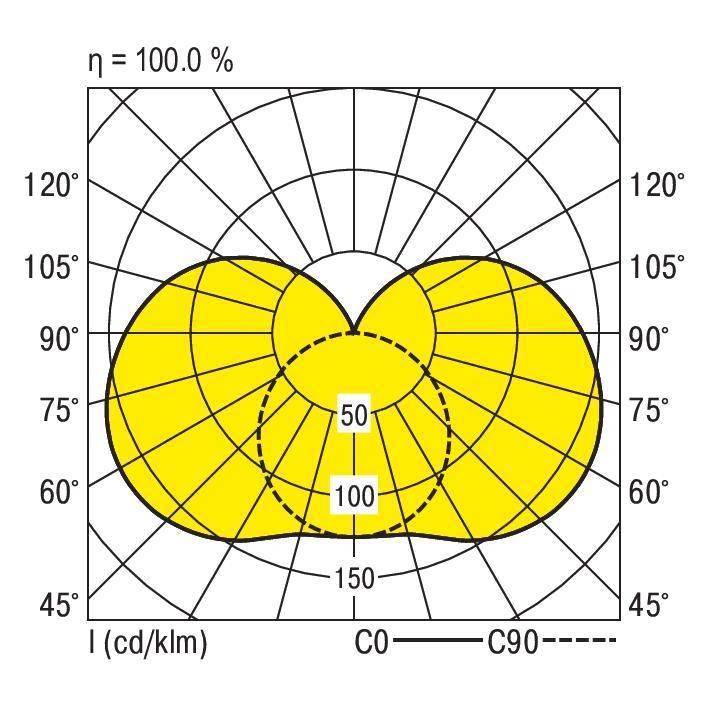

Diagram shows the light distribution pattern of a luminaire in polar coordinates with luminance in candela per kilolumen along the C0 and C90 axes.

1/3

RIDI

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-tub lamp 840 SPN1260NDWS840O0400.

Power= 29 W
Total luminous flux= 4000 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on a panel: No.
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 1
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Cover material: Plastic opal
Design of grid: Without
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 4000000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimming function: Yes
Light distribution: Symmetric
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Max. Number of lights circuit breaker B16: 23
Max. Number of lamps line circuit breakers C16: 38
Protection class (IP) IP20
Impact strength: IK03
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Suitable for emergency lighting: Yes
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 29 W
Light output 137 lm/W
Rated light current according to IEC 62722-2-1: 4000 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Width 67 mm
Height/depth 97 mm
Length: 1260 mm
Glare limiter (UGR): 23.1
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (L x W x H) 1260.00 x 67.00 x 97.00 mm

Operating voltage: 230 V

No. of bulbs: 1

Product type: LED ceiling light

Width: 67.00 mm

Bulb type: LED (monochrome)

Height: 97.00 mm

Length: 1260.00 mm

Rating per bulb: 29 W

Depth: 97 mm

: 29 W

Protection class: I

: IP20

Factory colour: White

Material: Steel

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 4000 lm

: 4000 lm

Rated luminous flux: 4000 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3139964 RIDI 422207 422207 LED ceiling light LED (monochrome) 29 W White

User & Safety Instructions

User & Safety Instructions 3139964 RIDI 422207 422207 LED ceiling light LED (monochrome) 29 W White

Description

Ceiling and wall lamp SPN, extension, traffic white, similar to RAL 9016, on/off, Light emission , extremely wide beam optical cover, length 1260 mm, width 67 mm, height 97 mm, degree of protection IP20, Shock resistance IK03, Rated light current 4000 lm, rated power 29 W, 137 lm/W, light color 840, Reference value UGR 23

This text is machine translated.
