RIDI 532529 LED strip light Built-in LED 25 W 1188.00 mm White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for the number of bulbs: 1
- Material: Steel
- Housing color: White
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Covering of the lamp with thermal insulation material is possible: No.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- With switch: No.
- With motion detector: No.
- Suitable for lamp output 22 W
- Max. System power 25 W

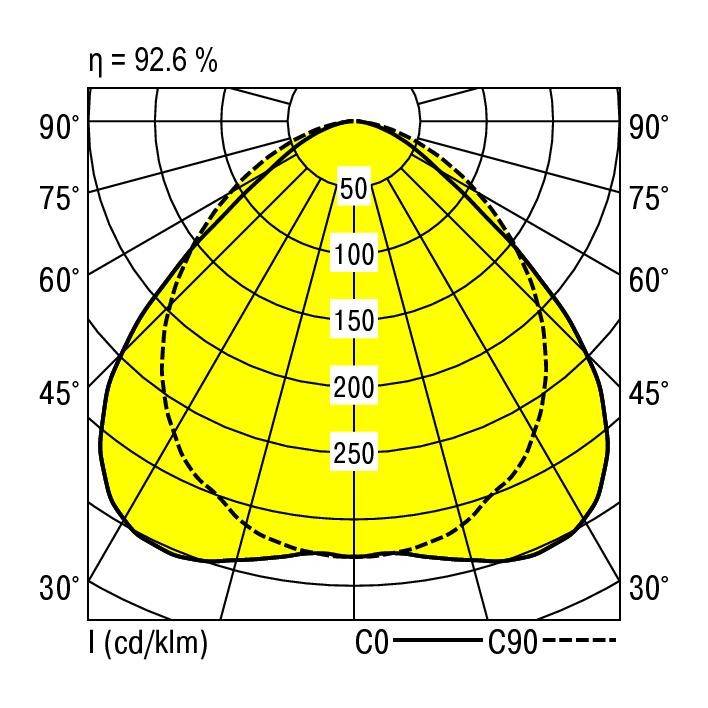

- Rated light current according to IEC 62722-2-1: 3700 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

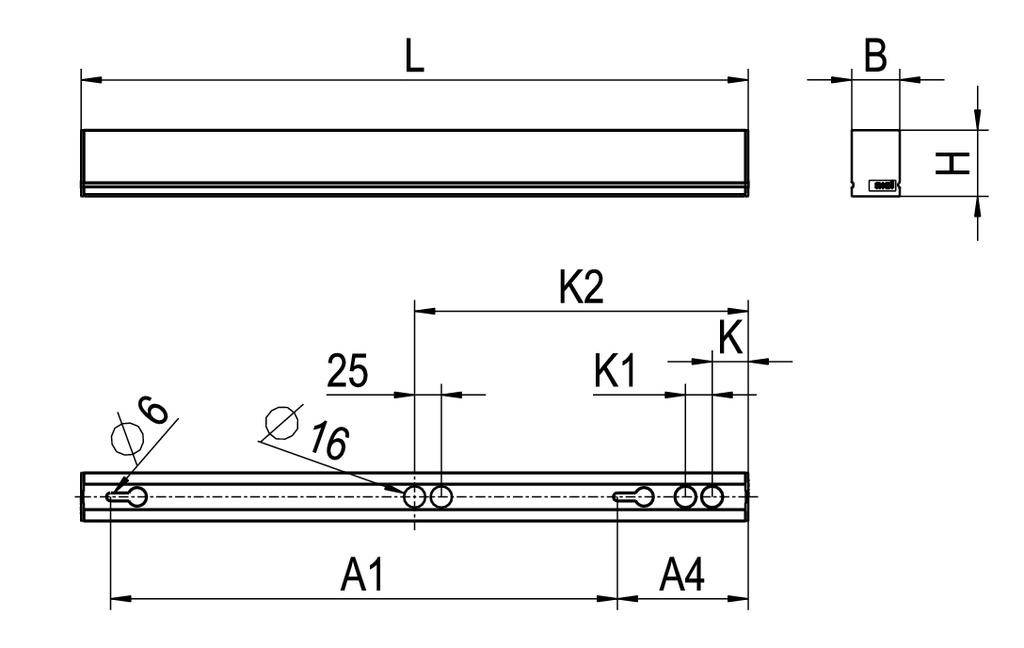

- Width 36 mm
- Height/depth 50 mm
- Length: 1188 mm
- Electrical connection with connector system: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
Built-in LED
- Product type
LED strip light
- Length
1188.00 mm
25 W
- Factory colour
White
- Operating voltage
230 V
- Content
1 pc(s)
n.rel.
- Width
36.00 mm
- Height
50 mm
- Rated luminous flux
3700 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- No. of bulbs
1
IP20
- Bulb type
LED (monochrome)
- Colour
Cool white
- Light bulb included
Yes
- Material (details)
Steel
- Nominal voltage
230 V
- Total luminous flux
3700 lm
- Rating per bulb
22 W
4000 K
- Protection class
I
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3134926 RIDI 532529 LED strip light Built-in LED 25 W 1188.00 mm White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3134926 RIDI 532529 LED strip light Built-in LED 25 W 1188.00 mm White 1 pc(s)
Description

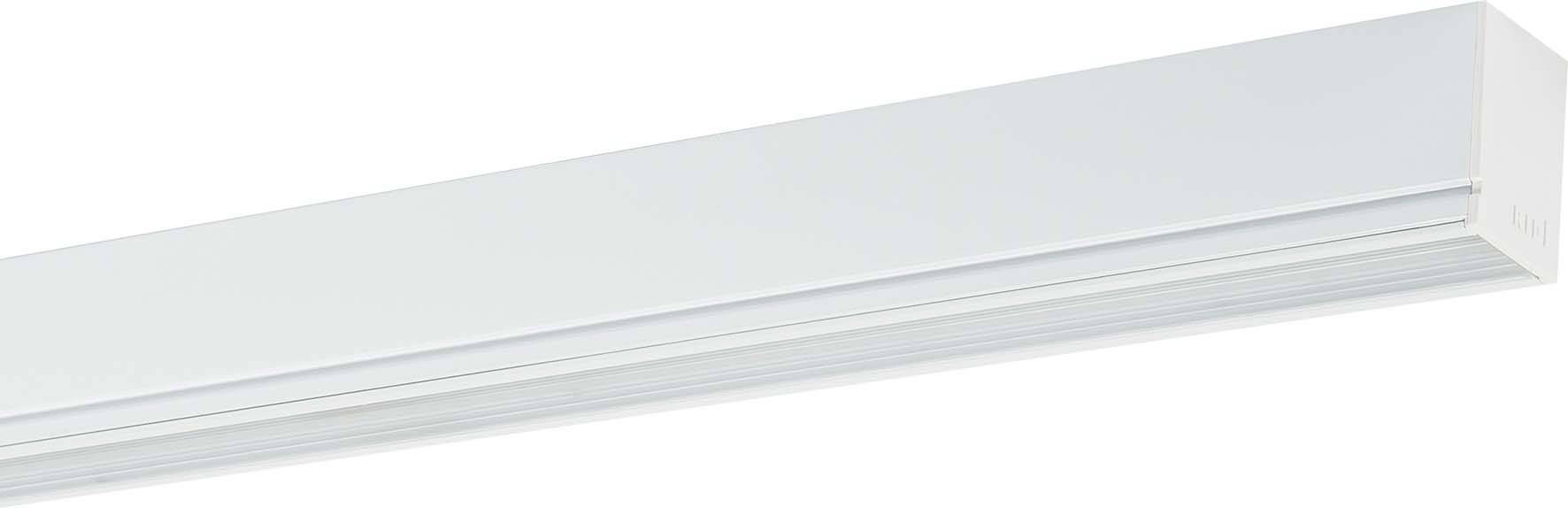

Light strip VLDF-F, mounting, white, DALI, light output , Cover longitudinal prismatic extremely wide radiating, length 1188 mm, width 36 mm, height 50 mm, protection class IP20, Rated light current 3700 lm, rated power 25 W, 148 lm/W, light color 840, reference value UGR 28
