Highlights & Details
Ridi-lights LED-hanging lamp 830 FEDGE2-PD15 #0627629
- Total luminous flux= 3890 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 1
- Material of housing: Aluminium
- Housing color: White
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 3890000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Reflector: Without

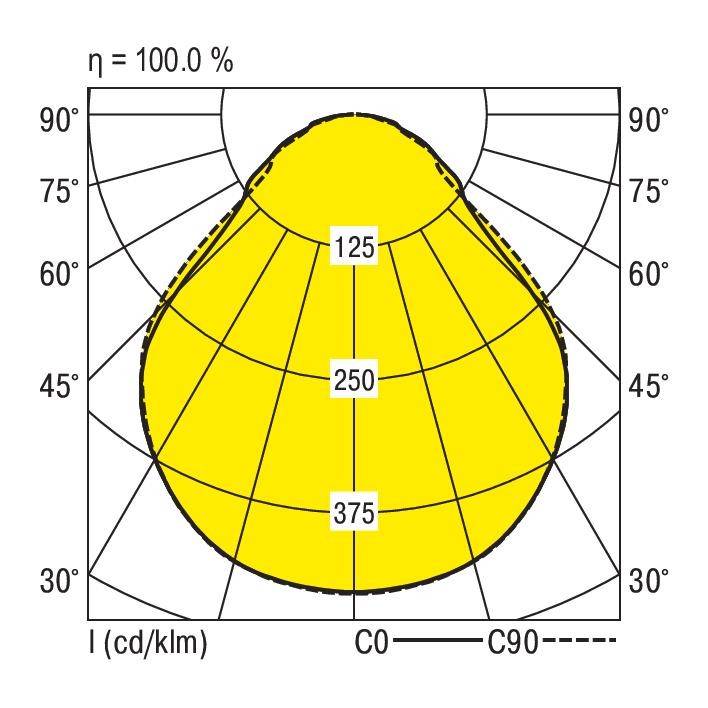

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Direct/indirect parts separately adjustable: Yes
- Protection class (IP) IP20
- Impact strength: IK07
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 29 W
- Rated light current according to IEC 62722-2-1: 3890 lm
- Light color: White
- Light output 134 lm/W
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 18.7
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

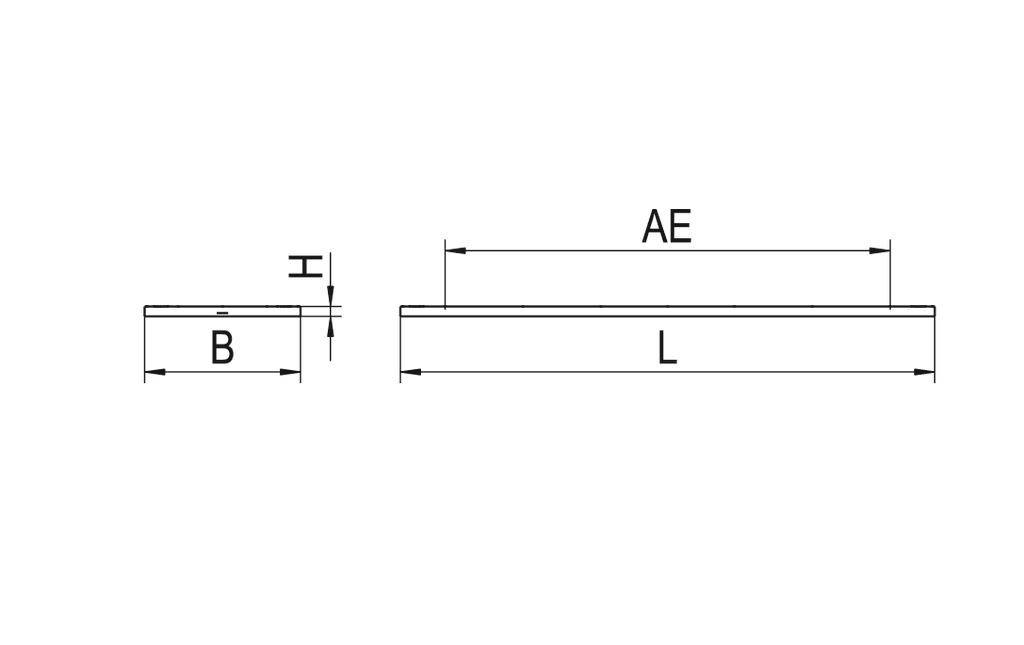

- Width 341 mm
- Height/depth 22 mm
- Length: 1501 mm
- With suspension: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 1501.00 x 341.00 x 22.00 mm
n.rel.
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
3890 lm
- Width
341.00 mm
- Height
22.00 mm
- Length
1501.00 mm
- Rated luminous flux
3890 lm
- Colour rendering index
80-89
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3140942 RIDI 627629 627629 LED pendant light LED (monochrome) White
User & Safety Instructions
User & Safety Instructions 3140942 RIDI 627629 627629 LED pendant light LED (monochrome) White
Description
Suspended lamp FEDKE2, white, on/off, direct light output, wide microprismatic cover, Length 1501 mm, width 341 mm, height 22 mm, protection class IP20, shock resistance IK07, Rated light current 3890 lm, rated power 29 W, 134 lm/W, light color 830, reference value UGR 18
