1/3
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights LED-Add-on lamp 840, ws M200-A069 #0627761
- Power= 18 W
- Total luminous flux= 2180 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 2
- Material of housing: Aluminium
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Matt/satin plastic
- Design of grid: Without
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Nominal current: 220000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Manufacturer-specific dimming: Yes
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimming function: Yes

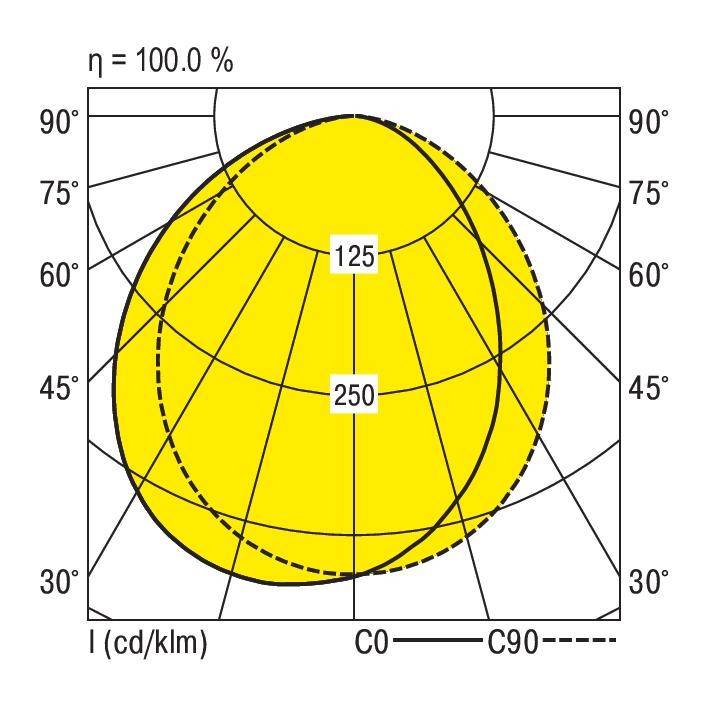

- Light distribution: Asymmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 23
- Max. Number of lamps line circuit breakers C16: 38
- Protection class (IP) IP65
- Impact strength: IK10
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 18 W
- Light output 121 lm/W
- Rated light current according to IEC 62722-2-1: 2180 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 200 mm
- Height/depth 70 mm
- Length: 690 mm
- Glare limiter (UGR): 24.3
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Dim

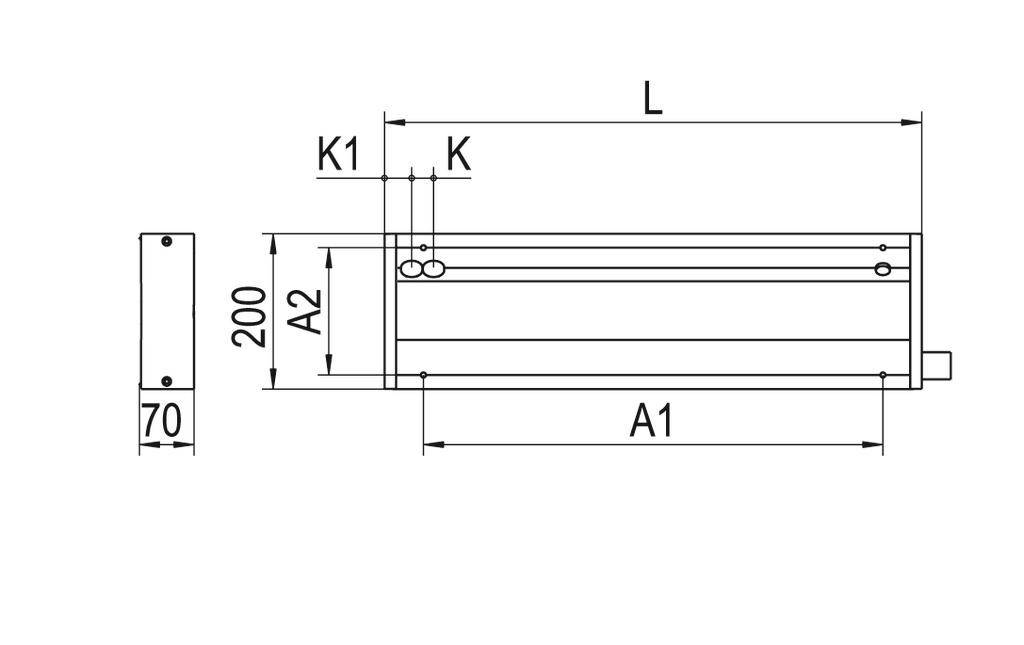

(L x W x H) 690.00 x 200.00 x 70.00 mm
- Operating voltage
230 V
- No. of bulbs
2
- Product type
LED ceiling light
- Width
200.00 mm
- Bulb type
LED (monochrome)
- Height
70.00 mm
LED
- Length
690.00 mm
- Depth
70 mm
18 W
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
2180 lm
- Rated luminous flux
2180 lm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3141414 RIDI 627761 627761 LED ceiling light LED (monochrome) LED 18 W White
User & Safety Instructions
User & Safety Instructions 3141414 RIDI 627761 627761 LED ceiling light LED (monochrome) LED 18 W White
Description

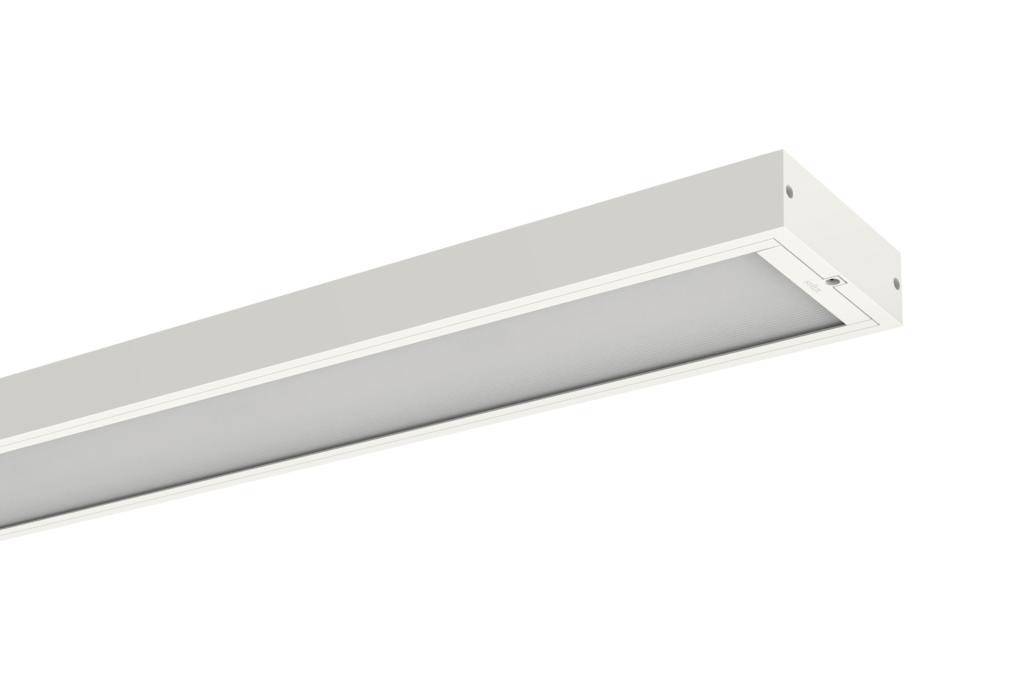

Ceiling Light M200, mounting, traffic white, similar to RAL 9016, xFlex, Direct light emission, longitudinal prismatic cover unit, length 690 mm, width 200 mm, height 70 mm, Protection class IP65, shock resistance IK11+ 75 J, rated light current 2180 lm, rated power 18 W, 121 lm/W, light color 840, Reference value UGR 24
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
