Highlights & Details

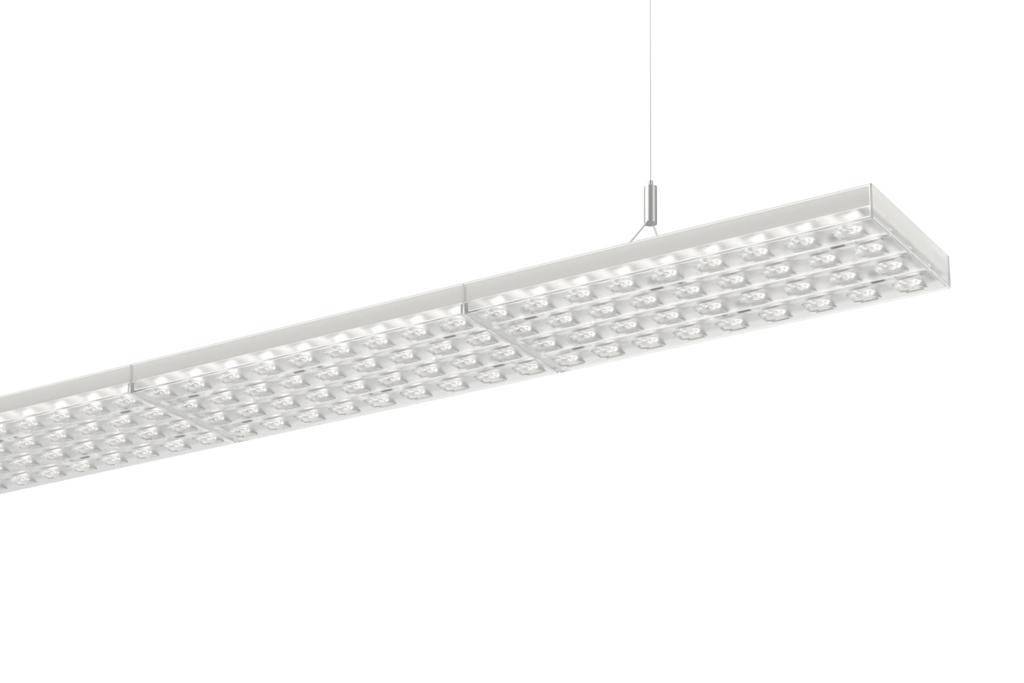

Ridi-Lamp LED-Pendant lamp 840, ws LENSES-PD #0627806
- Power= 34 W Total luminous flux= 5500 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 1
- Material of housing: Aluminium
- Housing color: White
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 5500000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes

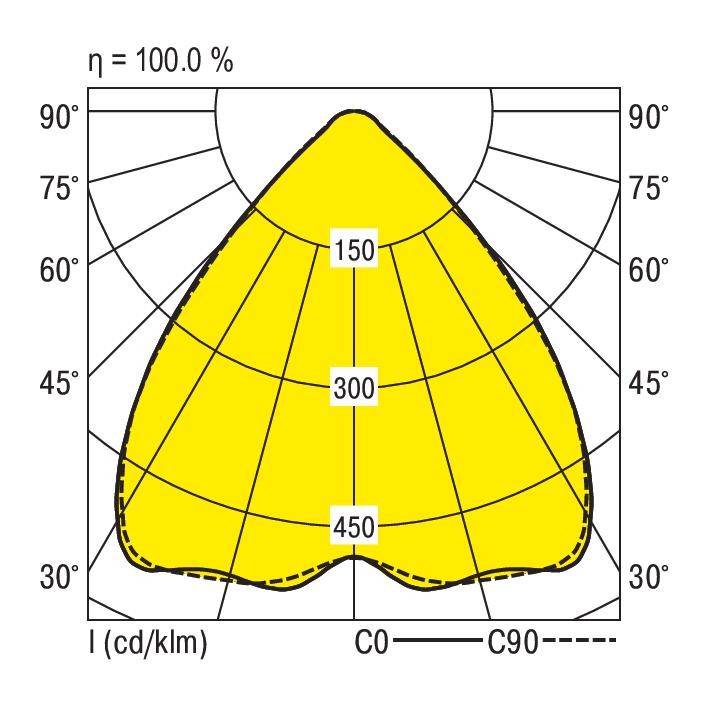

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Direct/indirect parts separately adjustable: Yes
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 34 W
- Rated light current according to IEC 62722-2-1: 5500 lm
- Light color: White
- Light output 161 lm/W
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 17.8
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

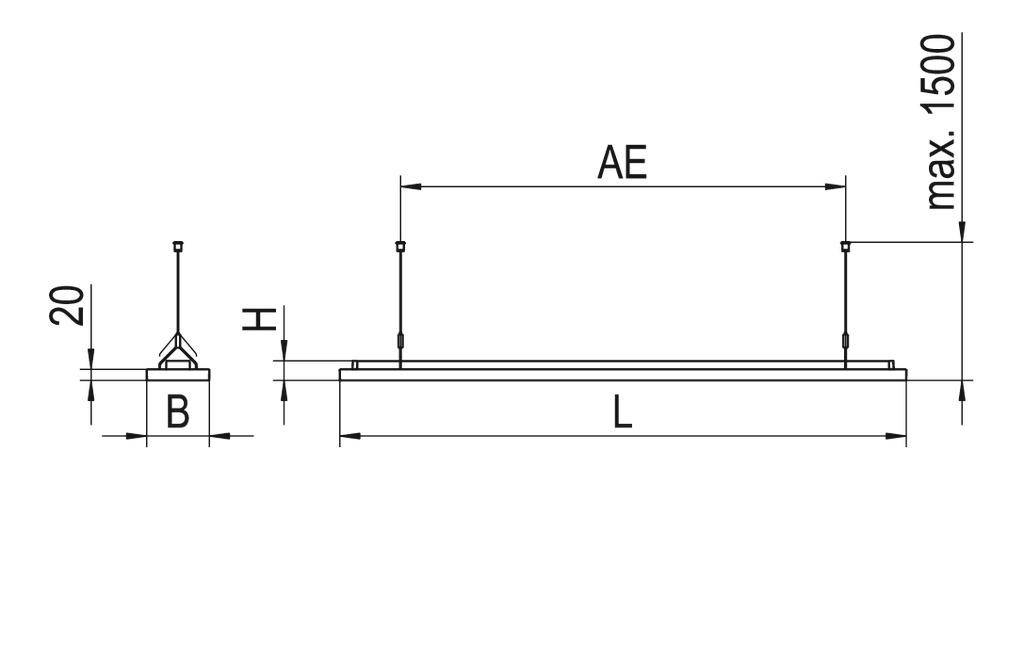

- Width 113 mm
- Height/depth 35 mm
- Length: 1526 mm
- With suspension: Yes
- Pendant length: 1500 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
34 W
34 W
- Light features
Incl. suspension
- Pendulum length (max.)
150 cm
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 1526.00 x 113.00 x 35.00 mm
n.rel.
- Type
Rod
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
5500 lm
5500 lm
- Width
113.00 mm
- Height
35.00 mm
- Length
1526.00 mm
- Depth
35 mm
- Rated luminous flux
5500 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
Documents & Downloads
Datasheet
Datasheet 3140707 RIDI 627806 627806 LED pendant light LED (monochrome) Built-in LED 34 W White
User & Safety Instructions
User & Safety Instructions 3140707 RIDI 627806 627806 LED pendant light LED (monochrome) Built-in LED 34 W White
Description
Suspended lamp LENSES, traffic white, similar to RAL 9016, on/off, light exit direct, Broad radiation lens, length 1526 mm, width 113 mm, height 35 mm, protection class IP20, Rated light current 5500 lm, rated power 34 W, 161 lm/W, light color 840, reference value UGR 17
