Highlights & Details
Ridi-Lamp LED-Pendant lamp 830, ws LENSES-PD #0627835
- Power= 26 W Total luminous flux= 4100 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 1
- Material of housing: Aluminium
- Housing color: White
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 4100000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Manufacturer-specific dimming: Yes
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes

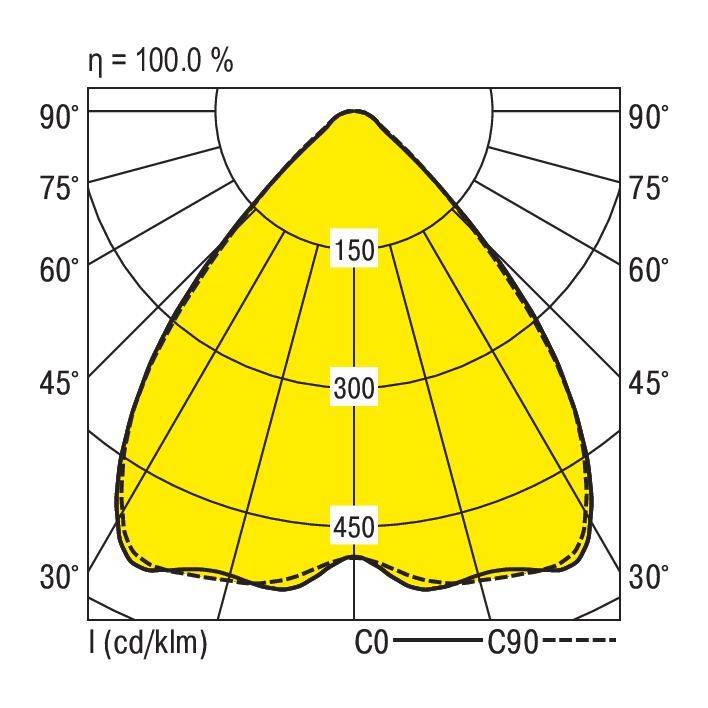

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Direct/indirect shares separately adjustable: No.
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 26 W
- Rated light current according to IEC 62722-2-1: 4100 lm
- Light color: White
- Light output 157 lm/W
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 18.2
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

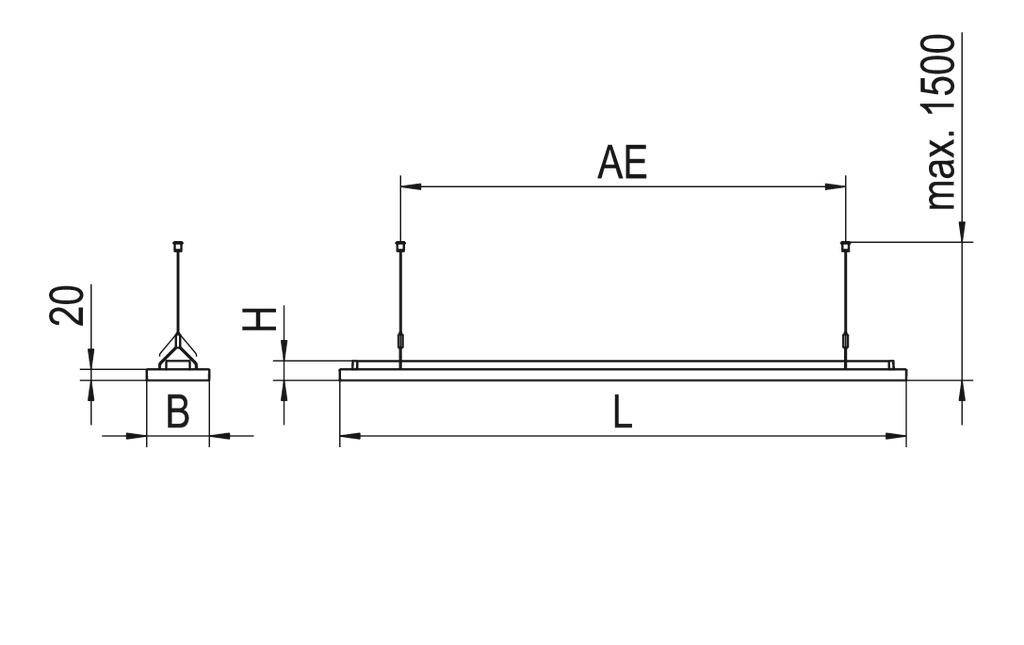

- Width 113 mm
- Height/depth 35 mm
- Length: 1021 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
26 W
26 W
- Light features
Incl. ballast
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 1021.00 x 113.00 x 35.00 mm
n.rel.
- Type
Rectangular
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
4100 lm
4100 lm
- Width
113.00 mm
- Height
35.00 mm
- Length
1021.00 mm
- Depth
35 mm
- Rated luminous flux
4100 lm
- Colour rendering index
80-89
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
Documents & Downloads
Datasheet
Datasheet 3140479 RIDI 627835 627835 LED pendant light LED (monochrome) Built-in LED 26 W White
User & Safety Instructions
User & Safety Instructions 3140479 RIDI 627835 627835 LED pendant light LED (monochrome) Built-in LED 26 W White
Description

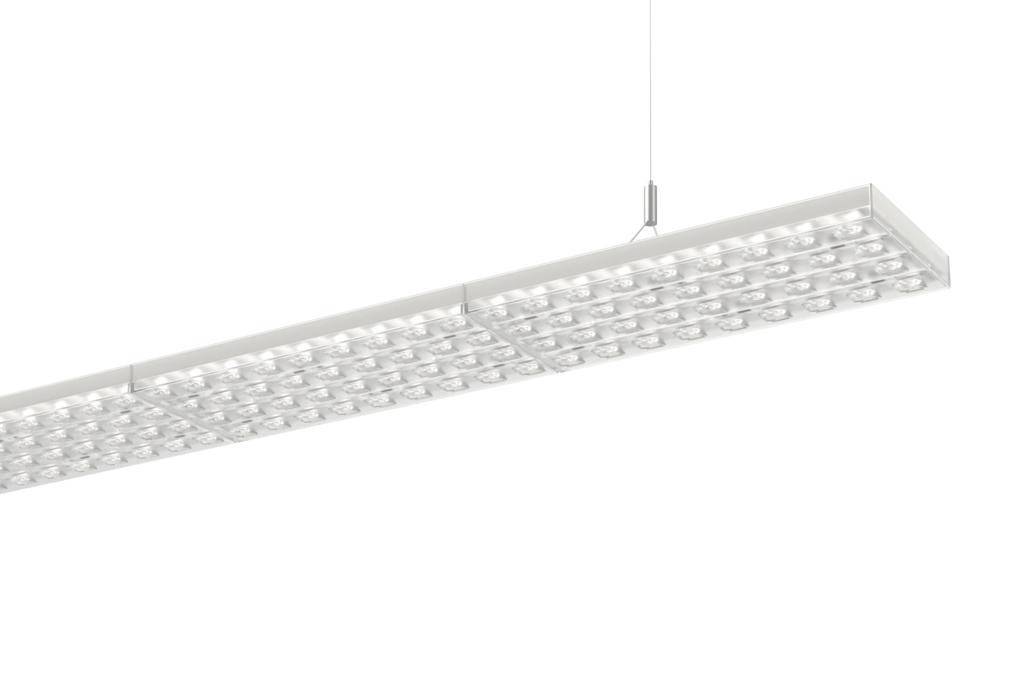

Suspended lamp LENSES, traffic white, similar to RAL 9016, xFlex, light emission direct, Broad radiation lens, length 1021 mm, width 113 mm, height 35 mm, protection class IP20, Rated light current 4100 lm, rated power 26 W, 157 lm/W, light color 830, reference value UGR 18
