Highlights & Details

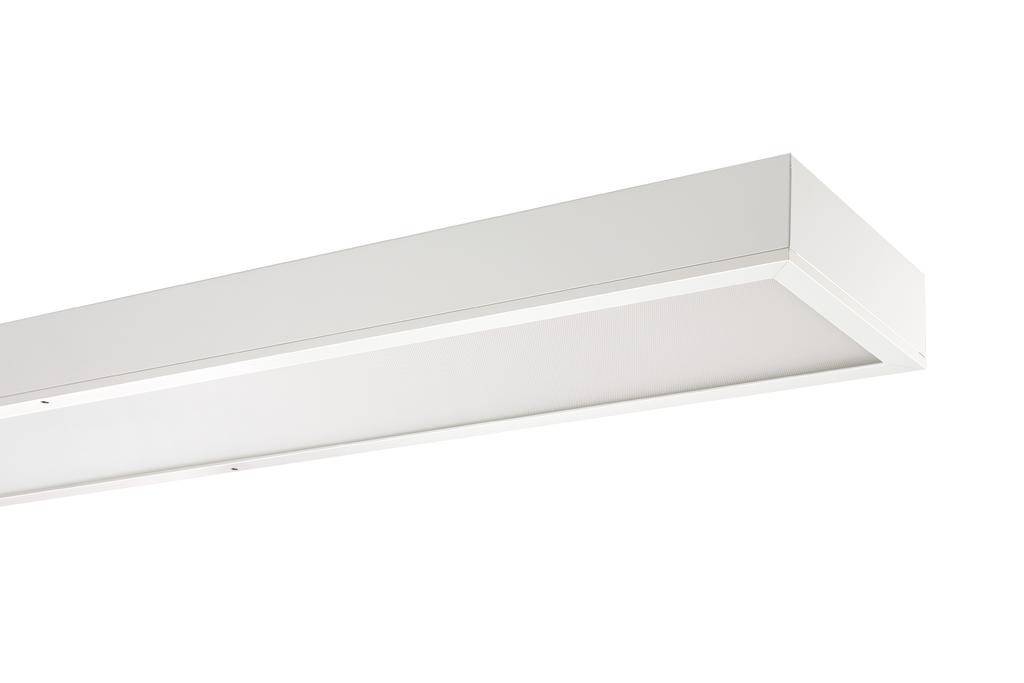

Ridi-lights LED-mounted light 840, DALI SHL2-AM1500 #0637791
- Power= 103 W
- Total luminous flux= 15770 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: Yes
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 3
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 15770000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.

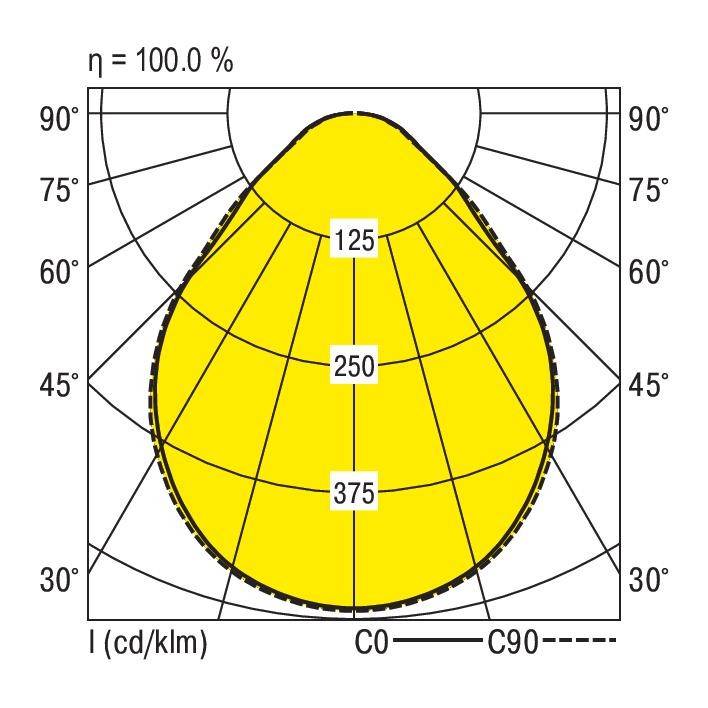

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 16
- Max. Number of lamps line circuit breakers C16: 27
- Protection class (IP) IP40
- Impact strength: IK05
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 102 W
- Light output 153 lm/W
- Rated light current according to IEC 62722-2-1: 15770 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 370 mm
- Height/depth 80 mm
- Length: 1500 mm
- Glare limiter (UGR): 21.8
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Dim
(L x W x H) 1500.00 x 370.00 x 80.00 mm
- Type
Rectangular
- Operating voltage
230 V
- No. of bulbs
3
- Product type
LED ceiling light
- Width
370.00 mm
- Bulb type
LED (monochrome)
- Height
80.00 mm
Built-in LED
- Length
1500.00 mm
- Depth
80 mm
103 W
- Light features
Dimmable
- Protection class
I
IP40
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
15770 lm
15770 lm
- Rated luminous flux
15770 lm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3141510 RIDI 637791 637791 LED ceiling light LED (monochrome) Built-in LED 103 W White
User & Safety Instructions
User & Safety Instructions 3141510 RIDI 637791 637791 LED ceiling light LED (monochrome) Built-in LED 103 W White
Description
Ceiling Light SHL, Annex, Traffic white, similar to RAL 9016, DALI-2, Light output direct, covering optically wide, length 1500 mm, width 370 mm, height 80 mm, Protection class IP40, shock resistance IK05, rated light current 15770 lm, rated power 103 W, 153 lm/W, Light color 840, reference value UGR 21, ball-protected
