Highlights & Details

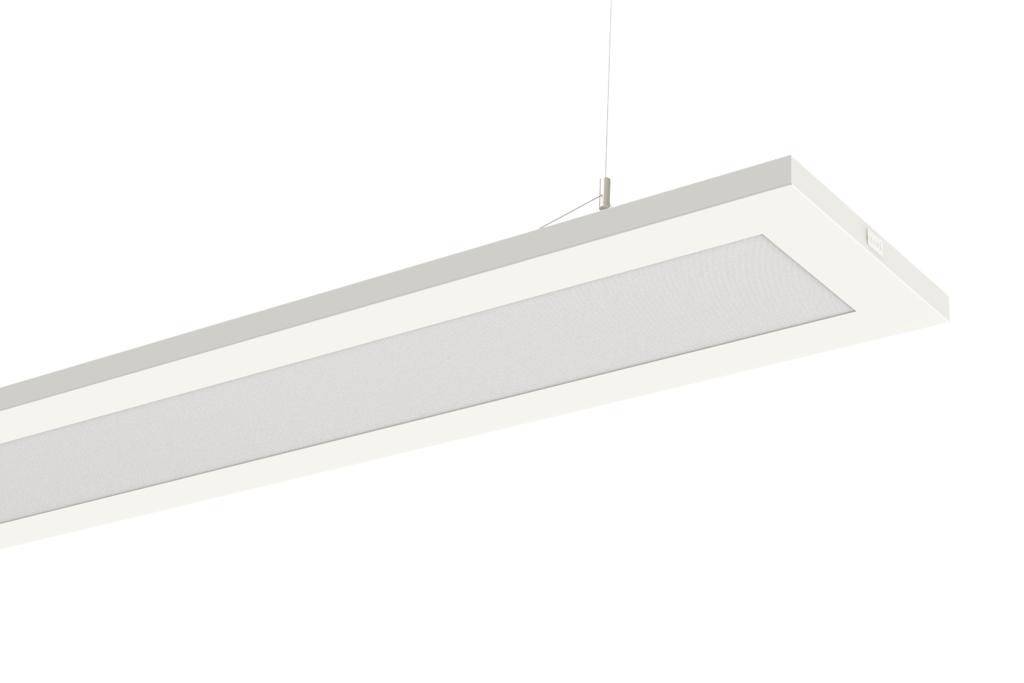

Ridi lamps LED pendant lamp 840, DALI, ws F-LINE-PDI1 #0637868
- Power= 37 W Total luminous flux= 5520 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Workplace training material - EN 12464-1: Yes
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 4
- Material of housing: Steel
- Housing color: White
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.

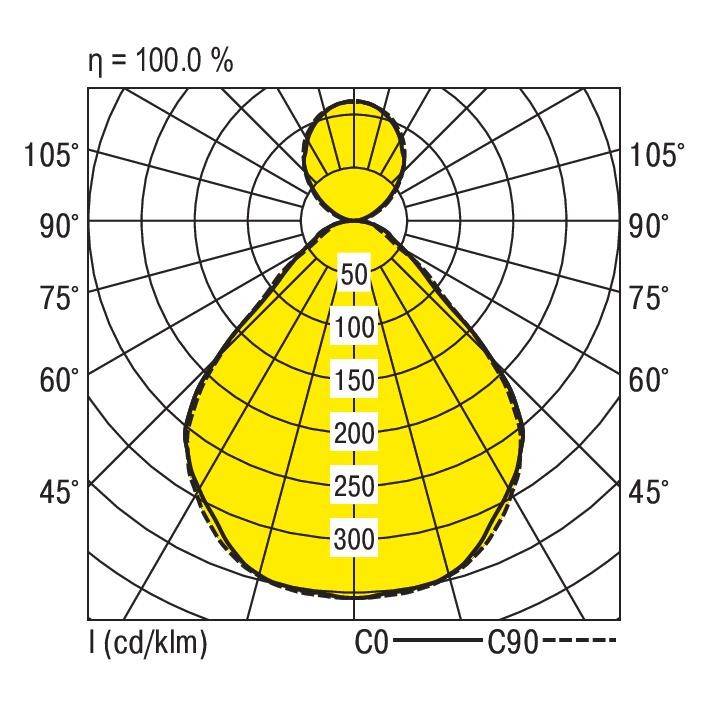

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Protection class (IP) IP20
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 37 W
- Rated light current according to IEC 62722-2-1: 5520 lm
- Light color: White
- Light output 149 lm/W
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 17.6
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Width 260 mm
- Height/depth 45 mm
- Length: 1220 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED pendant light
- Operating voltage
230 V
- No. of bulbs
4
- Bulb type
LED (monochrome)
Built-in LED
37 W
- Light features
Dimmable
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
- Dim
(L x W x H) 1220.00 x 260.00 x 45.00 mm
n.rel.
- Colour
White
- Light bulb included
Yes
4000 K
- Total luminous flux
5520 lm
5520 lm
- Width
260.00 mm
- Height
45.00 mm
- Length
1220.00 mm
- Depth
45 mm
- Rated luminous flux
5520 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3140815 RIDI 637868 637868 LED pendant light LED (monochrome) Built-in LED 37 W White
Description
Pendant lamp F-LINE, traffic white, similar to RAL 9016, DALI-2, light emission direct_indirect, Cover as wide beam as possible, length 1220 mm, width 260 mm, height 45 mm, protection class IP20, Shock resistance IK03, Rated light current 5520 lm, rated power 37 W, 149 lm/W, light color 840, Reference value UGR 17
