Highlights & Details
Ridi lamps pendant lamp for RIDI-Tube DALI 115/30DA-O F-LINE-R1X #0660240
- Power= 34 W Total luminous flux= 2770 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage 230..240 V
- Nominal current: 2772000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without

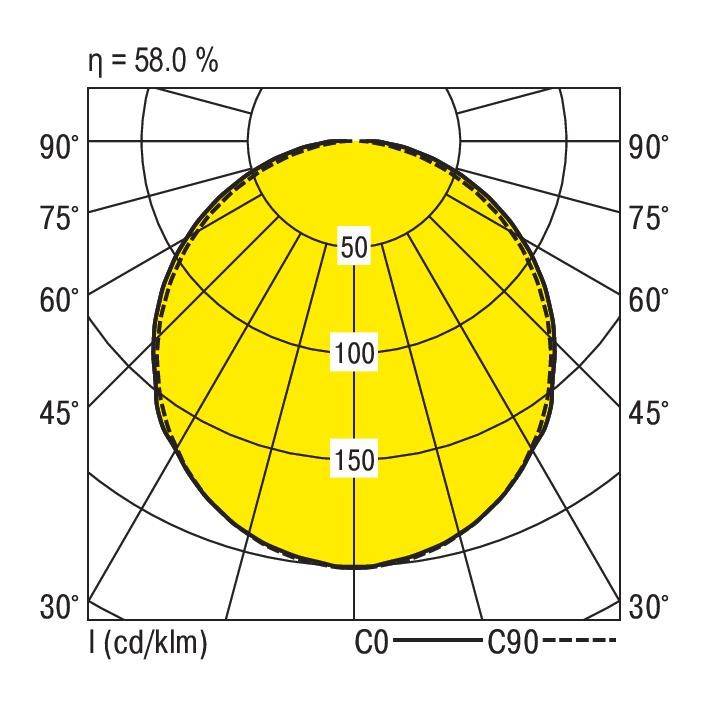

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Direct/indirect parts separately adjustable: Yes
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 34 W
- Rated light current according to IEC 62722-2-1: 2770 lm
- Light color: White
- Light output 81 lm/W
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Glare limiter (UGR): 25.1
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Width 150 mm
- Height/depth 45 mm
- Length: 1253 mm
- With suspension: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: No.
- Product type
Pendant light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
30 W
34 W
- Light features
Incl. ballast
Dimmable
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
- Dim

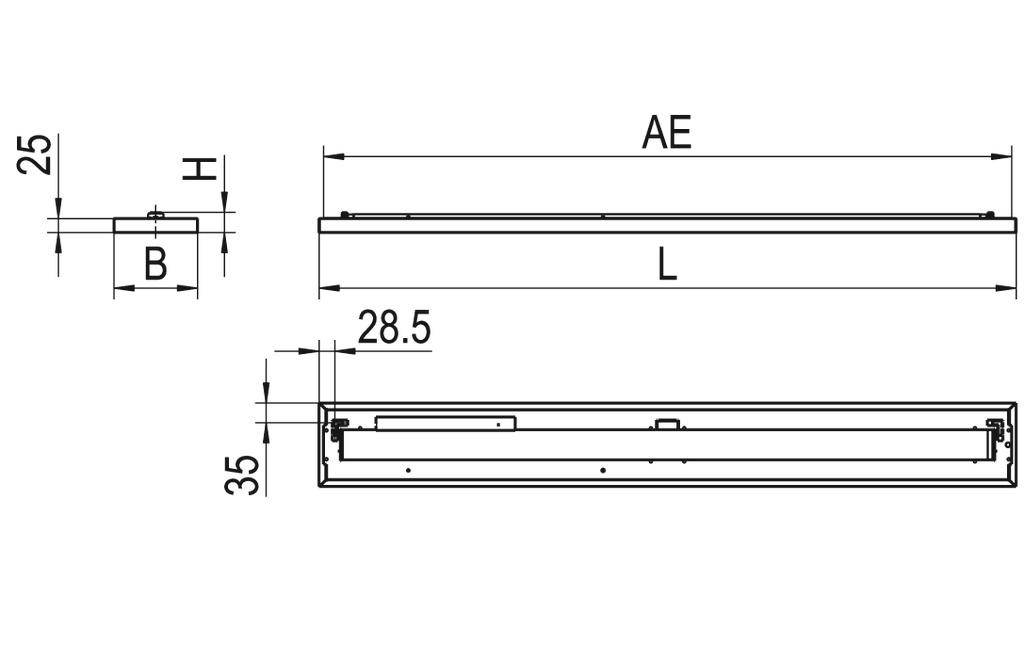

(L x W x H) 1253.00 x 150.00 x 45.00 mm
n.rel.
- Colour
White
- Light bulb included
No
4000 K
- Total luminous flux
2770 lm
2770 lm
- Width
150.00 mm
- Height
45.00 mm
- Length
1253.00 mm
- Depth
45 mm
- Rated luminous flux
2770 lm
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145695 RIDI 660240 660240 Pendant light LED (monochrome) 34 W White
User & Safety Instructions
User & Safety Instructions 3145695 RIDI 660240 660240 Pendant light LED (monochrome) 34 W White
Description

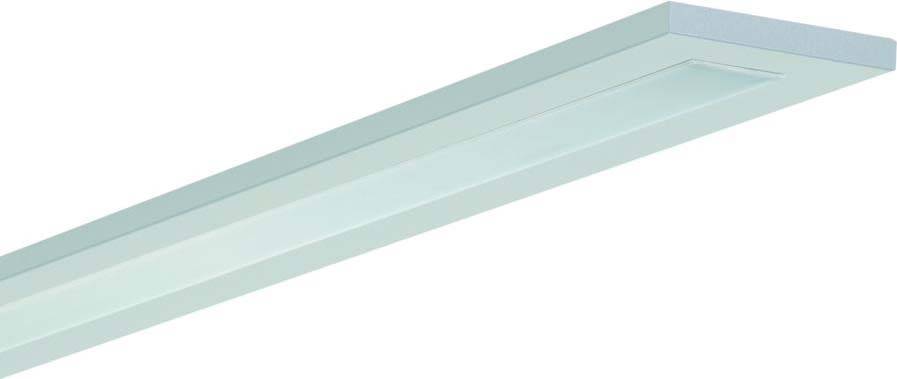

Suspended lamp F-LINE, white, DALI, direct light output, extremely wide beam cover, length 1253 mm, width 150 mm, height 45 mm, protection class IP20, suitable for R-TUBE, reference value UGR 25
