Buy Rigel Medical Rigel 288 Plus Safety tester Calibrated to (ISO standards) VDE standard 0701-0702

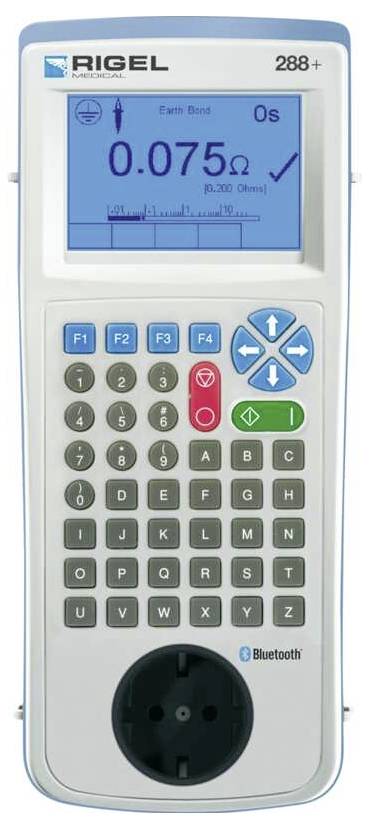

'RIGEL 288+' portable electrical safety tester displaying an Earth Bond resistance measurement of 0.075 Ohms on its screen.

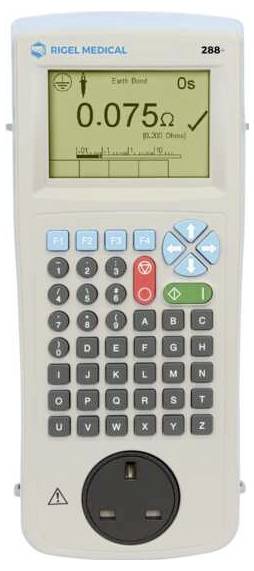

Handheld medical device with display showing 'Earth Bond' and '0.075Ω'. Features numerical keypad, function keys, and UK socket outlet.

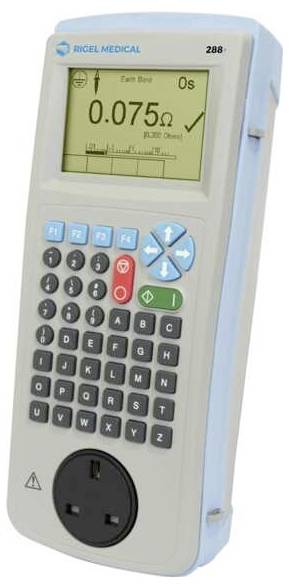

A handheld electrical testing device displaying a measurement of 0.075 ohms on the screen, with numerical keypad and control buttons.

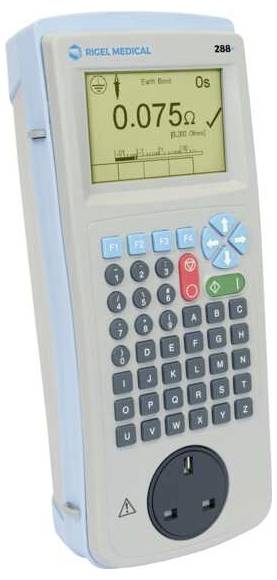

Handheld digital earth resistance tester showing '0.075Ω' on the screen, equipped with numeric keypad and various function buttons.

A white and blue electronic device with ports and regulatory symbols on its surface, used for electrical connections and compliance labeling.

Back view of a medical device with multiple input/output ports, including a power connection and distinct round connectors, labeled 'NIDEK MEDICAL 299'.

Portable electronic device with buttons and a light blue exterior.

1/7

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 7,822.69 / piece)

€ 7,822.69

plus VAT.

Report legal concerns

Highlights & Details

Small and flexible electrical safety analyzer with battery-operated earthing, insulation and leakage tests

All-in-one compliance with international standards, including IEC/EN 62353, AAMI/IEC/EN 60601-1, IEC 61010, NFPA-99, AS/ NZ 3551
Built-in electronic data storage and automated testing
User-definable test routines
Direct printing via Bluetooth connectivity
Battery-operated leakage, insulation and ground/grounding tests
50/100/250/500VDC insulation testing allows testing of devices operating with 24VDC and 48VDC up to 253VAC
Automatic secondary verification
Precise high current, low energy earth tests
Available in a range of network configurations

Technical specifications

• IEC 60601-1
• IEC 62353

Product type: Safety tester

: ISO standards

Dim: (L x W x H) 270 x 110 x 75 mm

Weight: 1600 g

: IP40

Display type: Digital (LCD)

Width: 110 mm

Height: 75 mm

Length: 270 mm

Test procedure: automated
manual

Voltage supply: 230 V/AC

Memory (space): 5000

Memory: Yes

Type: Rigel 288 Plus

VDE standard: 0701-0702

Documents & Downloads

Datasheet

Datasheet 3473936 Rigel Medical Rigel 288 Plus Safety tester Calibrated to (ISO standards) VDE standard 0701-0702

User & Safety Instructions

User & Safety Instructions 3473936 Rigel Medical Rigel 288 Plus Safety tester Calibrated to (ISO standards) VDE standard 0701-0702

Description

Small and flexible electrical safety tester with battery for ground fault, insulation and leakage testing. The electrical safety analyzer Rigel 288+ offers an exact and fast solution for fulfilling international and local safety standards. With additional 50VDC and 100VDC insulation tests that complement the 250VDC and 500VDC tests, the 288+ meets the growing requirements for testing 24 VDC and 48 VDC equipment, such as operating tables, luminaires and mobile X-ray equipment.

By combining automatic and manual test sequences, data storage and direct printing, the Rigel 288+ combines automatic and manual test procedures, secondary earthing paths, which alert the user to invalid measurement values, ensuring correct and accurate test results at all times.

Automatic and manual test sequences make the Rigel 288+ one of the most compact overall solutions in electrical safety testers. Several international standards, such as IEC / 62353, 60601-1, NFPA-99 are covered with this device.

This text is machine translated.

Scope of delivery

Application part adapter (10 pieces)
Application part box (10 connections)
Earth test probe with clip
Earth test lead
Calibration certificate
Bag for measuring device and accessories

Hints

Test device for the safety inspection of medical electronic devices
