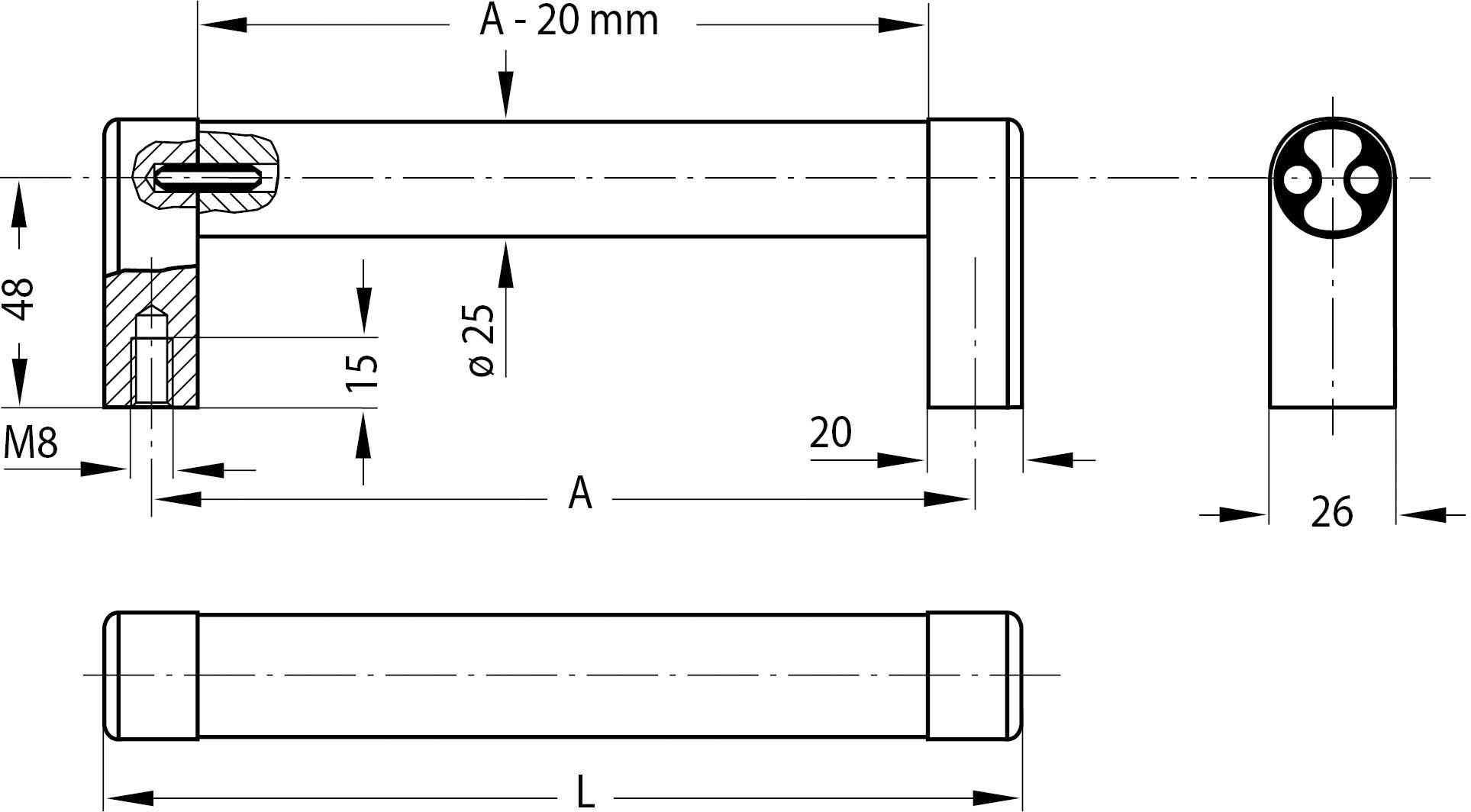

Image similar
Rohde A3-25.200.S04 Rod handle Black (L x W x H) 220 x 25 x 61 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rod handle
Material
Aluminium
Dim
(L x W x H) 220 x 25 x 61 mm
Width
25 mm
Height
61 mm
Datasheet (PDF)
Highlights & Details
Rohde pipe handle d.series A3,together, pluggable/leg + profile made of, aluminum, black anodized
- Content: 1 pcs.
Technical specifications
- Version: A
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black side and bridge
- Mounting method: Internal thread
- Series name: A3-25
- Handle type (series): Grip series A3
- Hole diameter: M8
- Dim
(L x W x H) 220 x 25 x 61 mm
- Product type
Rod handle
- Material
Aluminium
- Width
25 mm
- Height
61 mm
- Length
220 mm
- Hole spacing
200 mm
- Factory colour
Black
- Content
1 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
A3-25.200.S04
Documents & Downloads
Datasheet
Datasheet 2343393 Rohde A3-25.200.S04 Rod handle Black (L x W x H) 220 x 25 x 61 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343393 Rohde A3-25.200.S04 Rod handle Black (L x W x H) 220 x 25 x 61 mm 1 pc(s)
Description
Push-together tube handles.
Type A:
Handle legs and connection profiles made of extruded aluminum AlMgSi 0.5.
Clamping sleeves made of stainless steel.
Handle legs matt-gloss anodized, connection profiles fine-polished and anodized. Handle design in different color combinations.
Type B:
Handle legs made of extruded aluminum AlMgSi 0.5; matt-gloss black anodized.
Connection pipe ø 25 x 2 mm made of stainless steel. Clamping parts made of stainless steel or aluminum.
This text is machine translated.
Type A:
Handle legs and connection profiles made of extruded aluminum AlMgSi 0.5.
Clamping sleeves made of stainless steel.
Handle legs matt-gloss anodized, connection profiles fine-polished and anodized. Handle design in different color combinations.
Type B:
Handle legs made of extruded aluminum AlMgSi 0.5; matt-gloss black anodized.
Connection pipe ø 25 x 2 mm made of stainless steel. Clamping parts made of stainless steel or aluminum.
This text is machine translated.
