Rohde EC-02.140.84 Case handle Black (L x W x H) 158 x 26 x 42 mm 10 pc(s)
EAN:
Part number:
Item no:
Product type
Case handle
Material
Polyamide
Dim
(L x W x H) 158 x 26 x 42 mm
Width
26 mm
Height
42 mm
Datasheet (PDF)
Highlights & Details
Rohde handle series Economy Plus made of, polyamide PA6, black RAL 9005, without mounting material
- Set of 10.
Technical specifications
- Material (material): PA6
- Manufacturer color: Black
- Mounting method: c:Round bore
- Series name: EC-02
- Handle type (series): Economy plus grip series EC
- Hole diameter: M6
- Dim
(L x W x H) 158 x 26 x 42 mm
- Product type
Case handle
- Material
Polyamide
- Width
26 mm
- Height
42 mm
- Length
158 mm
- Hole spacing
140 mm
- Factory colour
Black
- Content
10 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
EC-02.140.84
Documents & Downloads
Datasheet
Datasheet 2343536 Rohde EC-02.140.84 Case handle Black (L x W x H) 158 x 26 x 42 mm 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2343536 Rohde EC-02.140.84 Case handle Black (L x W x H) 158 x 26 x 42 mm 10 pc(s)
Description

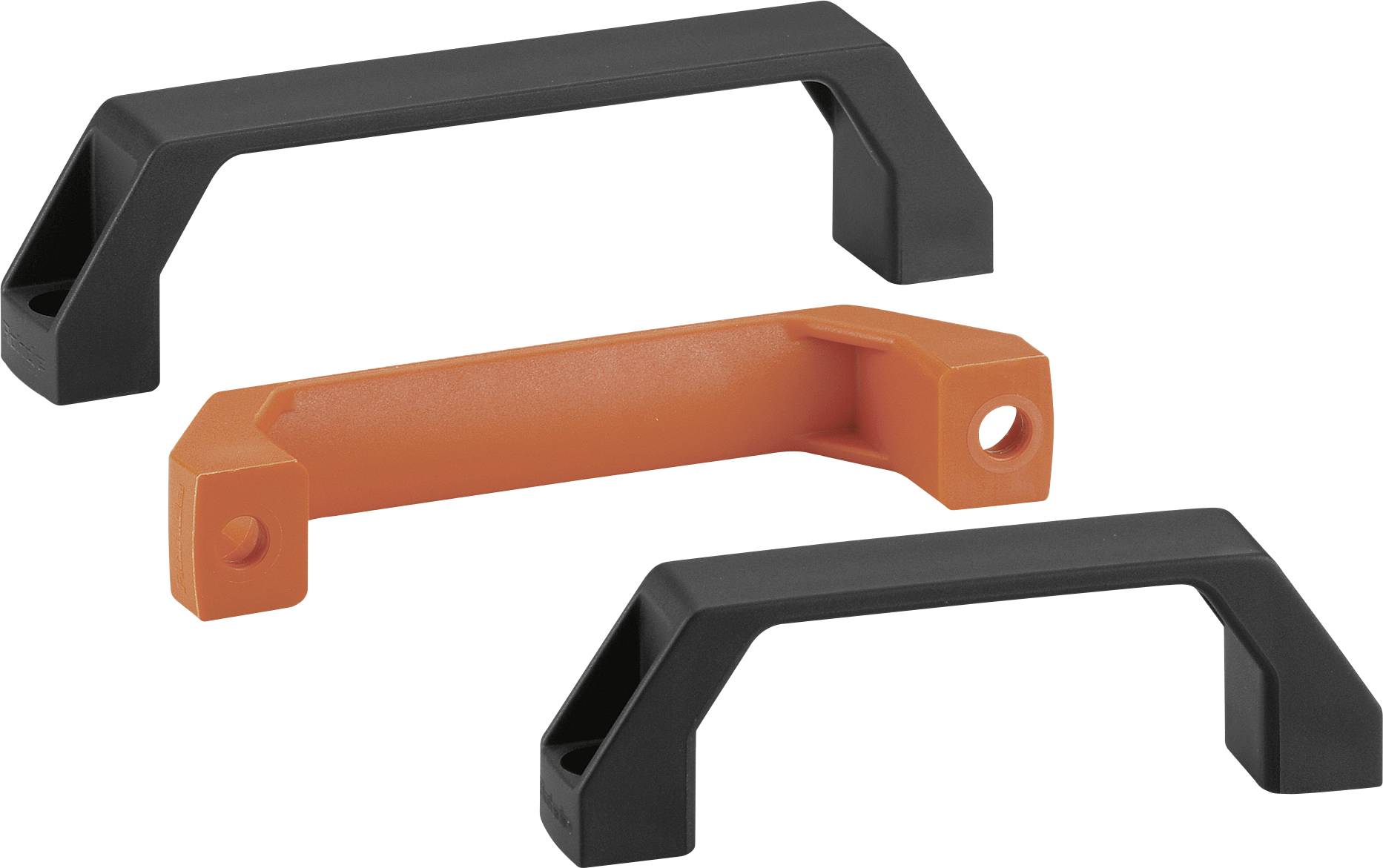

Grips made of polyamide PA 6,
glass reinforced with ball, black,
Similar to RAL 9005, or orange,
Similar to RAL 2009, semi-matt with
Fine structure. Holes for
Socket head screws M8 DIN 912
Or countersunk screws M6
DIN 7991
