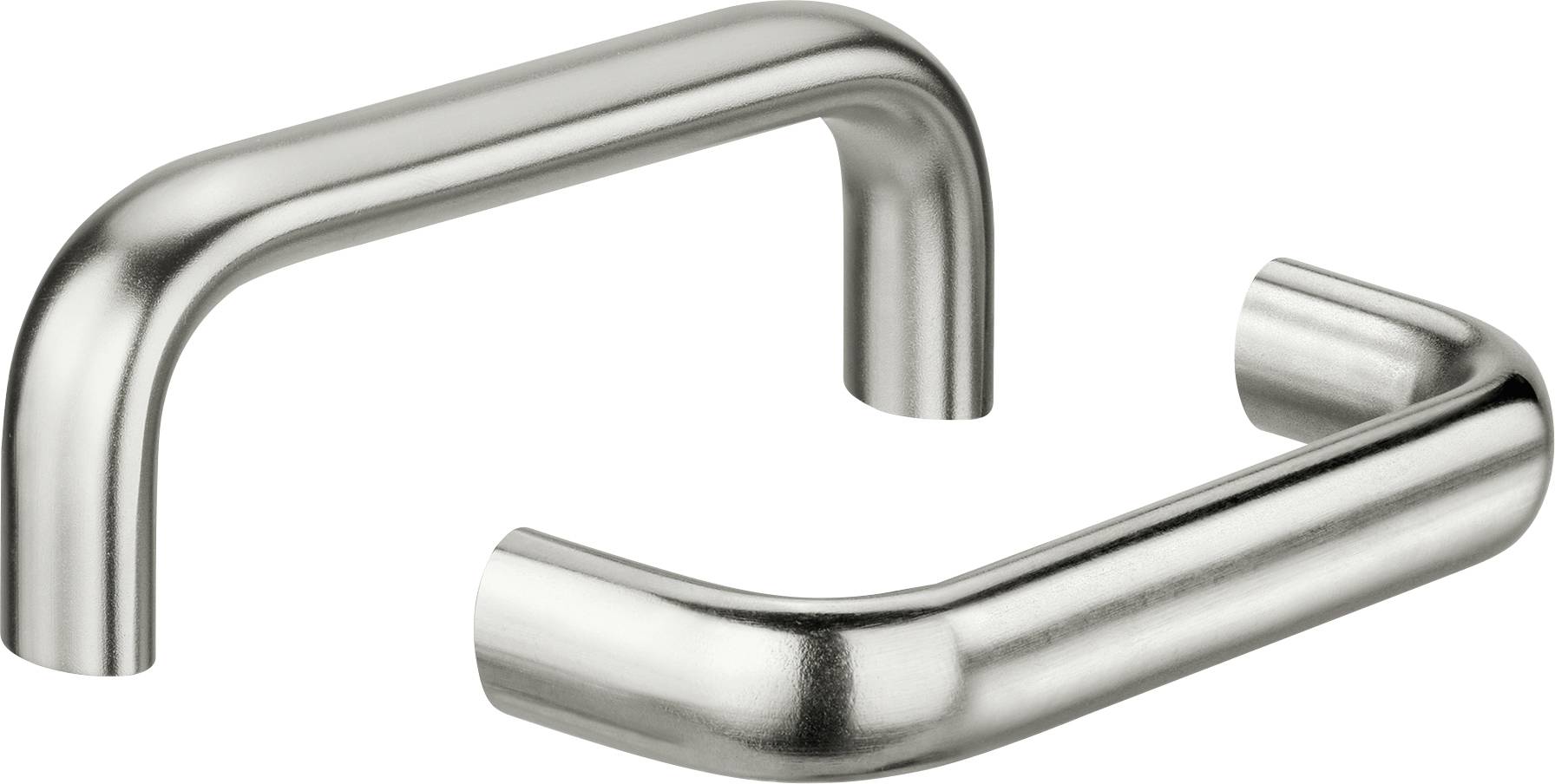

Rohde EO-20.180.31 Case handle Stainless steel (L x W x H) 193 x 20 x 50 mm 2 pc(s)
EAN:
Part number:
Item no:
Product type
Case handle
Material
Steel
Dim
(L x W x H) 193 x 20 x 50 mm
Width
20 mm
Height
50 mm
Datasheet (PDF)
Highlights & Details
Rohde stainless steel handle, made of oval profile 1.4307, semi-gloss sliding-polished
- Content 2 pcs.
Technical specifications
- Version: A
- Surface treatment: Ground, brushed
- Material (material): 1.4307 (304L)
- Manufacturer's color: Brushed stainless steel matt-gloss
- Mounting method: Internal thread
- Serial name: EO-20
- Grip type (series): Stainless steel grip series EO
- Hole diameter: M6

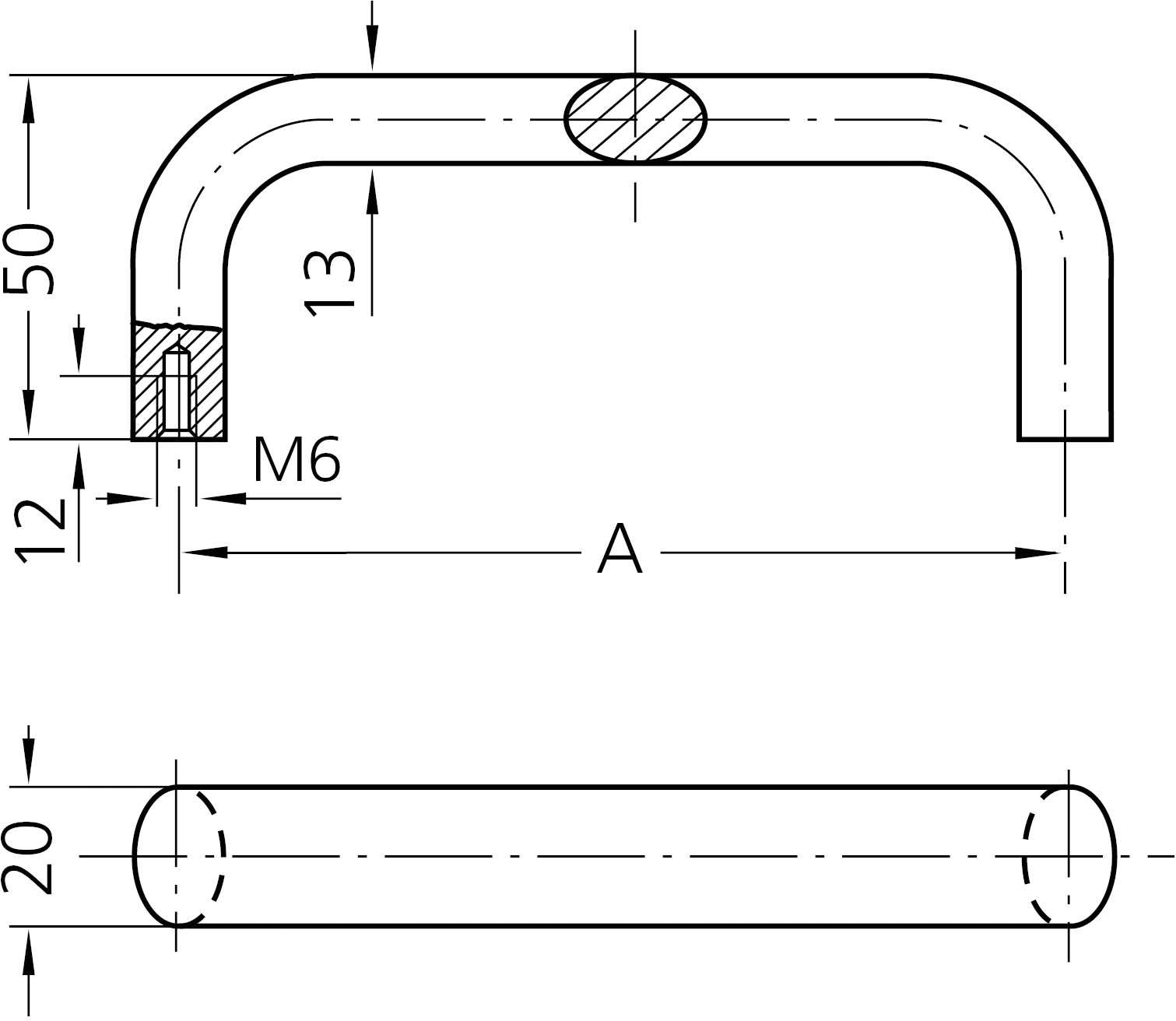

- Dim
(L x W x H) 193 x 20 x 50 mm
- Product type
Case handle
- Material
Steel
- Width
20 mm
- Height
50 mm
- Length
193 mm
- Hole spacing
180 mm
- Factory colour
Stainless steel
- Content
2 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
EO-20.180.31
Documents & Downloads
Datasheet
Datasheet 2343574 Rohde EO-20.180.31 Case handle Stainless steel (L x W x H) 193 x 20 x 50 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343574 Rohde EO-20.180.31 Case handle Stainless steel (L x W x H) 193 x 20 x 50 mm 2 pc(s)
Description
Material and surface:
Oval profile stainless steel made of two
Different types of stainless steel
Material 1.4307 or
1.4404.
Type A:
Ground and ground surface
brushed matt finish.
Type B:
Ground, sanded surface
and matt-gloss electro-polished.
Design C:
Ground surface, brushed
and electropolished.
This text is machine translated.
Oval profile stainless steel made of two
Different types of stainless steel
Material 1.4307 or
1.4404.
Type A:
Ground and ground surface
brushed matt finish.
Type B:
Ground, sanded surface
and matt-gloss electro-polished.
Design C:
Ground surface, brushed
and electropolished.
This text is machine translated.
