Rohde KM-48.115.9005 Dimple Black (L x W x H) 120 x 35.5 x 55 mm 3 pc(s)
EAN:
Part number:
Item no:
Product type
Dimple
Material
Polyamide
Dim
(L x W x H) 120 x 35.5 x 55 mm
Width
35.5 mm
Height
55 mm
Datasheet (PDF)
Highlights & Details
Rohde plastic-hollow grip, black PA6, incl. mounting material
- Content: 3 pieces
Technical specifications
- Material (material): PA6
- Manufacturer color: Black
- Mounting method: g:Other
- Serial name: KM-48
- Handle type (series): Handle series KM.
- Hole diameter:
- Dim
(L x W x H) 120 x 35.5 x 55 mm
- Product type
Dimple
- Material
Polyamide
- Width
35.5 mm
- Height
55 mm
- Length
120 mm
- Factory colour
Black
- Content
3 pc(s)
- Max. load capacity
1000 N
- Type
KM-48.115.9005
Documents & Downloads
Datasheet
Datasheet 2343725 Rohde KM-48.115.9005 Dimple Black (L x W x H) 120 x 35.5 x 55 mm 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2343725 Rohde KM-48.115.9005 Dimple Black (L x W x H) 120 x 35.5 x 55 mm 3 pc(s)
Description
Flush-mounted hollow grip for
Lift or drag.
Material and surface:
ABS, black, similar to RAL 9005,
With fine structure in the viewing area.
Design features:
One-sided, tool-free single-hole installation
by self-locking
Recessed grip.

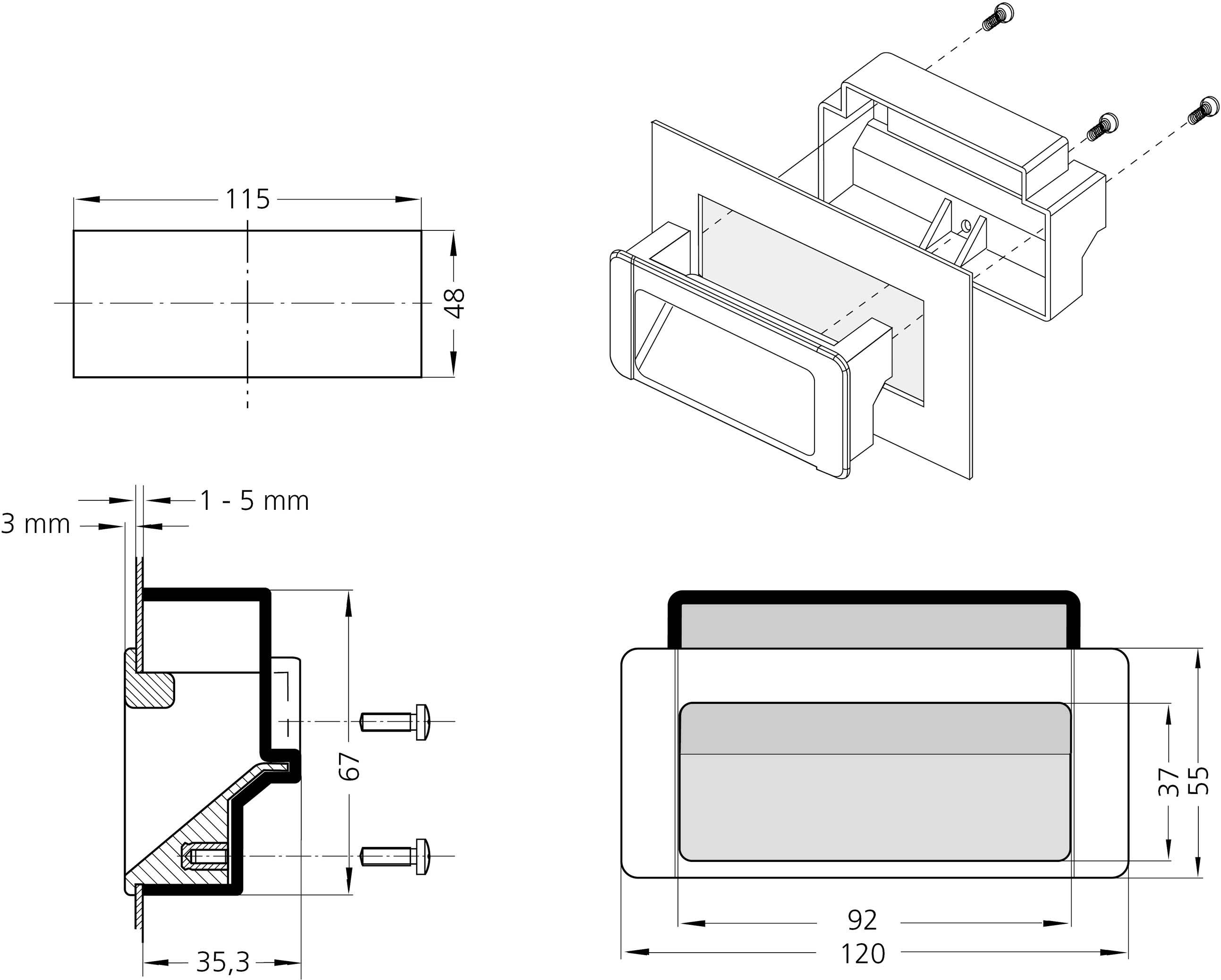

Installation:
Hollow grip in the cut-out
Position so that the cutting edge
In the gap behind
The visible surface of the handle.
Then the bottom edge of the handle
Press in the cut-out until
it clicks into place.
This text is machine translated.
Lift or drag.
Material and surface:
ABS, black, similar to RAL 9005,
With fine structure in the viewing area.
Design features:
One-sided, tool-free single-hole installation
by self-locking
Recessed grip.
Installation:
Hollow grip in the cut-out
Position so that the cutting edge
In the gap behind
The visible surface of the handle.
Then the bottom edge of the handle
Press in the cut-out until
it clicks into place.
This text is machine translated.
