Name: Rohde MO-26.F160.01 Machine handle Silver (L x W x H) 177 x 26 x 55 mm 2 pc(s)
Brand: Rohde
SKU: 2343947

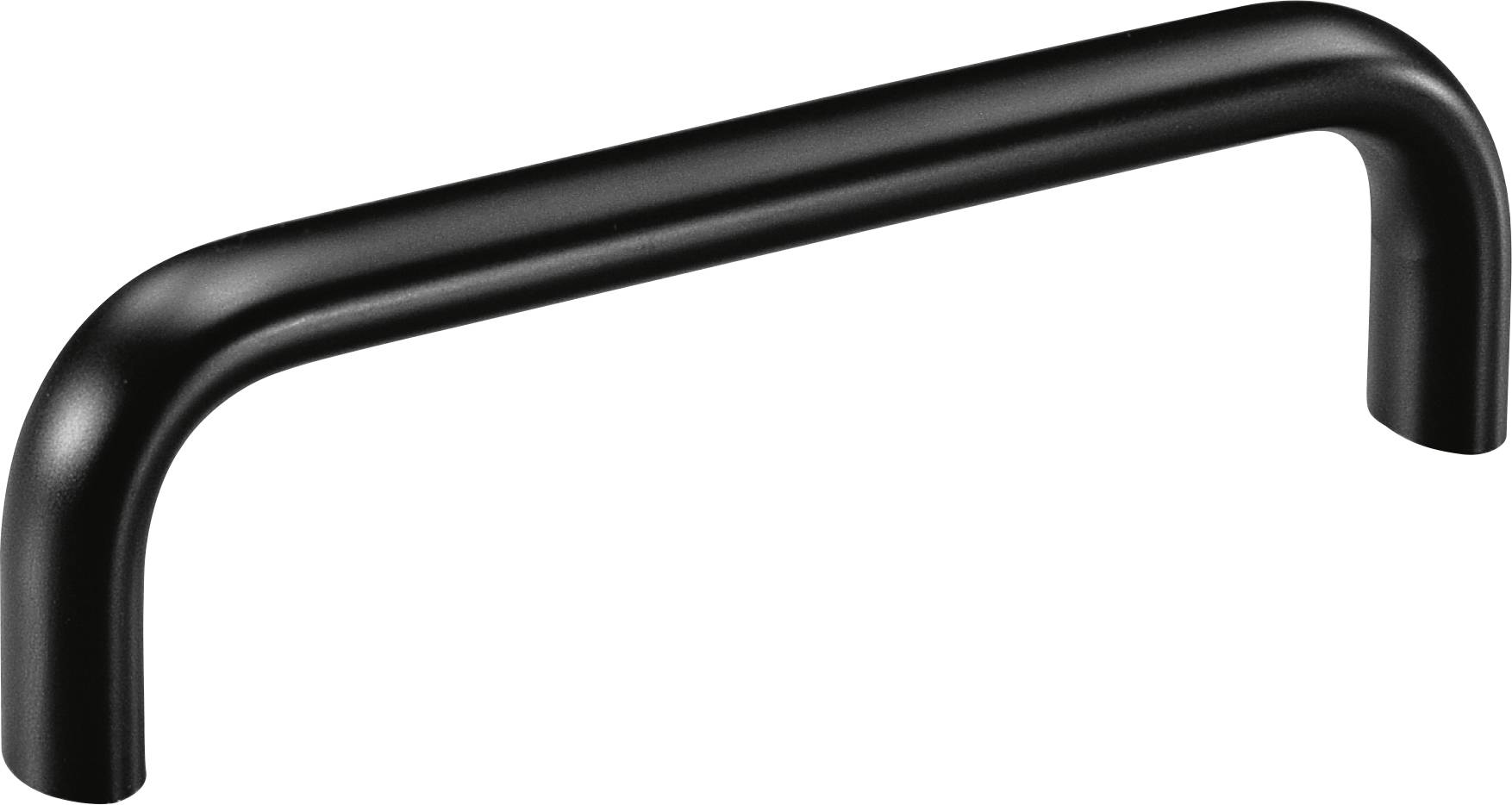

The black door handle with rounded corners provides easy grip and is suitable for cupboards or drawers.

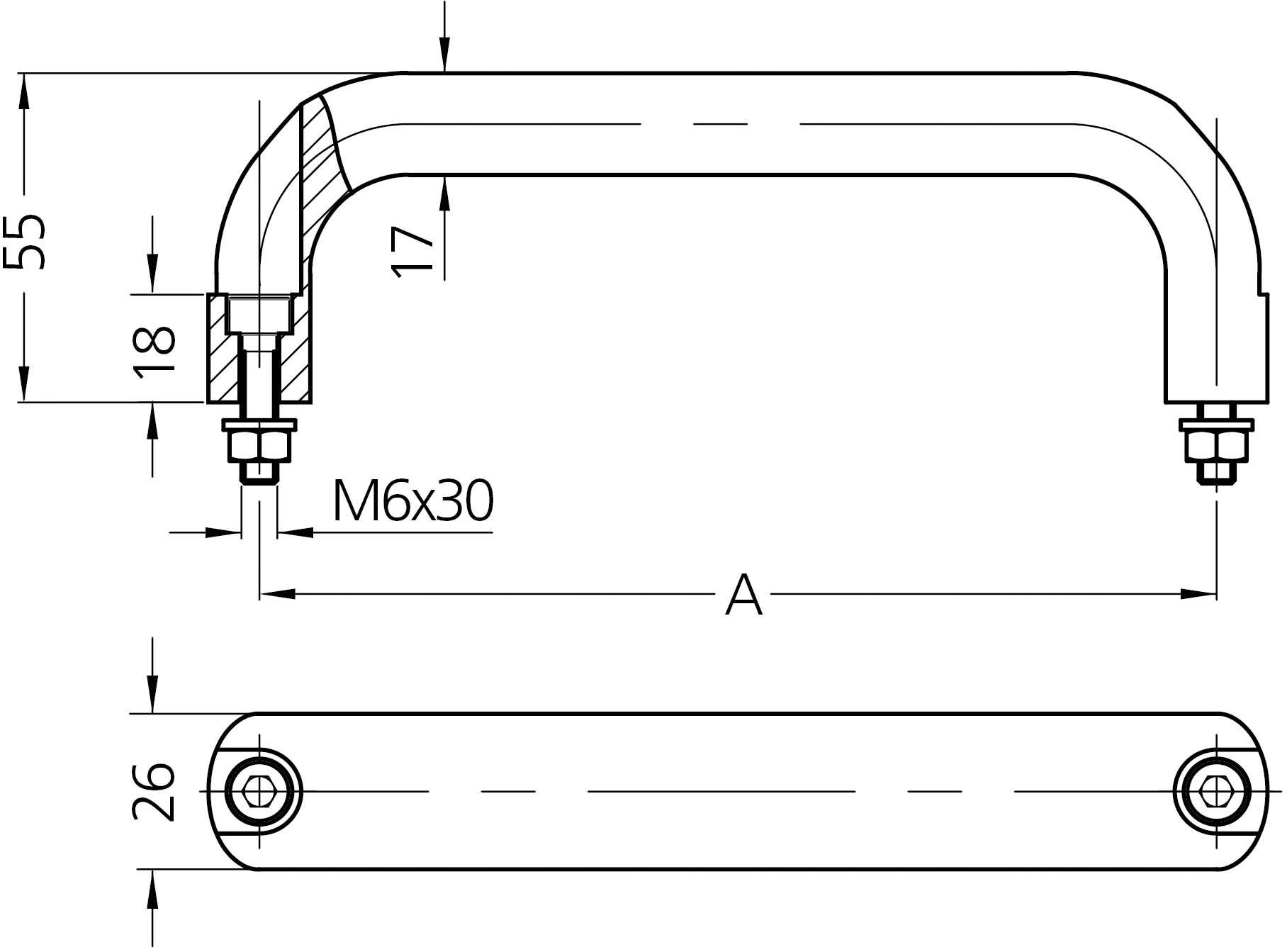

Technical Drawing of a U-shaped Handle with Dimensions: 55 mm High, 26 mm Base Width, 18 mm Bolt Spacing, M6x30 Screws.

1/2

Image similar

Product type

Machine handle

Material

Aluminium

Dim

(L x W x H) 177 x 26 x 55 mm

Width

26 mm

Height

55 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Rohde machine handle made of oval aluminum., for front mounting, anodized in nature

Content 2 pcs.

Technical specifications

Surface treatment: Anodized
Material (material): AlMgSi 0.5
Manufacturer color: silver
Mounting method: c:Round bore
Series name: MON-26
Handle type (series): Grip series MO
Hole diameter: M6

Dim: (L x W x H) 177 x 26 x 55 mm

Product type: Machine handle

Material: Aluminium

Width: 26 mm

Height: 55 mm

Length: 177 mm

Hole spacing: 160 mm

Factory colour: Silver

Content: 2 pc(s)

Hole Ø: 6 mm

Max. load capacity: 1000 N

Type: MO-26.F160.01
