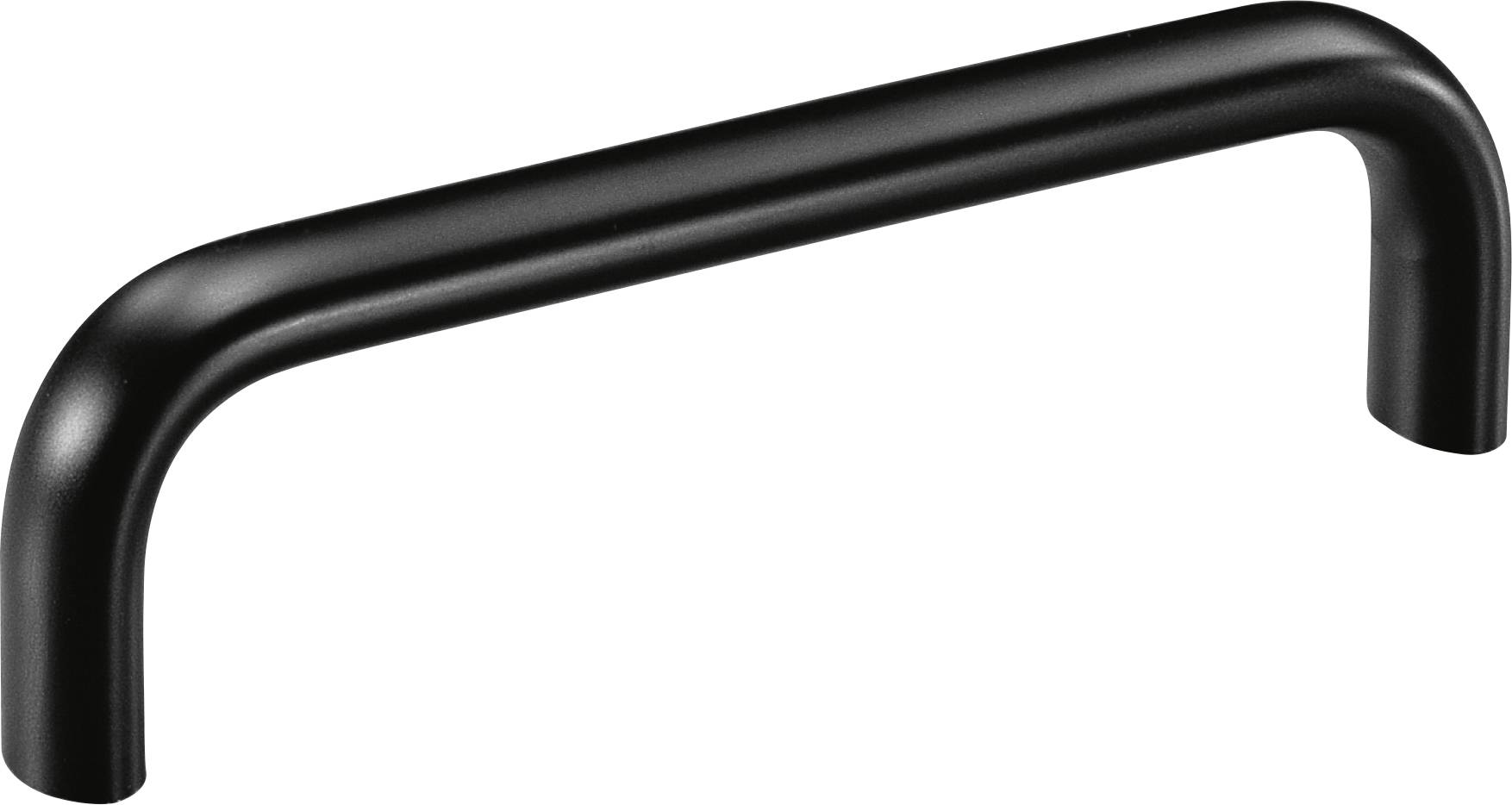

Image similar
Rohde MO-26.F192.01 Machine handle Silver (L x W x H) 209 x 26 x 55 mm 2 pc(s)
EAN:
Part number:
Item no:
Product type
Machine handle
Material
Aluminium
Dim
(L x W x H) 209 x 26 x 55 mm
Width
26 mm
Height
55 mm
Datasheet (PDF)
Highlights & Details
Rohde machine handle made of oval aluminum., for front mounting, anodized in nature
- Content 2 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: silver
- Mounting method: c:Round bore
- Series name: MON-26
- Handle type (series): Grip series MO
- Hole diameter: M6

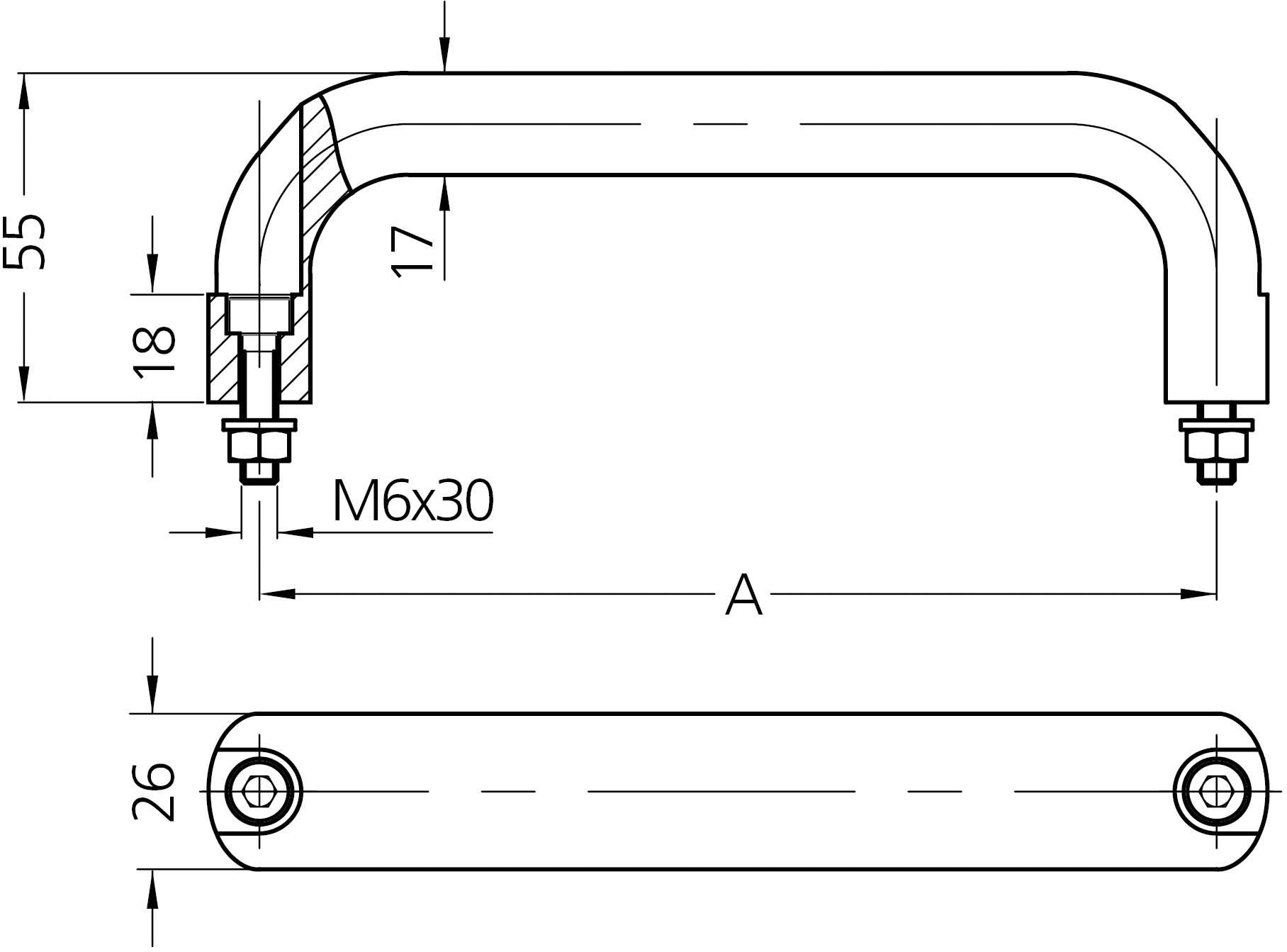

- Dim
(L x W x H) 209 x 26 x 55 mm
- Product type
Machine handle
- Material
Aluminium
- Width
26 mm
- Height
55 mm
- Length
209 mm
- Hole spacing
192 mm
- Factory colour
Silver
- Content
2 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
MO-26.F192.01
Documents & Downloads
Datasheet
Datasheet 2343951 Rohde MO-26.F192.01 Machine handle Silver (L x W x H) 209 x 26 x 55 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343951 Rohde MO-26.F192.01 Machine handle Silver (L x W x H) 209 x 26 x 55 mm 2 pc(s)
Description
For machine, device and
Apparatus construction in two surface qualities.
For screw mounting
from front or rear.
Material and surface:
Oval profile aluminum
AlMgSi 0.5.
Standard design:
Surface ground, matt
and natural or black
anodized. Powder-coated with fine structure
in silver or
Black.
Semi-gloss design:
Surface glass-ball-blasted,
satin and natural colors or
black anodized.
This text is machine translated.
Apparatus construction in two surface qualities.
For screw mounting
from front or rear.
Material and surface:
Oval profile aluminum
AlMgSi 0.5.
Standard design:
Surface ground, matt
and natural or black
anodized. Powder-coated with fine structure
in silver or
Black.
Semi-gloss design:
Surface glass-ball-blasted,
satin and natural colors or
black anodized.
This text is machine translated.
Scope of delivery
- Delivery scope
- Type MO-20.F and MO-26.F
- Including socket head screws
- With hexagon socket
- DIN 912, nuts DIN 934
- And washers DIN 125.
