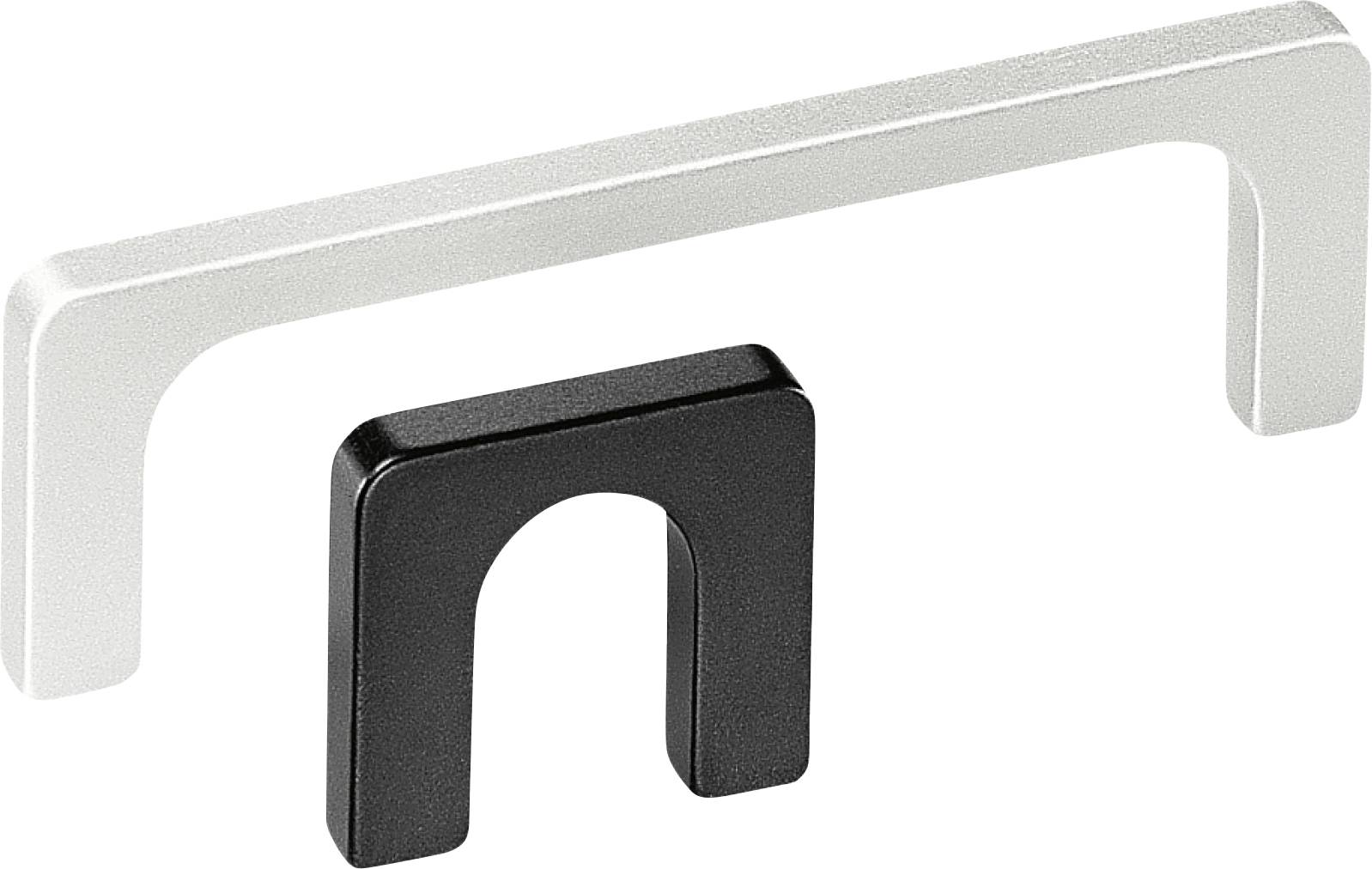

Image similar
Rohde R2-08.180.04 Handle Black (L x W x H) 192 x 8 x 40 mm 1 Set
EAN:
Part number:
Item no:
Product type
Handle
Material
Aluminium

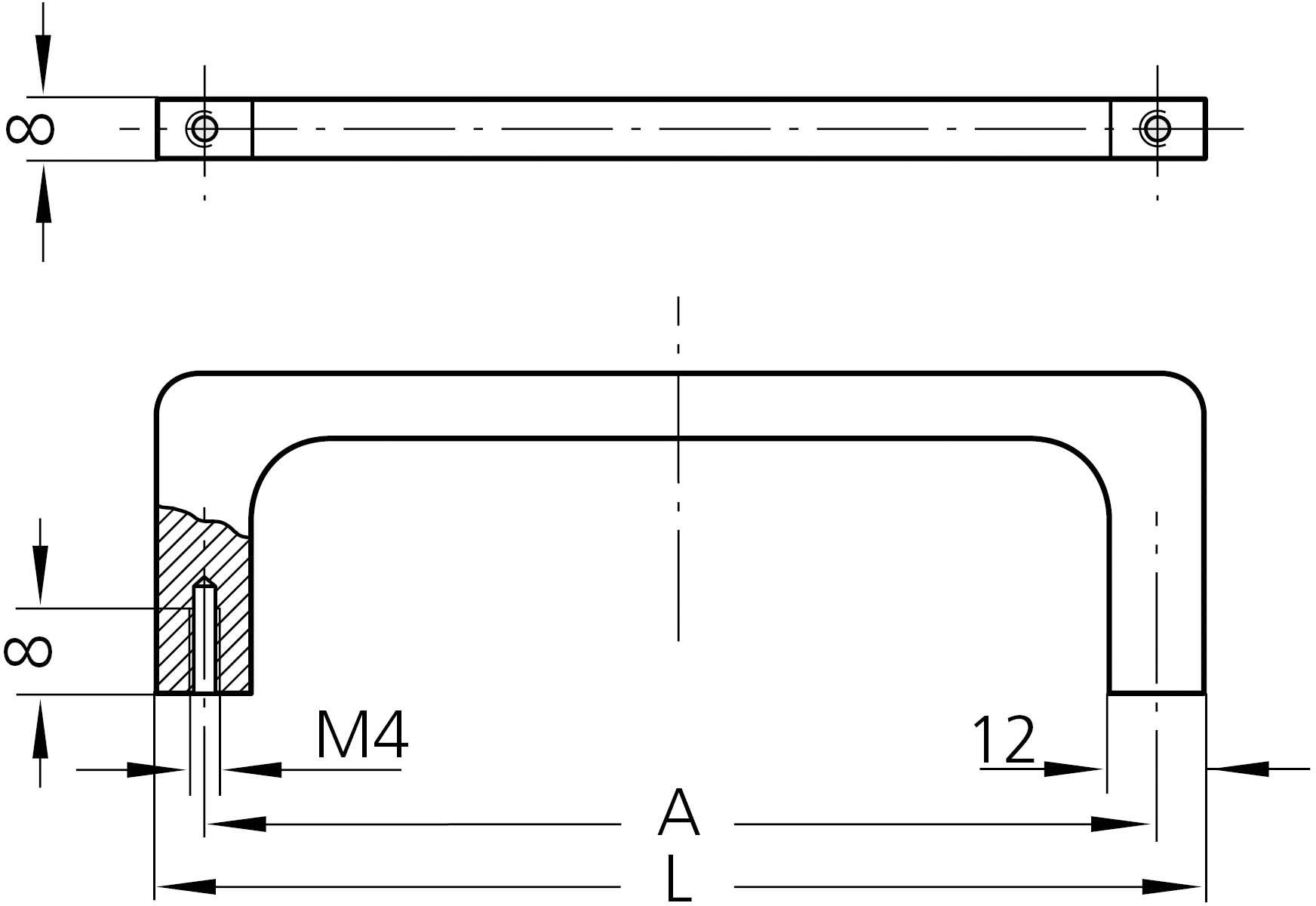

Dim
(L x W x H) 192 x 8 x 40 mm
Width
8 mm
Height
40 mm
Datasheet (PDF)
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: Internal thread
- Series name: R2-08
- Handle type (series): Grip series R
- Hole diameter: M4
- Dim
(L x W x H) 192 x 8 x 40 mm
- Product type
Handle
- Material
Aluminium
- Width
8 mm
- Height
40 mm
- Length
192 mm
- Hole spacing
180 mm
- Factory colour
Black
- Content
1 Set
- Hole Ø
4 mm
- Max. load capacity
500 N
- Type
R2-08.180.04
Documents & Downloads
Datasheet
Datasheet 2344056 Rohde R2-08.180.04 Handle Black (L x W x H) 192 x 8 x 40 mm 1 Set
User & Safety Instructions
User & Safety Instructions 2344056 Rohde R2-08.180.04 Handle Black (L x W x H) 192 x 8 x 40 mm 1 Set
Description
Especially versatile and
Shapely type series for
19" slots and devices.
Material and surface:
Profile aluminum AIMgSi 0.5;
slide-ground, matt
and natural or black
anodized.
Type R1 and R2
These differ in their width and thread size and can therefore be used
Housing conditions adjusted
other.
Type R3
For screw mounting of
front. Included in the delivery
Stainless steel socket head screws with
Hexagon socket M5 x 45 DIN 912
and galvanized self-securing
Tooth-lock nuts.
This text is machine translated.
Shapely type series for
19" slots and devices.
Material and surface:
Profile aluminum AIMgSi 0.5;
slide-ground, matt
and natural or black
anodized.
Type R1 and R2
These differ in their width and thread size and can therefore be used
Housing conditions adjusted
other.
Type R3
For screw mounting of
front. Included in the delivery
Stainless steel socket head screws with
Hexagon socket M5 x 45 DIN 912
and galvanized self-securing
Tooth-lock nuts.
This text is machine translated.
