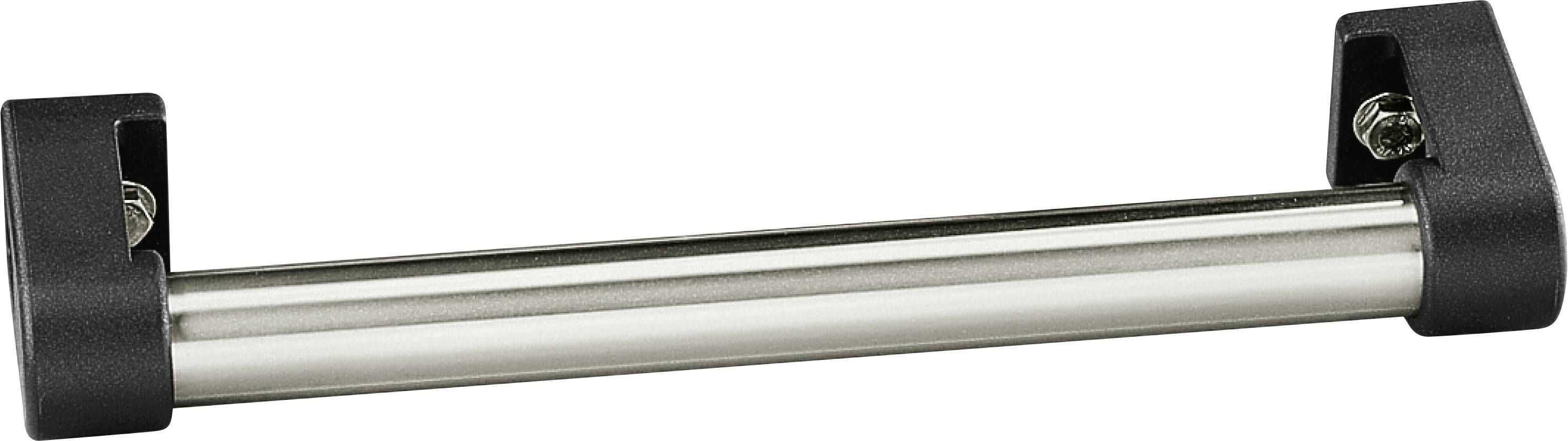

Rohde RR-30.400.62 Machine handle Black, Silver (L x W x H) 450 x 30 x 80 mm 2 pc(s)
EAN:
Part number:
Item no:
Product type
Machine handle
Material
Aluminium

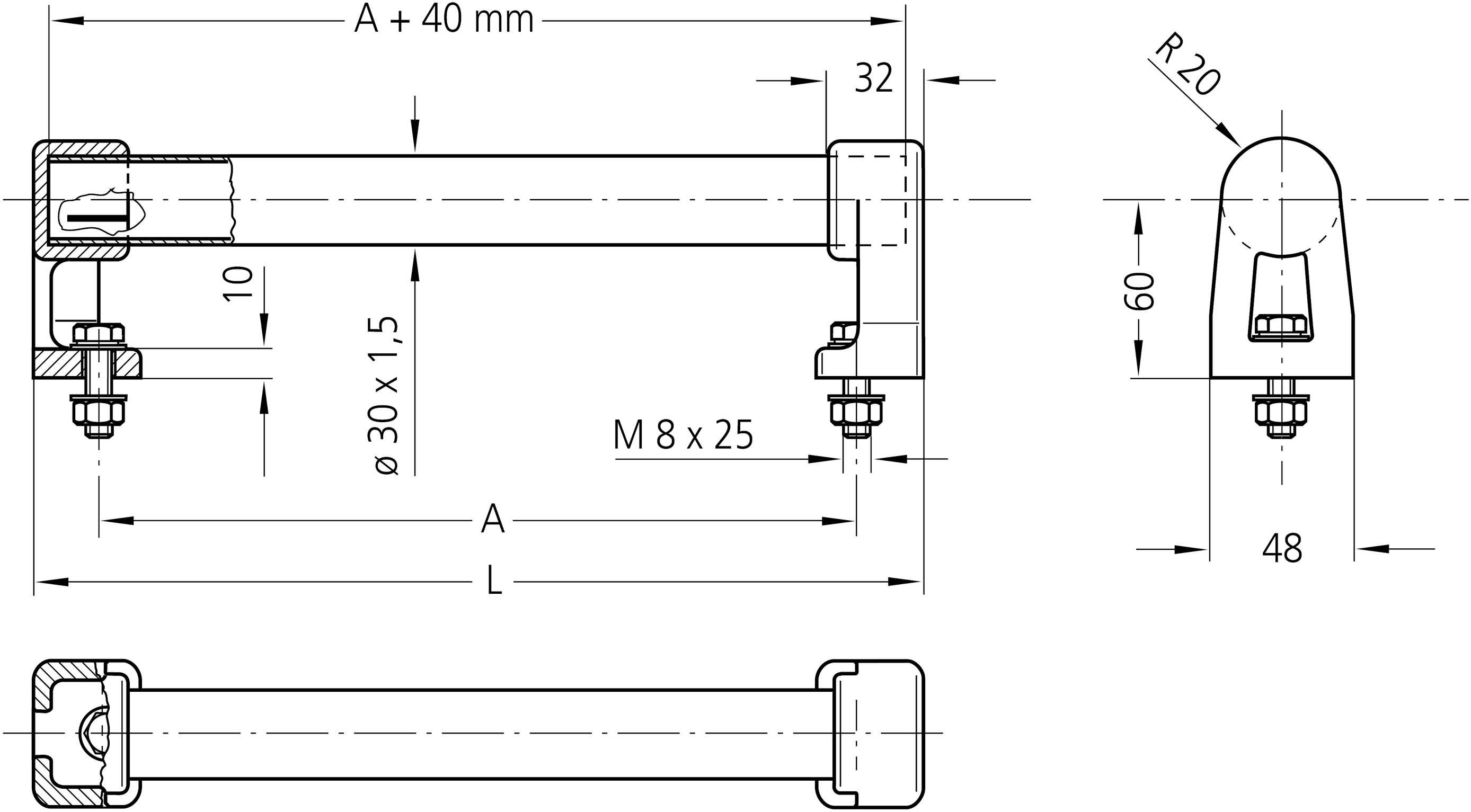

Dim
(L x W x H) 450 x 30 x 80 mm
Width
30 mm
Height
80 mm
Datasheet (PDF)
Highlights & Details
Rohde machine handle, can be plugged together, incl. BEF. Material
- Content 2 pcs.
Technical specifications
- Version: A
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: c:Round bore
- Series name: RR-30
- Handle type (series): R-R grip series
- Hole diameter: M8
- Dim
(L x W x H) 450 x 30 x 80 mm
- Product type
Machine handle
- Material
Aluminium
- Width
30 mm
- Height
80 mm
- Length
450 mm
- Hole spacing
400 mm
- Factory colour
Black
Silver
- Content
2 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
RR-30.400.62
Documents & Downloads
Datasheet
Datasheet 2344227 Rohde RR-30.400.62 Machine handle Black, Silver (L x W x H) 450 x 30 x 80 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2344227 Rohde RR-30.400.62 Machine handle Black, Silver (L x W x H) 450 x 30 x 80 mm 2 pc(s)
Description
These Rohde grip series in
2 from guide variables are in the
Machinery and construction
versatile use.
The RR-30.A variant with from -
Angled legs
Also the use
Double doors.
Material:
Handle legs made of high be -
Load-able polyamide PA 6, glass-ball reinforced,
black, similar
RAL 9005, semi-matt, with fine -
structure. Connecting pipes
Aluminum, AIMgSi 0.5.
Constructive advantages:
The handle legs have in the
Tube mounting range 4 clamping strips.
These effect one
Fits exactly.
Type A:
Ground connection pipe
and natural colors anodized.
Type B:
Connection pipe with corrugated
Plastic cover.
Design C:
Connection pipe black
ge powder-coated with fine structure.
This text is machine translated.
2 from guide variables are in the
Machinery and construction
versatile use.
The RR-30.A variant with from -
Angled legs
Also the use
Double doors.
Material:
Handle legs made of high be -
Load-able polyamide PA 6, glass-ball reinforced,
black, similar
RAL 9005, semi-matt, with fine -
structure. Connecting pipes
Aluminum, AIMgSi 0.5.
Constructive advantages:
The handle legs have in the
Tube mounting range 4 clamping strips.
These effect one
Fits exactly.
Type A:
Ground connection pipe
and natural colors anodized.
Type B:
Connection pipe with corrugated
Plastic cover.
Design C:
Connection pipe black
ge powder-coated with fine structure.
This text is machine translated.
Scope of delivery
- Delivery scope
- RR-20 including black
- Galvanized cap screws
- (Chrome VI free) M5 x 20 DIN 933
- And galvanized nuts
- DIN 934 with washers
- DIN 125 RR-30 AND RR-30.A.
- Like RR-20, but with screws
- M8 x 25.
