Rohde S1-12.133.04 Case handle Black (L x W x H) 146.5 x 12 x 40 mm 5 pc(s)
EAN:
Part number:
Item no:
Product type
Case handle
Material
Aluminium
Dim

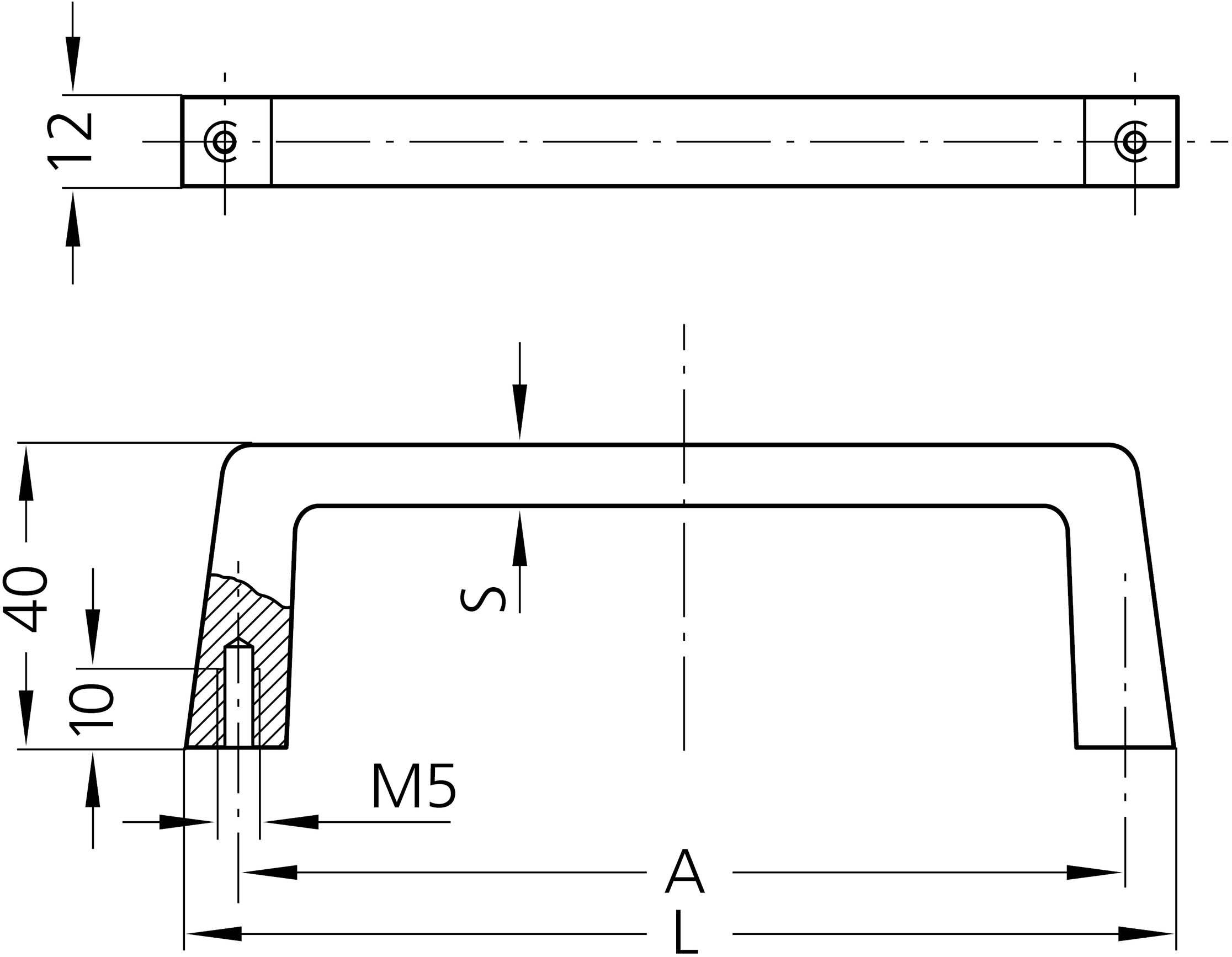

(L x W x H) 146.5 x 12 x 40 mm
Width
12 mm
Height
40 mm
Datasheet (PDF)
Highlights & Details
Rohde LM-grip made of profile aluminum
- Content: 5 pieces
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: Internal thread
- Series name: S1-12
- Handle type (series): Grip series S
- Hole diameter: M5
- Dim
(L x W x H) 146.5 x 12 x 40 mm
- Product type
Case handle
- Material
Aluminium
- Width
12 mm
- Height
40 mm
- Length
146.5 mm
- Hole spacing
133 mm
- Factory colour
Black
- Content
5 pc(s)
- Hole Ø
5 mm
- Max. load capacity
500 N
- Type
S1-12.133.04
Documents & Downloads
Datasheet
Datasheet 2344295 Rohde S1-12.133.04 Case handle Black (L x W x H) 146.5 x 12 x 40 mm 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2344295 Rohde S1-12.133.04 Case handle Black (L x W x H) 146.5 x 12 x 40 mm 5 pc(s)
Description

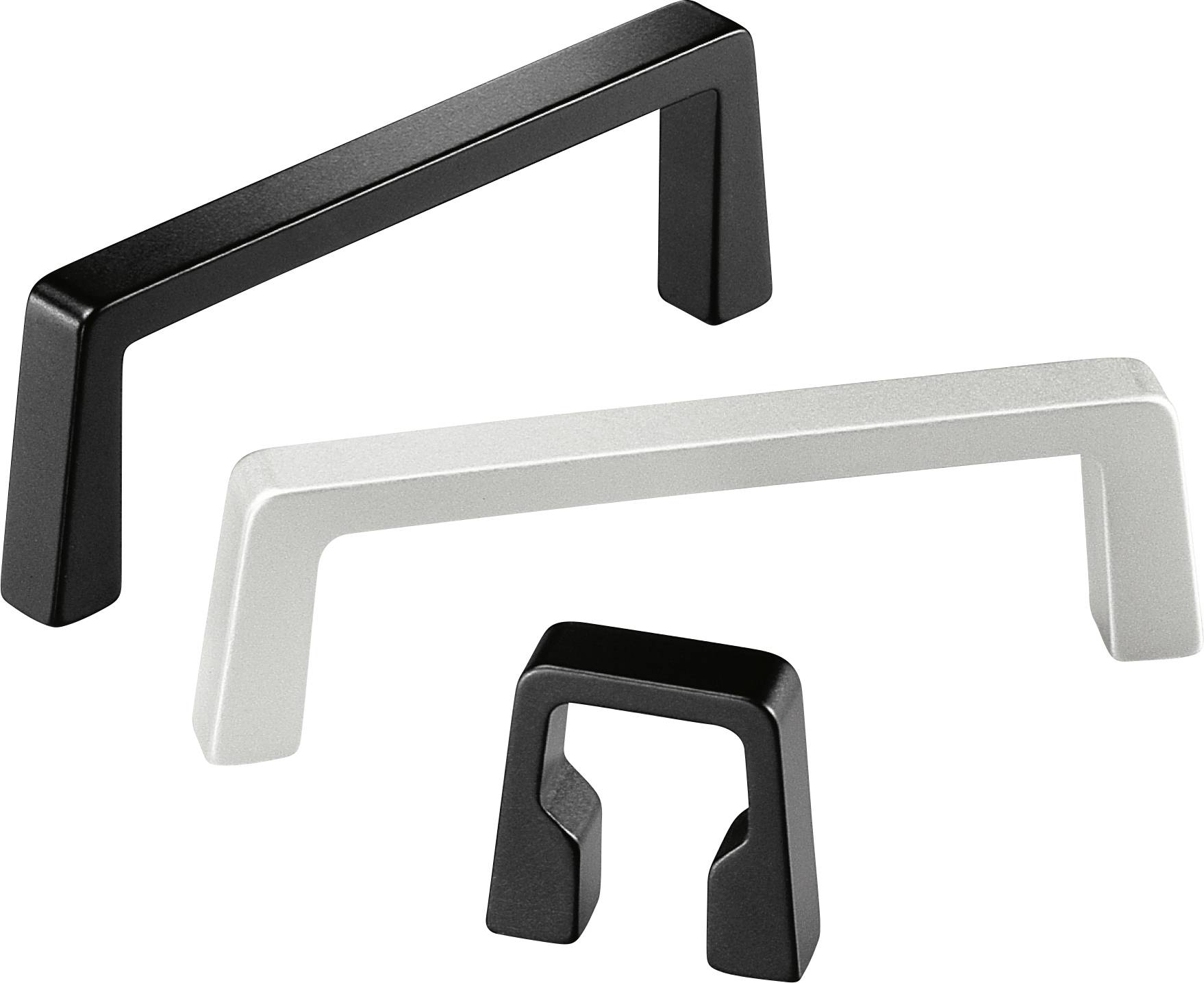

Handle series S
Standard types for 19” slots
And devices.
This text is machine translated.
Standard types for 19” slots
And devices.
This text is machine translated.
Scope of delivery
- Material and surface:
- Profile aluminum AIMgSi 0.5
- matte and natural colors or
- black anodized.
