Rohde SG-20.100.A1 Cabinet handle Silver (L x W x H) 100 x 19.5 x 90 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cabinet handle
Material
Aluminium
Dim
(L x W x H) 100 x 19.5 x 90 mm
Width
19.5 mm
Height
90 mm
Datasheet (PDF)
Highlights & Details
Rohde Shell handle made of profiled aluminum, natural anodized/connecting pipe, a.stainless steel 20x1mm/L=102 mm
- Content: 1 pcs.
Technical specifications
- Version: A
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer color: silver
- Series name: SG-20
- Handle type (series): Shell handle SG
- Hole diameter:
- Dim
(L x W x H) 100 x 19.5 x 90 mm
- Product type
Cabinet handle
- Material
Aluminium
- Width
19.5 mm
- Height
90 mm
- Length
100 mm
- Factory colour
Silver
- Content
1 pc(s)
- Max. load capacity
500 N
- Type
SG-20.100.A1
Documents & Downloads
Datasheet
Datasheet 2344300 Rohde SG-20.100.A1 Cabinet handle Silver (L x W x H) 100 x 19.5 x 90 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344300 Rohde SG-20.100.A1 Cabinet handle Silver (L x W x H) 100 x 19.5 x 90 mm 1 pc(s)
Description
Variable length shell handle
For use e.g. on housing doors
Or sheet metal panels.
Material and surface:
Handle made of aluminum profile,
Anodised with natural colours Side end caps
Made of polyamide
PA 6, glass-ball reinforced, black,
Semi-matt with fine structure.
Connection pipe ø 20 x 1 mm
Made of stainless steel (work no.
1.4301), fine-ground.

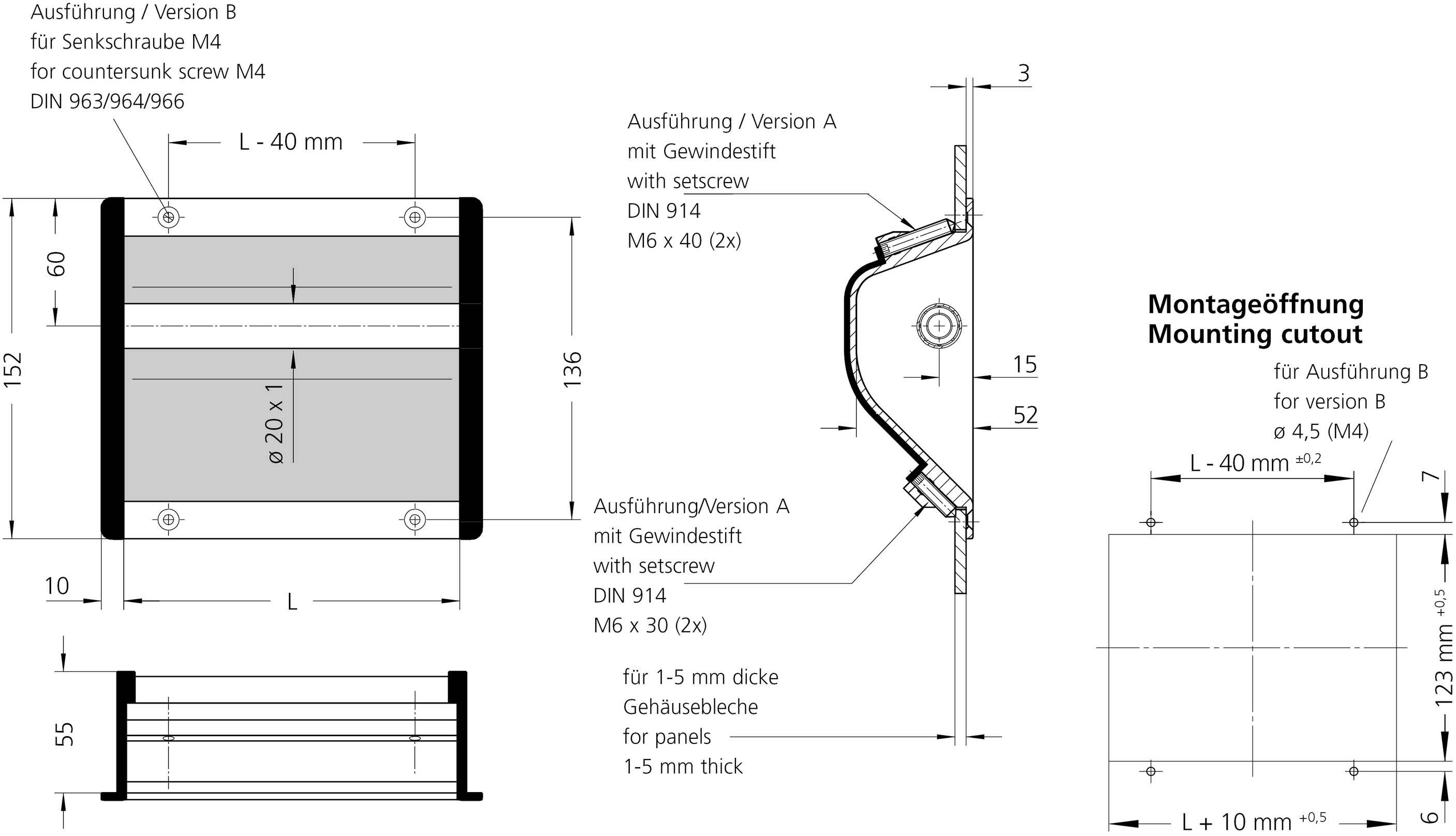

Type A:
Rear mounting through
Supplied set screws
M6 x 30 (2x) and M6 x 40 (2x),
DIN 914 made of stainless steel.
Type B:
Front mounting for
Countersunk screws M4,
DIN 963/964/966.
Constructive advantages:
Easy mounting for wall thicknesses
from 1- 5 mm.
This text is machine translated.
For use e.g. on housing doors
Or sheet metal panels.
Material and surface:
Handle made of aluminum profile,
Anodised with natural colours Side end caps
Made of polyamide
PA 6, glass-ball reinforced, black,
Semi-matt with fine structure.
Connection pipe ø 20 x 1 mm
Made of stainless steel (work no.
1.4301), fine-ground.
Type A:
Rear mounting through
Supplied set screws
M6 x 30 (2x) and M6 x 40 (2x),
DIN 914 made of stainless steel.
Type B:
Front mounting for
Countersunk screws M4,
DIN 963/964/966.
Constructive advantages:
Easy mounting for wall thicknesses
from 1- 5 mm.
This text is machine translated.
