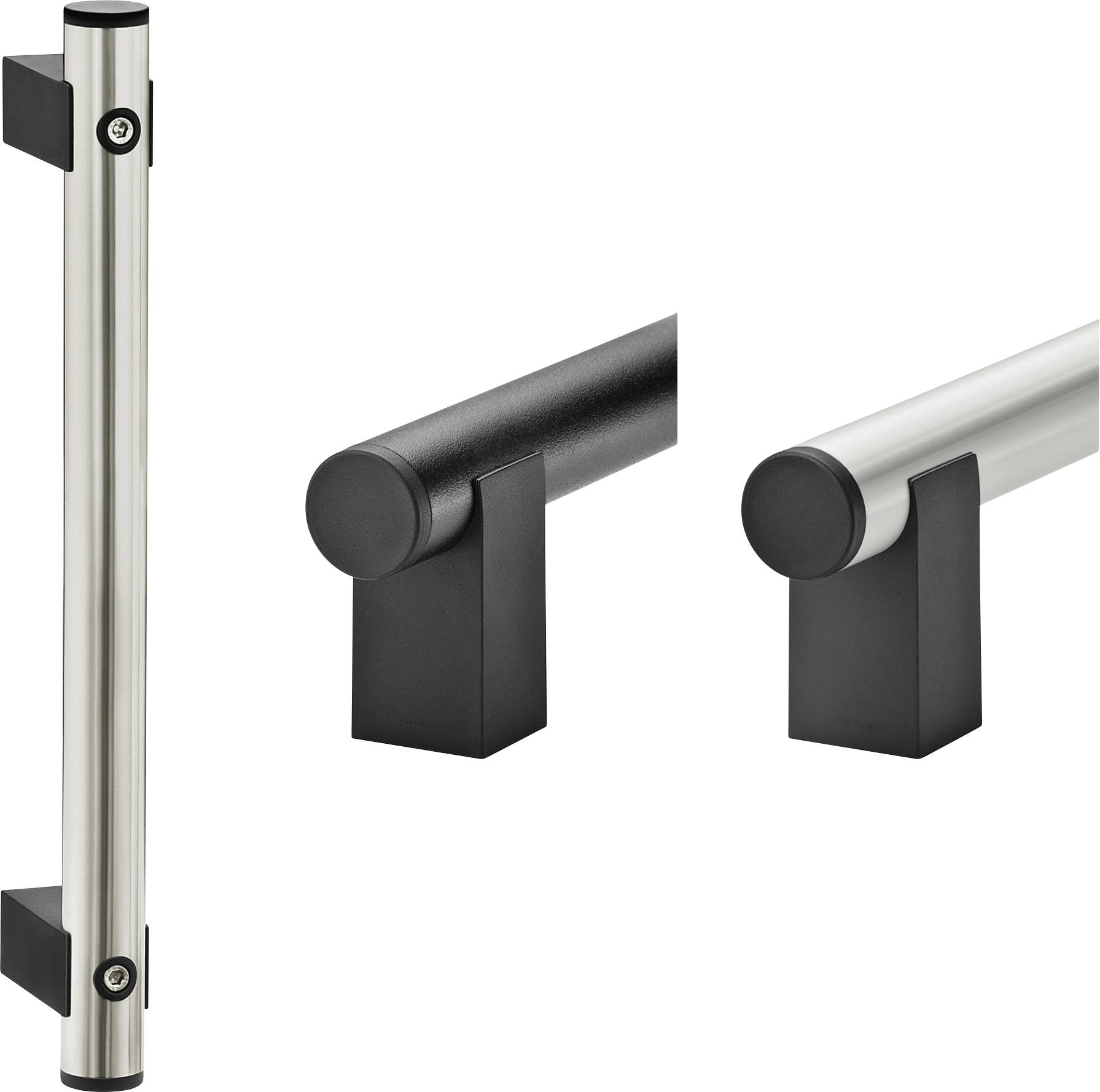

Rohde U5-30.R250.37 Rod handle Black, Silver (L x W x H) 330 x 30 x 75 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rod handle
Material
Steel
Dim
(L x W x H) 330 x 30 x 75 mm
Width
30 mm
Height
75 mm
Datasheet (PDF)
Highlights & Details
Rohde universal pipe handle for rear, fixing/holder+end caps PA6, pipe stainless steel, fine-cut
- Content: 1 pcs.
Technical specifications
- Surface treatment: Brushed
- Material (material): 1.4301 (304), PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: Internal thread
- Series name: U5-30
- Grip type (series): Pipe grip series U5
- Hole diameter: M6
- Dim
(L x W x H) 330 x 30 x 75 mm
- Product type
Rod handle
- Material
Steel
- Width
30 mm
- Height
75 mm
- Length
330 mm
- Hole spacing
250 mm
- Factory colour
Black
Silver
- Content
1 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
U5-30.R250.37
Documents & Downloads
Datasheet
Datasheet 2344392 Rohde U5-30.R250.37 Rod handle Black, Silver (L x W x H) 330 x 30 x 75 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344392 Rohde U5-30.R250.37 Rod handle Black, Silver (L x W x H) 330 x 30 x 75 mm 1 pc(s)
Description
Material and surface:
Pipes made of ø 30 x 1.5 mm
Aluminum AlMgSi 0.5;
natural colors anodized or
black powder coated with
Fine structure. Alternatively
Stainless steel material no. 1.4301;
fine-ground.

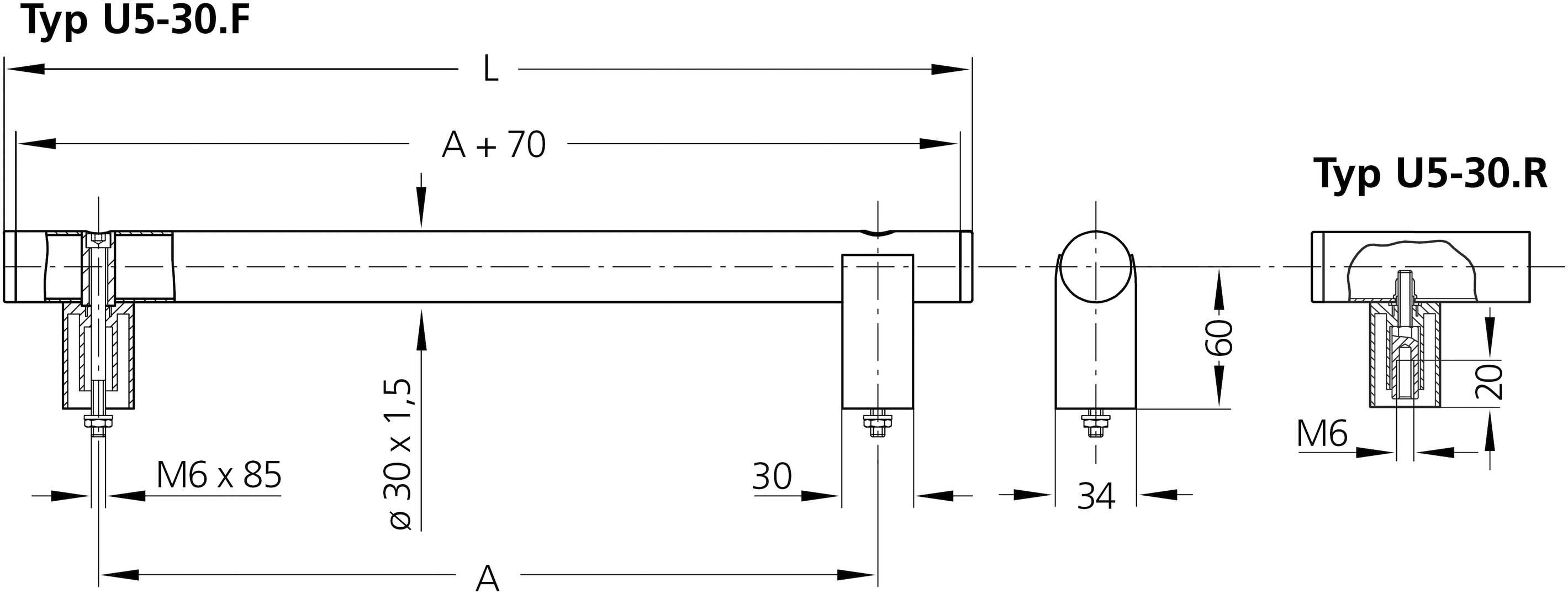

Type U5-30.F
Front mounting
Using socket head screws
Stainless steel M6 x 85 DIN 912,
Nuts DIN 934 and washers
DIN 125 (included in delivery
included). Pipe holder;
And pipe cap made of polyamide
PA 6, glass-ball reinforced,
black, semi-matt with
Fine structure.
Type U5-30.R.
Rear mounting via
Galvanized steel insert. Other
Components as for type U5-30.F.
This text is machine translated.
Pipes made of ø 30 x 1.5 mm
Aluminum AlMgSi 0.5;
natural colors anodized or
black powder coated with
Fine structure. Alternatively
Stainless steel material no. 1.4301;
fine-ground.
Type U5-30.F
Front mounting
Using socket head screws
Stainless steel M6 x 85 DIN 912,
Nuts DIN 934 and washers
DIN 125 (included in delivery
included). Pipe holder;
And pipe cap made of polyamide
PA 6, glass-ball reinforced,
black, semi-matt with
Fine structure.
Type U5-30.R.
Rear mounting via
Galvanized steel insert. Other
Components as for type U5-30.F.
This text is machine translated.
Scope of delivery
- Delivery includes precious steel
- Socket head screws
- M5 x 45 DIN 912 and
- galvanized self-securing
- Lock tooth nuts
