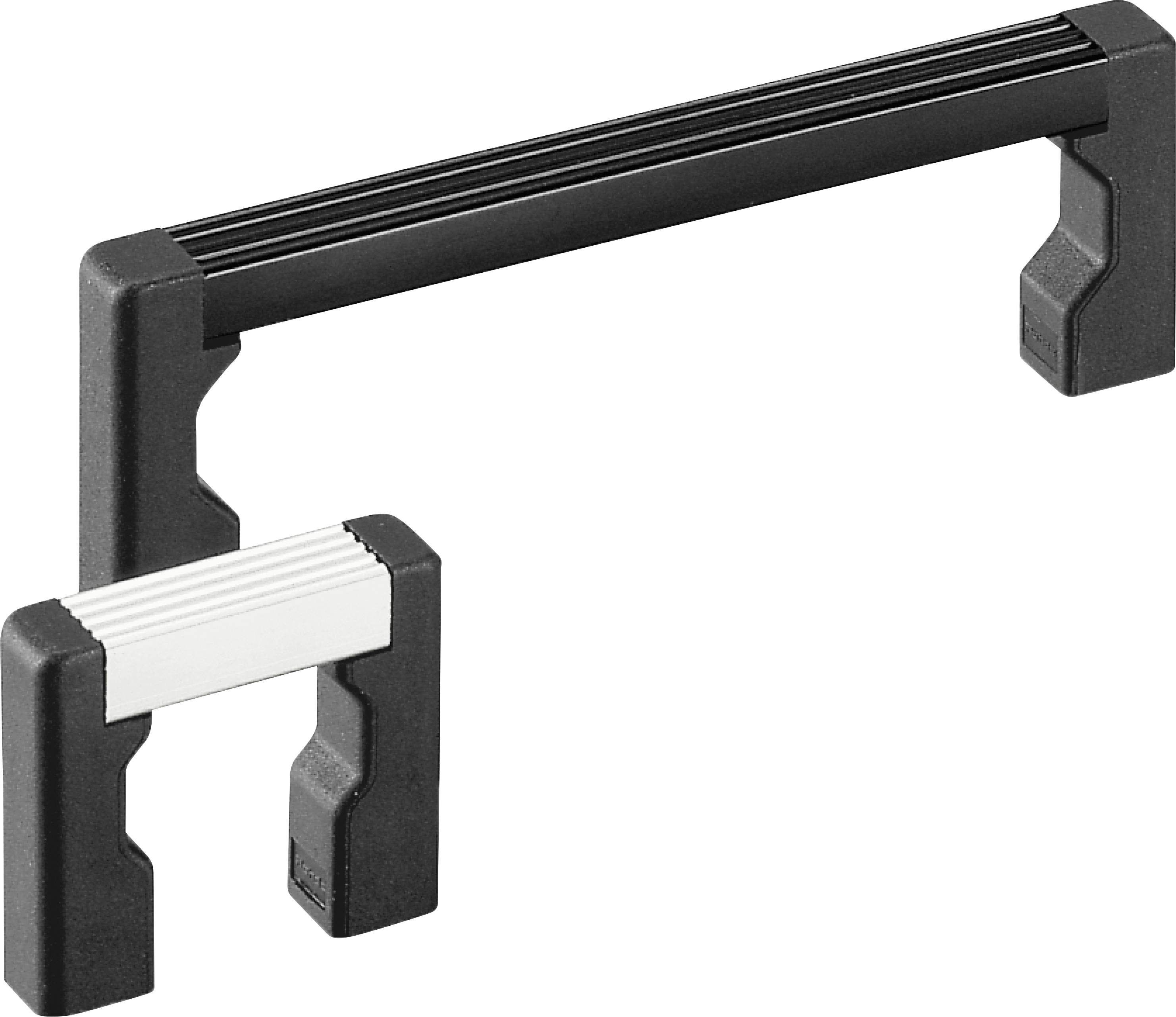

Rohde UG-03.120.04 Universal handle Black (L x W x H) 130 x 12 x 40 mm 5 pc(s)
EAN:
Part number:
Item no:
Product type
Universal handle
Material
Aluminium
Dim
(L x W x H) 130 x 12 x 40 mm
Width
12 mm
Height
40 mm
Datasheet (PDF)
Highlights & Details
Rohde Universal device handle, with continuous steel core
- Content: 5 pieces
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer color: Black side and bridge
- Mounting method: Internal thread
- Series name: UG-03
- Handle type (series): Universal device grips UG-03
- Hole diameter: M5
- Dim
(L x W x H) 130 x 12 x 40 mm
- Product type
Universal handle
- Material
Aluminium
- Width
12 mm
- Height
40 mm
- Length
130 mm
- Hole spacing
120 mm
- Factory colour
Black
- Content
5 pc(s)
- Hole Ø
5 mm
- Max. load capacity
500 N
- Type
UG-03.120.04
Documents & Downloads
Datasheet
Datasheet 2344420 Rohde UG-03.120.04 Universal handle Black (L x W x H) 130 x 12 x 40 mm 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2344420 Rohde UG-03.120.04 Universal handle Black (L x W x H) 130 x 12 x 40 mm 5 pc(s)
Description
Draw the Rohde grip series UG
through their universal
Applicability. Bridge and
Legs are as pass parts
compatable. Depending on
Task can type without
Or with steel reinforcement in
The legs are selected,
The latter comes under the demand
Maximum load capacity
against.
Material and surface:
Handle bar made of aluminum
Profile tube.
Handle legs made of heavy-duty
Polyamide PA 6, glass-ball reinforced with fine structure (detail
See versions).
Handle bar matt and natural colors
or black anodized.
Formats:
Type UG-02
With MS threaded bush.
Load capacity:
min 200 N.
Type UG-03
with continuous galvanized
Steel core.
Load capacity:
min 500 N.
Type UG-04
Screw assembly from the front,
Steel-plate reinforcement.
This text is machine translated.
through their universal
Applicability. Bridge and
Legs are as pass parts
compatable. Depending on
Task can type without
Or with steel reinforcement in
The legs are selected,
The latter comes under the demand
Maximum load capacity
against.
Material and surface:
Handle bar made of aluminum
Profile tube.
Handle legs made of heavy-duty
Polyamide PA 6, glass-ball reinforced with fine structure (detail
See versions).
Handle bar matt and natural colors
or black anodized.
Formats:
Type UG-02
With MS threaded bush.
Load capacity:
min 200 N.
Type UG-03
with continuous galvanized
Steel core.
Load capacity:
min 500 N.
Type UG-04
Screw assembly from the front,
Steel-plate reinforcement.
This text is machine translated.
Scope of delivery
- Delivery includes precious steel
- Socket head screws
- M5 x 45 DIN 912 and
- galvanized self-securing
- Lock tooth nuts
