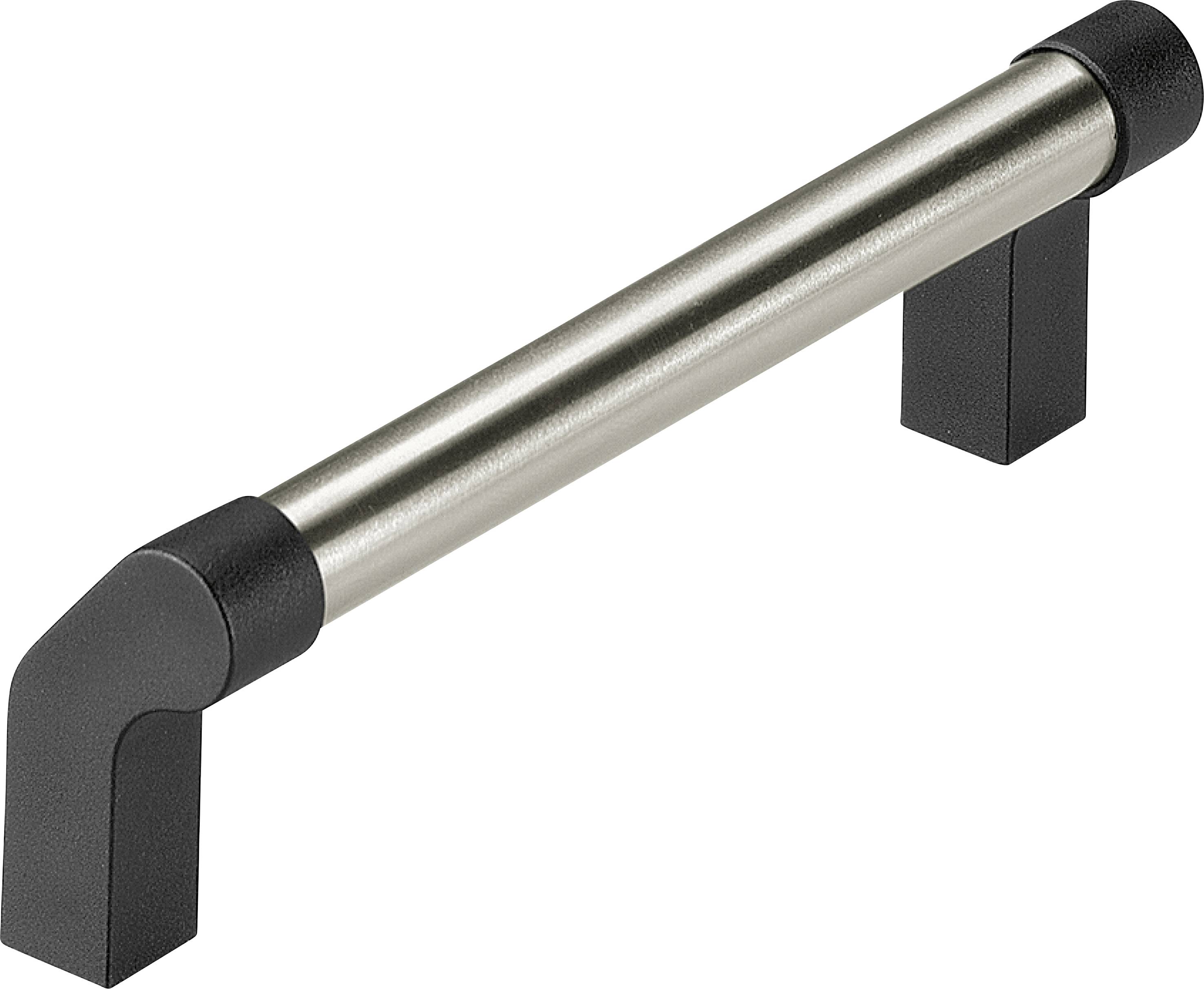

Rohde UG-06.128.37 Universal handle Black, Silver (L x W x H) 140 x 12 x 40 mm 3 pc(s)
EAN:
Part number:
Item no:
Product type
Universal handle
Material
Steel
Dim
(L x W x H) 140 x 12 x 40 mm
Width
12 mm
Height
40 mm
Datasheet (PDF)
Highlights & Details
Rohde Universal device handle, stainless steel tube, PA6 arm black
- Content: 3 pieces
Technical specifications
- Surface treatment: Brushed
- Material (material): 1.4301 (304), PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: Internal thread
- Series name: UG-06
- Handle type (series): Universal handle UG-06
- Hole diameter: M4
- Dim
(L x W x H) 140 x 12 x 40 mm
- Product type
Universal handle
- Material
Steel
- Width
12 mm
- Height
40 mm
- Length
140 mm
- Hole spacing
128 mm
- Factory colour
Black
Silver
- Content
3 pc(s)
- Hole Ø
4 mm
- Max. load capacity
200 N
- Type
UG-06.128.37
Documents & Downloads
Datasheet
Datasheet 2344475 Rohde UG-06.128.37 Universal handle Black, Silver (L x W x H) 140 x 12 x 40 mm 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2344475 Rohde UG-06.128.37 Universal handle Black, Silver (L x W x H) 140 x 12 x 40 mm 3 pc(s)
Description
Material and surface:
Handle legs made of polyamide PA 6,
glass ball reinforced, black,
Semi-matt with fine structure,
Threaded bush made of brass.
Connection pipe ø 12 x 1 mm
Made of aluminum AlMgSi 0.5;
matt gloss natural colors or
black anodized or off
Stainless steel, material no. 1.4301;
fine-ground.
This text is machine translated.
Handle legs made of polyamide PA 6,
glass ball reinforced, black,
Semi-matt with fine structure,
Threaded bush made of brass.
Connection pipe ø 12 x 1 mm
Made of aluminum AlMgSi 0.5;
matt gloss natural colors or
black anodized or off
Stainless steel, material no. 1.4301;
fine-ground.
This text is machine translated.
