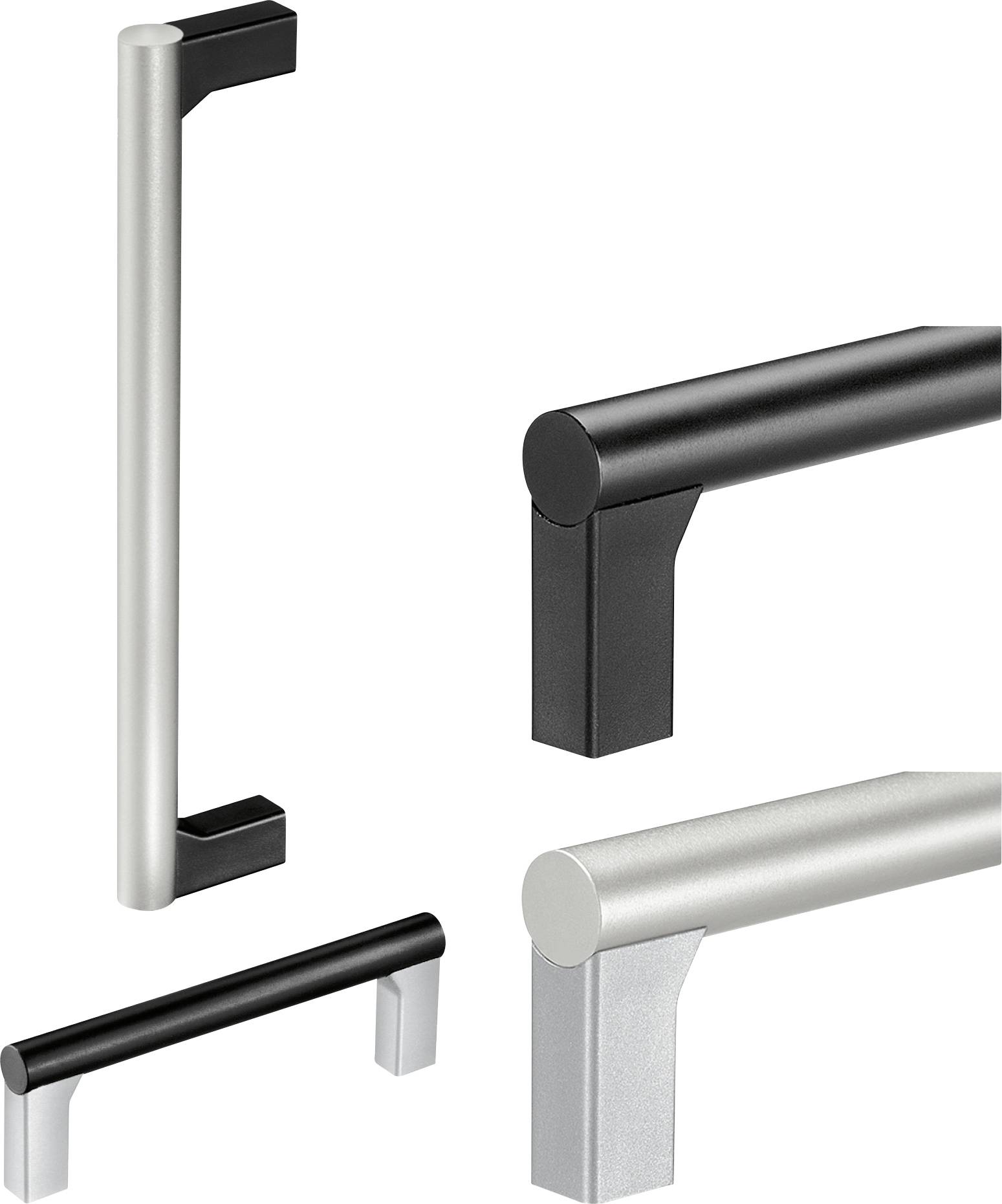

Rohde UR-12.055.B01 Universal handle Black, Silver (L x W x H) 67 x 12 x 37 mm 3 pc(s)
EAN:
Part number:
Item no:
Product type
Universal handle
Material
Aluminium
Dim
(L x W x H) 67 x 12 x 37 mm
Width
12 mm
Height
37 mm
Datasheet (PDF)
Highlights & Details
Rohde Universal-Round aluminum grip, handle legs PA6/black, bridge anodized aluminum-natural colors
- Content: 3 pieces
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: Internal thread
- Series name: UR-12
- Handle type (series): Universal round aluminum grips UR
- Hole diameter: M4

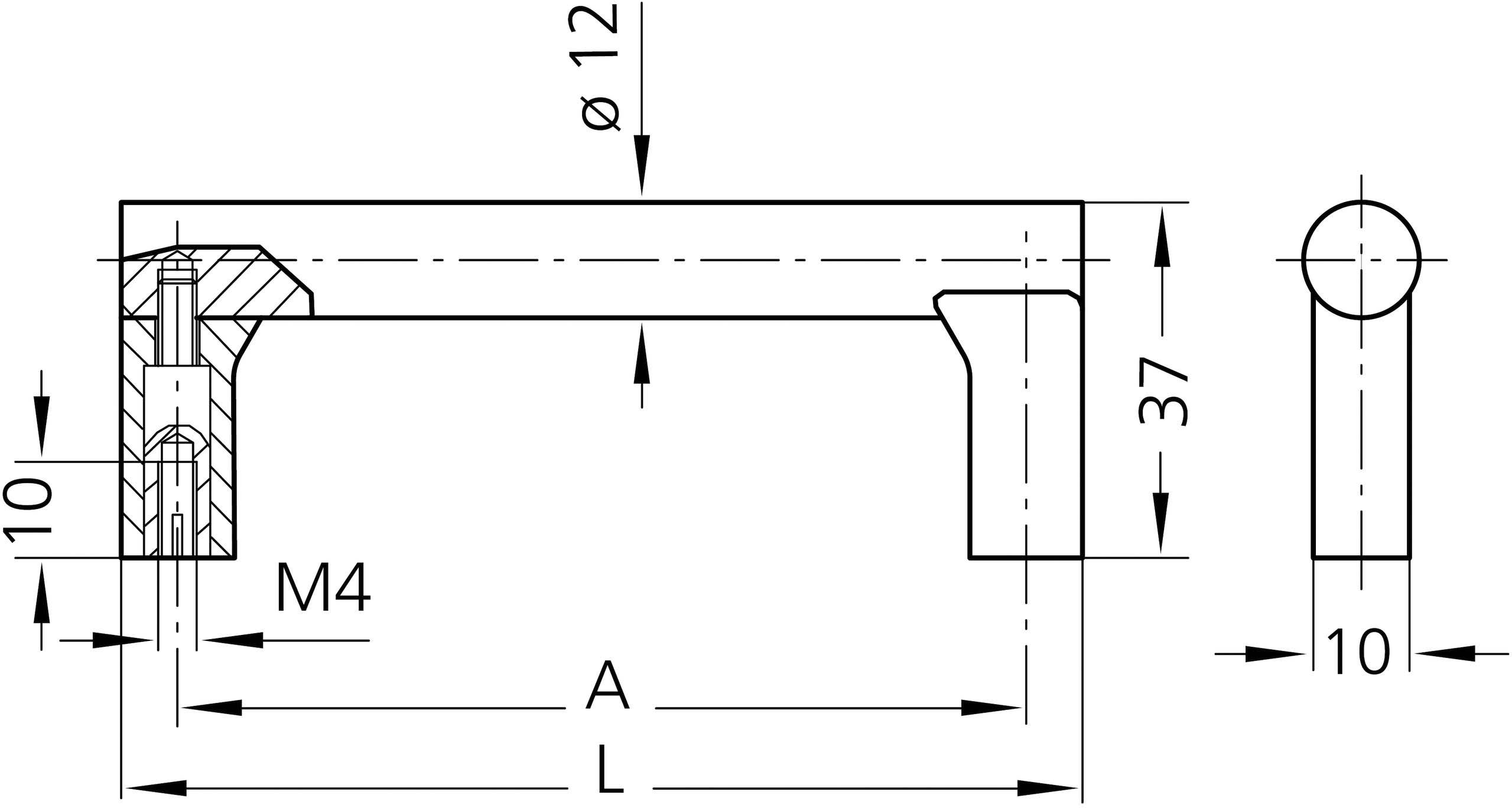

- Dim
(L x W x H) 67 x 12 x 37 mm
- Product type
Universal handle
- Material
Aluminium
- Width
12 mm
- Height
37 mm
- Length
67 mm
- Hole spacing
55 mm
- Factory colour
Black
Silver
- Content
3 pc(s)
- Hole Ø
4 mm
- Max. load capacity
500 N
- Type
UR-12.055.B01
Documents & Downloads
Datasheet
Datasheet 2344496 Rohde UR-12.055.B01 Universal handle Black, Silver (L x W x H) 67 x 12 x 37 mm 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2344496 Rohde UR-12.055.B01 Universal handle Black, Silver (L x W x H) 67 x 12 x 37 mm 3 pc(s)
Description
Material and surface:
Handle legs made of glass-ball reinforced
Polyamide PA 6
Black, similar to RAL 9005 or
aluminum colors, semi-matt with
Fine structure.
Handle bar made of round aluminum
AlMgSi 0.5; fine-ground and
natural colors or black anodized.
Brass screw-on insert.
This text is machine translated.
Handle legs made of glass-ball reinforced
Polyamide PA 6
Black, similar to RAL 9005 or
aluminum colors, semi-matt with
Fine structure.
Handle bar made of round aluminum
AlMgSi 0.5; fine-ground and
natural colors or black anodized.
Brass screw-on insert.
