Highlights & Details

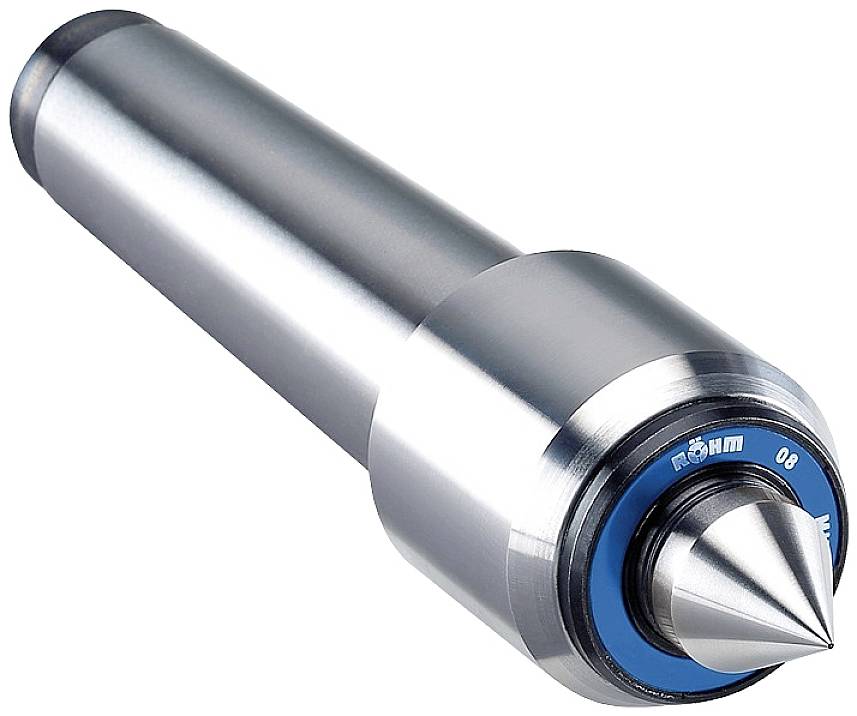

Slim MK3 center tip with RÖHM

Technical specifications

Peak angle 60 °Shaft size: MK3Workpiece weight max.: 400 kg

Product type: Centring piece

Mandrel speed (max.): 7000 U/min

Weight: 400 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2531909 RÖHM 5429 Centring piece

User & Safety Instructions

User & Safety Instructions 2531909 RÖHM 5429 Centring piece

Description

co-running · Point angle 60 ° · With small housing diameter · Hardened and ground body · Body and running tip drop-forged · The running tip is hardened · A fixed protective cover with special seal prevents the ingress of dirt and coolant · Due to the small head diameter, there is no obstruction for steel holders and turning steels with further technical characteristics: · A: 62mm · D: 15mm · G: 23.825mm · Processing type: Running · Runout deviation max.: 0.005mm · B: 34mm · K: 18mm · Speed max.: 7000min-¹

This text is machine translated.
