Name: Roline 12.03.3159 HDMI Cable Black 0.23 m
Brand: Roline
SKU: 3796739

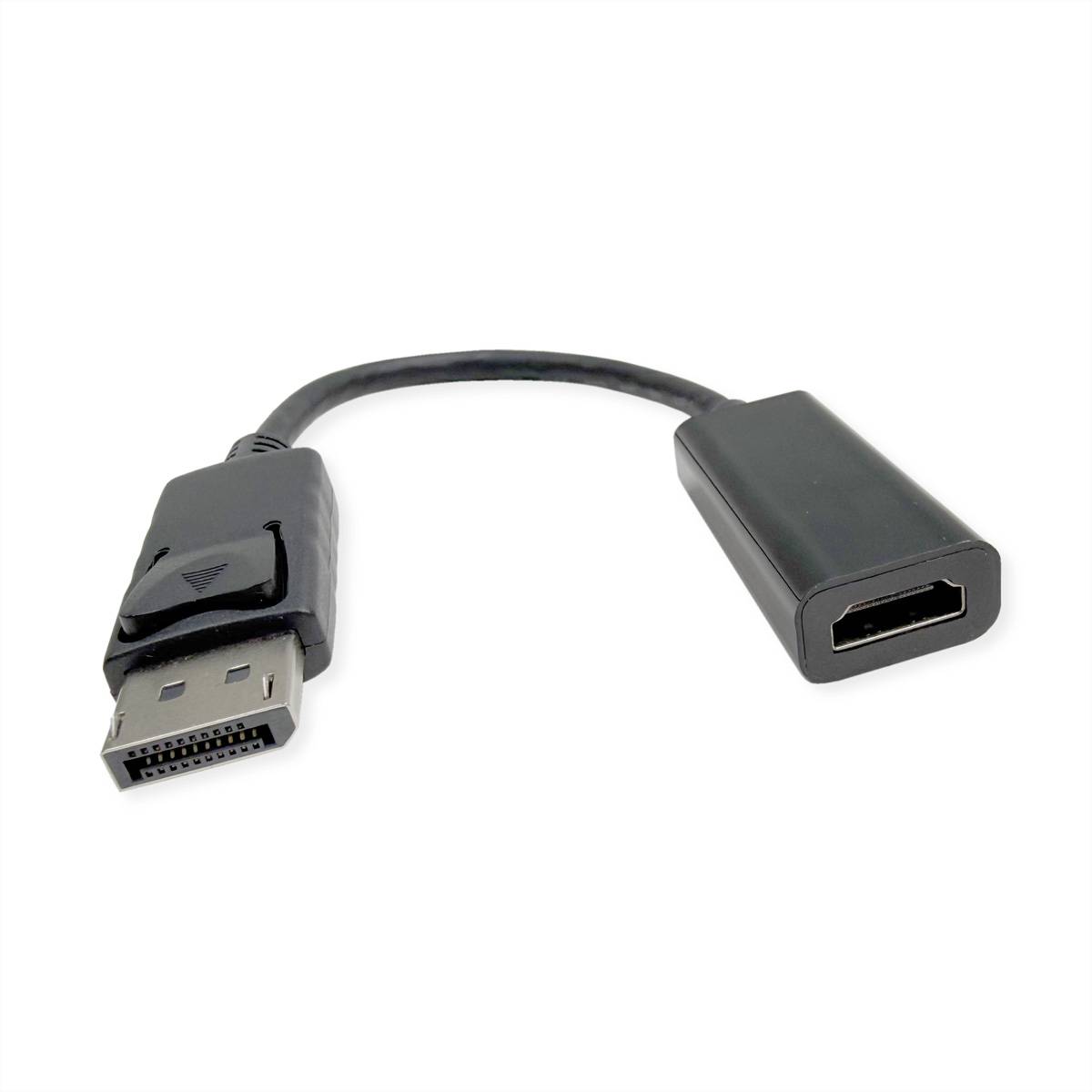

Roline 12.03.3159 HDMI Cable Black 0.23 m-0

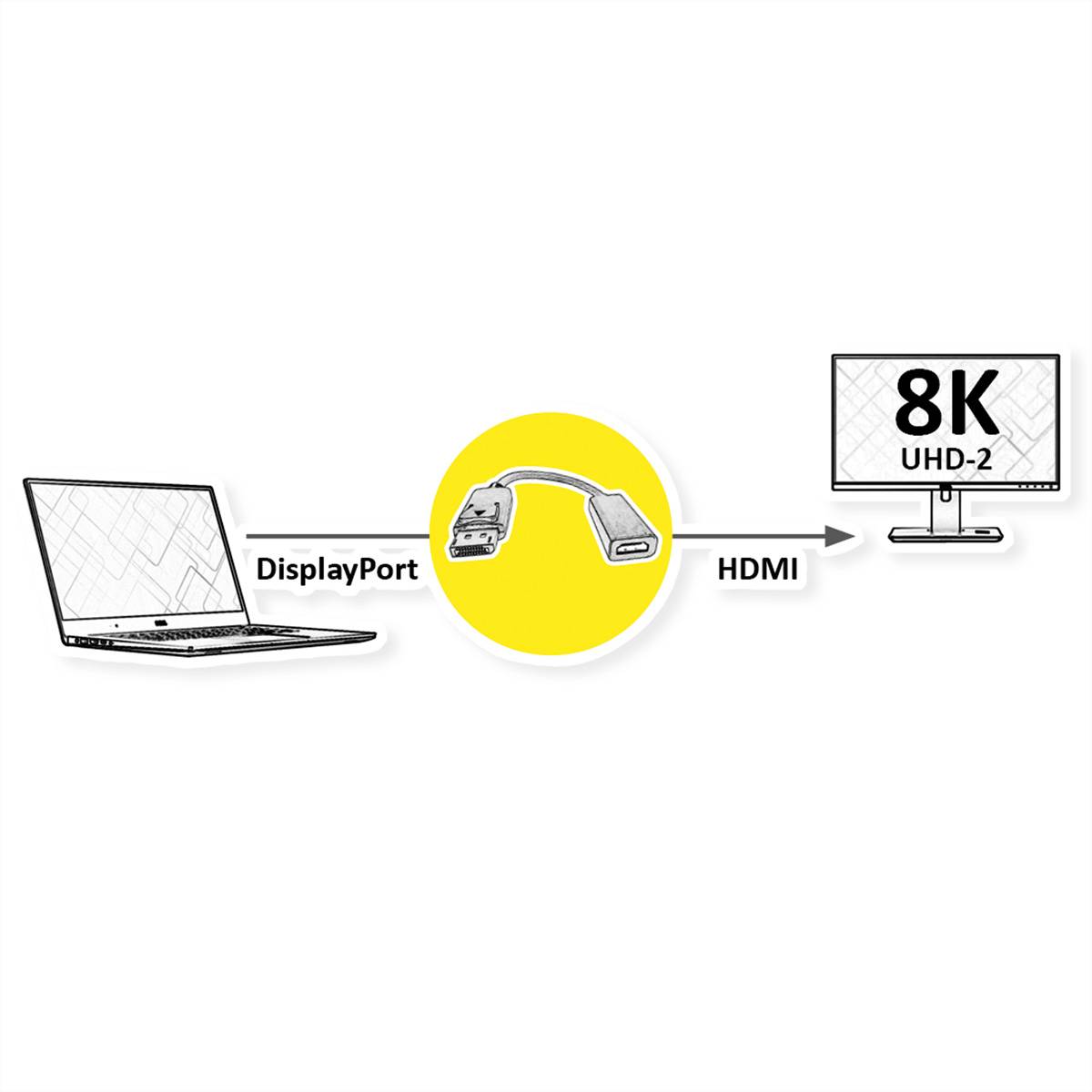

Roline 12.03.3159 HDMI Cable Black 0.23 m-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Roline 12.03.3159 HDMI Cable Black 0.23 m

Display port to HDMI adapter
Flexible cable adapter.
Resolution of up to 780x4320 @60Hz or 3840x2160 @144Hz
DisplayPort plug and HDMI socket
The connector can only be used on the data source side

Technical specifications

Product group: Adapters, terminators, converters
Product type: DisplayPort-HDMI adapter
Colour, black
Length 0.23 m
Transfer quality: DisplayPort v1.4
Max. Resolution 7680 x 4320 @60Hz (8K, UHD-2)
Connections page 1 (PC): DisplayPort connector
Connections on page 2 (peripherals): HDMI socket
Page 1 Type of connector: DisplayPort
Page 1 Type of connection: Male (plug)
Page 2 Type of connector: HDMI Type A.
Page 2 Type of connection: Female (female)
Active/passive: Active
Range of application: External
Material ABS and PVC
Technical features: DisplayPort version 1.4, active
Weight: 25 g
Packaging height 20 mm
Package width 50 mm
Packaging depth 50 mm
Package weight: 0.02 kg
Gross weight: 0.02

Product type: C13/C14 appliances Cable

Connection type: HDMI

Type A: HDMI plug

Type B: HDMI plug

Cable length: 0.23 m

Factory colour: Black

Cable use: C13/C14 appliances

Version: Cable

Range of use: Monitors/TV adapters

Cable design: Round

Connections: DisplayPort plug

Weight: 0.02

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3796739 Roline 12.03.3159 HDMI Cable Black 0.23 m

User & Safety Instructions

User & Safety Instructions 3796739 Roline 12.03.3159 HDMI Cable Black 0.23 m

Description

DisplayPort to HDMI cable adapter for connecting a graphics card with DP to a monitor with HDMI connection - with a resolution of up to 7680x4320 @60Hz! DisplayPort to HDMI cable adapter for connecting an HDMI cable to a display port on the graphics card. Adapter with DisplayPort plug and HDMI socket. DisplayPort version 1.4 allows higher resolutions and refresh rates as well as greater color depths. Supports resolutions of up to 7680x4320 @60Hz or 3840x2160 @144Hz. Note: The DisplayPort HDMI adapter only works in one direction: The DisplayPort plug can only be used on the data source side (e.g. graphics card)

This text is machine translated.
