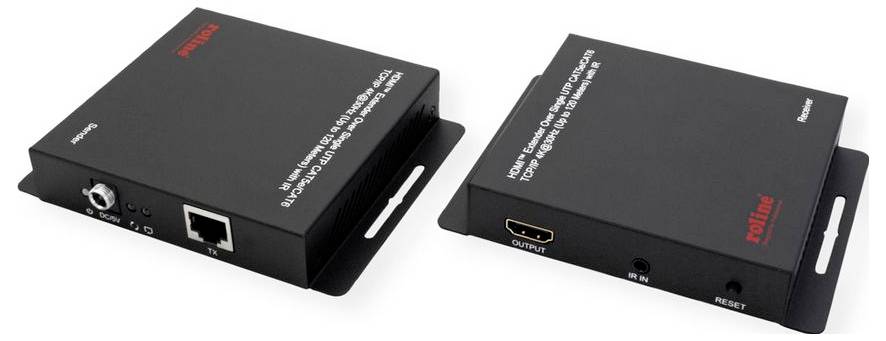

Roline 14.01.3642 HDMI™, RJ45, Infrared HDMI over IP Extender via local IP network 120 m
EAN:
Part number:
Item no:
Highlights & Details
Roline 14.01.3642 HDMI™, RJ45, Infrared HDMI over IP Extender via local IP network 120 m
- AV-transmitter & receiver 3840 x 2160 pixels
- Maximum possible transmission range: 120 m.
- 30 Hz
- Cable connected
- Power source: Direct current
Technical specifications
- Product type
HDMI over IP Extender
- Transfer type
via local IP network
- Interfaces (input)
HDMI™
RJ45
Infrared
- Interfaces (output)
HDMI™
RJ45
Infrared
- Features
incl. remote control
- Resolution (max.)
3840 x 2160 p
- Range (max.)
120 m
- Factory colour
Black
- Weight
1
- No. of outputs
1 x
- No. of inputs
1 x
- Power supply (LOV)
via PSU
- Cable design
Round
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- Playback of
DTS
LPCM
- Frame rate
30 Hz
- Cable use
C13/C14 appliances
- Material
Metal
- Type
AV-transmitter & -receiver
- Transfer type
Corded
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- AC adapter included
yes
- Quantity per pack
1 Stück(e)
- Bandwidth
3.4 Gbit/s
- Manual
yes
- Operating voltage
5 V
- Receiver dimensions (WxDxH)
94 x 120 x 24 mm
- Receiver weight
214 g
- Package weight
1 kg
- HDMI in
1
- Number of HDMI outputs
1
- Transmitter dimensions (WxDxH)
94 x 120 x 24 mm
- Transmitter weight
214 g
- Maximum transfer distance
120 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3629169 Roline 14.01.3642 HDMI™, RJ45, Infrared HDMI over IP Extender via local IP network 120 m
Description
With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with 4K@30Hz via a Cat 5e network cable or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be diverted - perfect for controlling your video source from your video destination.
