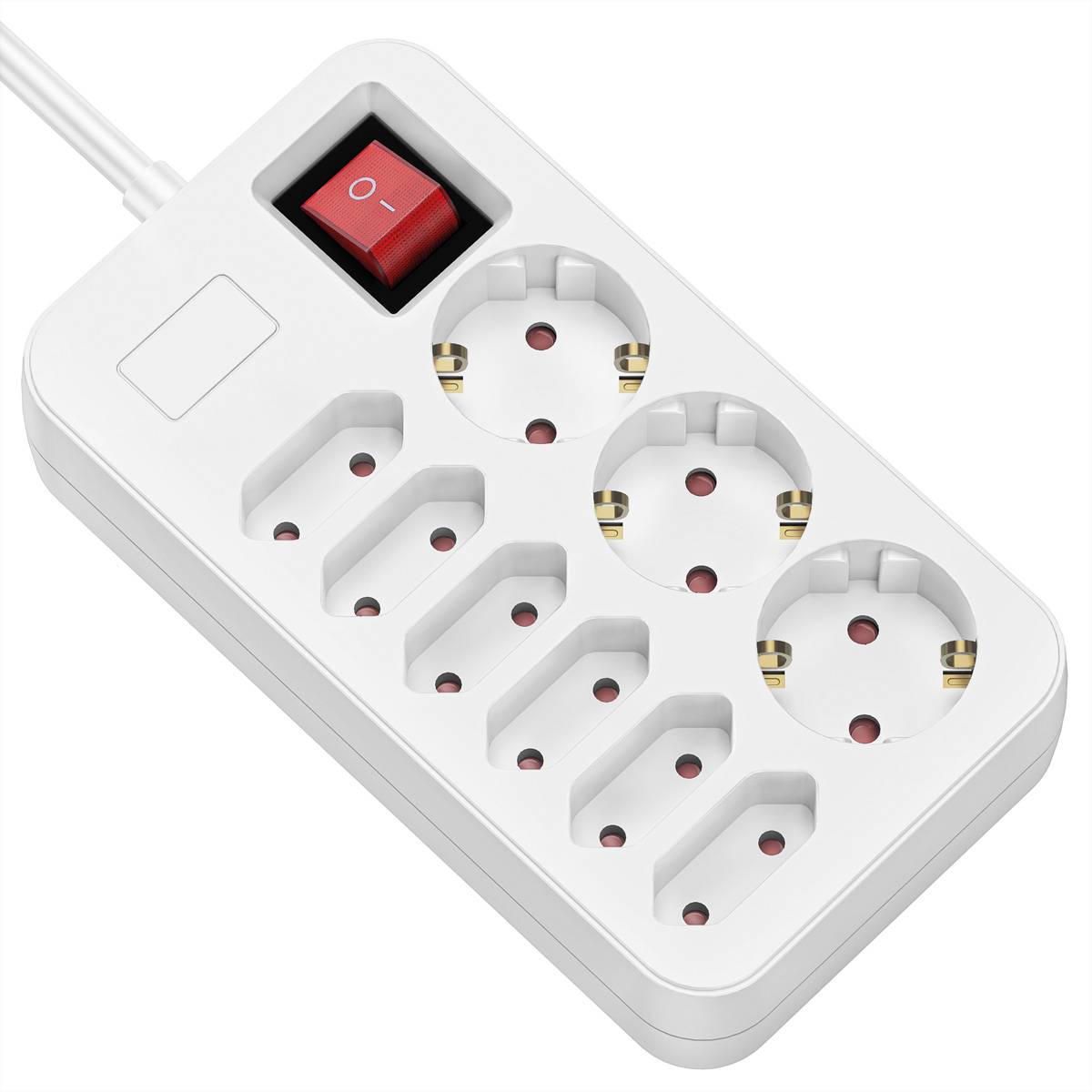

Roline 19.07.1503 Socket Child safety, incl. switch White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Power strip with six Euro and three earthing contact socket-outlets for indoor use including on/off switch and contact protection
- Power strip with earthing contact and Euro-sockets
- Impact-resistant plastic
- On/off switch, 1-pole, illuminated
- Doses in 45° with contact protection
- Cable with angled safety plug
Technical specifications
- Product group: Socket strips
- Product type: Power strip
- Colour: white
- Length: 3 m
- Function: 9-way socket strip
- Design: Desktop
- 2300 W max. load carrying capacity
- Max. VOLTAGE 230V 10A AC
- On/off switch: Yes
- Switch type 1-pin
- Number of socket pots: 9
- Number of outputs/angle: 6x + 3x / 45°
- Socket type: Protective contact, CEE 7/3, type-F
- Material (housing): Plastic
- Colour (housing): White
- Colour (cable): White
- Connection plug: Right-angle power plug
- Plug type: Earthing contact, CEE 7/7, type-E/F
- With increased protection against accidental contact: Yes
- Regional use: Germany, Austria, Netherlands
- Mains connection: Protective contact plug, type E/F
- Weight: 566 g.
- Packaging height 60 mm
- Package width 200 mm
- Packaging depth 250 mm
- Package weight: 0.6 kg
- Gross weight: 0.6
- Product type
Socket
- Light bulb features
Child safety
incl. switch
- Outlets
9
- Factory colour
White
- Length
3 m
- Content
1 pc(s)
- Cable design
Round
- Cable length
3.00 m
- Version
Cable
- Cable use
C13/C14 appliances
- Material
Plastic
- Plug type
PG connector
- Operating voltage
230 V AC
- Used at
Indoors
- Power rating
2300 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797277 Roline 19.07.1503 Socket Child safety, incl. switch White
User & Safety Instructions
User & Safety Instructions 3797277 Roline 19.07.1503 Socket Child safety, incl. switch White
Description
Power strip with six Euro and three earthing contact socket-outlets for indoor use including on/off switch and touch protection. 3x CEE 7/3 (protective contact) + 6x CEE 7/16 (European socket). Impact-resistant plastic. Switch, 1-pole, illuminated. Earthing contact sockets rotated 45° and with increased contact protection. Max. Load 10A 230V. 3 m supply cable with angled safety plug
This text is machine translated.
Scope of delivery
- Roline socket strip, 9-way, with switch
