EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Wall mounting/ceiling mounting
- Function: Rescue path marking
- Suitable for MV type identification
- Type of marking: Single-/double-sided
- With pictogram: Yes
- Suitable for standby switching: Yes
- Suitable for continuous switching: Yes
- With remote switch connection: No.
- With remote control: No.
- Emergency monitoring system: Automatic self-test
- Emergency power supply system: Decentralized (single battery)
- Rechargeable battery technology: MV
- Bulb: LED not replaceable
- With bulb: Yes
- MV socket
- Housing material: Plastic
- RAL-Number housing: 9003
- Housing color: White
- Cover material: Without cover
- Voltage type AC
- Nominal voltage: 230 V
- Protection class (IP) IP54
- Impact strength: IK03
- Protection class according to IEC 61140:II
- Rated light current according to IEC 62722-2-1: 170 lm
- Colour temperature: 6500 K
- Detection range 22 m
- Width 250 mm
- Height/depth 174 mm
- Length 34 mm
- Dim
(L x W) 34 mm x 250 mm
- Product type
LED escape route lighting
- Operating voltage
230 V
- Bulb type
LED (monochrome)
- Material
Plastic
- Width
250 mm
- Depth
174 mm
IP54
- Protection class
II
- Factory colour
White
- Length
34 mm
- Colour
Daylight white
- Mounting type
Wall
Ceiling
- Total luminous flux
170 lm
6500 K
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795721 RP-Group KSU013SC LED escape route lighting
Description

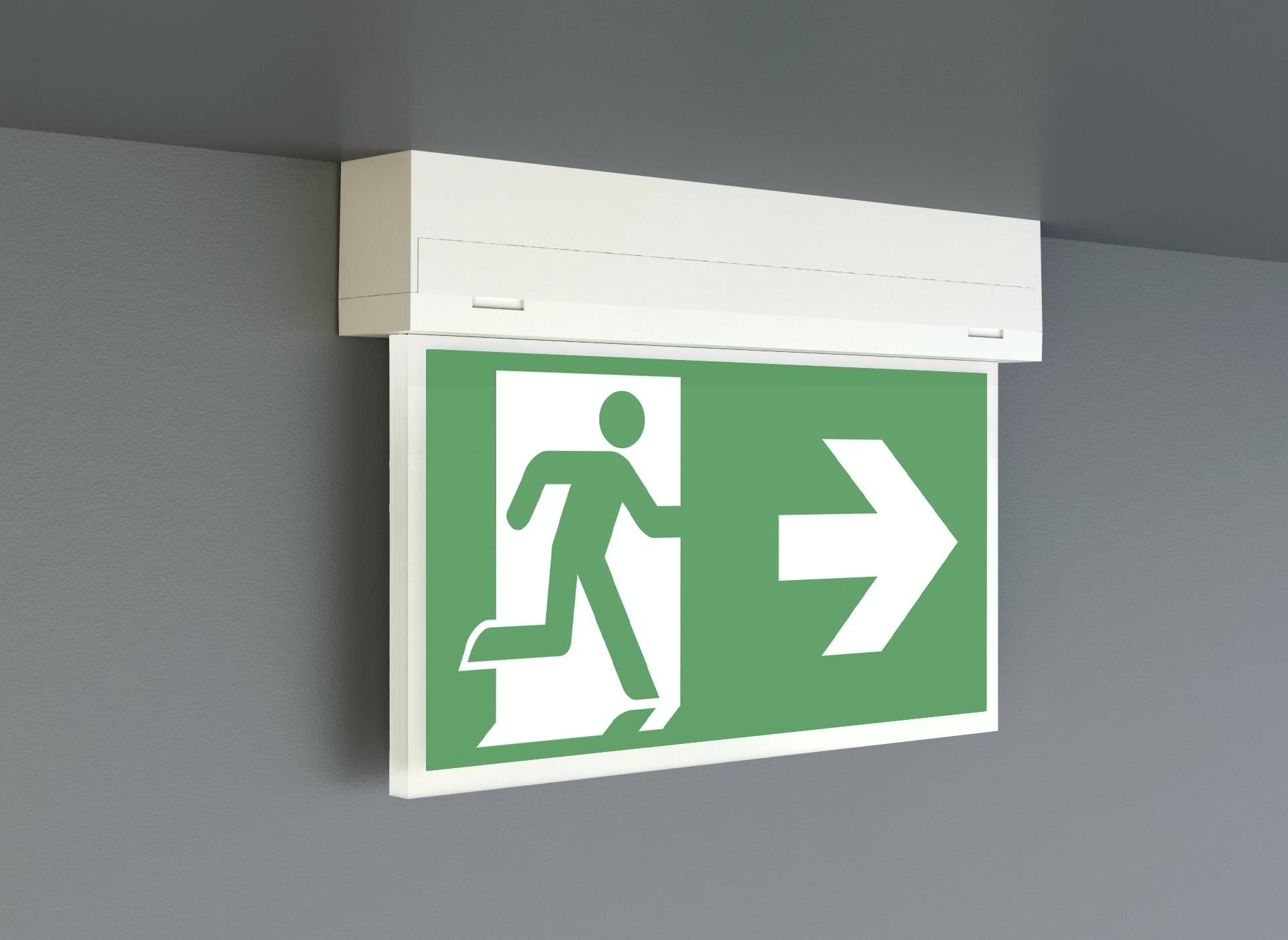

Innovative plastic rescue signs light for universal mounting. Suitable for one-or two-sided labeling. The lock mechanism between upper and lower part of the lamp ensures a harmonious and fully closed. The light is connected to the ceiling-mounted body, when closing the light the light is powered by plug contacts. This makes the installation much easier and allows a comfortable connection despite the small size of the lamp. Automatic monitoring of the safety light with SelfControl. Planning security is provided by logically specified pictograms. The pictograms in accordance with DIN ISO 7010 (right arrow, left and bottom) are included as standard in the delivery. On request, the labeling can also be done according to customer specifications. The universal mounting comprises of wall and ceiling mounting, as well as the possibility of ceiling mounting in connection with the available mounting frame.
