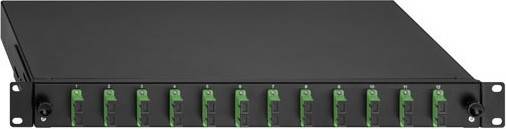

Rutenbeck 2280307240 FO splice box SC Equipped 1 U
EAN:
Part number:
Item no:
Technical specifications
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters 24
- With front panel: Yes
- With housing: Yes
- With pigtails: Yes
- Fibre type: Multimode 50/125
- Fibre class OM5
- Plug connector type outer: SC-DUPLEX
- Inner connector type: SC-DUPLEX
- Colour, black
- RAL number: 9005
- Mounting type 482.6 mm (19 inch) mounting
- Number of height units (RUs): 1
- Height: 44 mm
- Width 482 mm
- Depth: 245 mm
- Product type
FO splice box
SC
- Patch panel design
Equipped
Pigtail
Multimode OM5
- Fibre type
50/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Black
- Length
245 mm
- Width
482.00 mm
- Height
44.00 mm
- Depth
245.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3134017 Rutenbeck 2280307240 FO splice box SC Equipped 1 U
Description
BasicLine splice box, extendable, 19"
/1HE, 24xSC-D, OM4, erics, powder-coated steel casing, Factory port marking, extendable drawer solution, inclined downward in open condition, with snap closure on front side (push-pull), with 2 spliceboxes for accommodating 12 or 24 pigments, inserted crimp splice holder, prepared with pigtails inserted in 12-series - bundle incl. 2 x SC-D ceramic couplings, 48 SC fiber pigments G50/125 µm, 24 m, MM PC, grade B, With measurement protocol for all fibers incl. serial number, 2 x rear PG13,5/M20-screw joints (each 2 x right/left), 1 x PG13.5/M20-screw connection included in delivery, black (similar to RAL 9005)
This text is machine translated.
/1HE, 24xSC-D, OM4, erics, powder-coated steel casing, Factory port marking, extendable drawer solution, inclined downward in open condition, with snap closure on front side (push-pull), with 2 spliceboxes for accommodating 12 or 24 pigments, inserted crimp splice holder, prepared with pigtails inserted in 12-series - bundle incl. 2 x SC-D ceramic couplings, 48 SC fiber pigments G50/125 µm, 24 m, MM PC, grade B, With measurement protocol for all fibers incl. serial number, 2 x rear PG13,5/M20-screw joints (each 2 x right/left), 1 x PG13.5/M20-screw connection included in delivery, black (similar to RAL 9005)
This text is machine translated.
