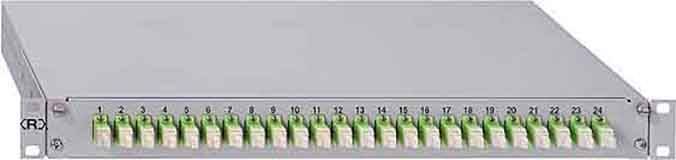

Rutenbeck 24xLC-D OM3 aqua FO splice box LC Equipped 1 U
EAN:
Part number:
Item no:
Technical specifications
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 24
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
LC
- Patch panel design
Equipped
Duplex
Multimode OM3
- Fibre type
50/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Grey
- Length
44 mm
- Width
231 mm
- Height
482 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292627 Rutenbeck 24xLC-D OM3 aqua FO splice box LC Equipped 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 24xLC-D, OM3, aqua, powder-coated steel sheet casing, factory port identification, with slide extension, extraction depth approx. 20 cm, can be tilted downwards when open, can be closed with knurled screws, 40 mm resettable box, 2 splice boxes for holding 12 or 24 pigtails, can be fitted with max. 4 spliceboxes (fixed), inserted spliceholder Ready to splice with offset and inserted pigtails including 24 x LC-D ceramic couplings, LC fiber pigtails G50/125 Ám, 2 m, MM PC, grade B, with measurement protocol for all fibers incl. serial number, 4 x rear-side PG16 screw connections (2 x right/left each), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
