1/2

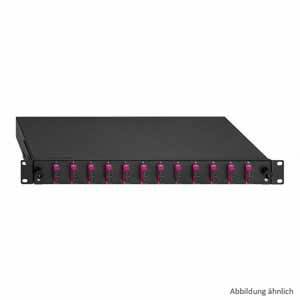

Rutenbeck 24xSC-D OM4 erikavio FO splice box 24 ports SC Equipped 1 U
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
FO splice box
SC
- Patch panel design
Equipped
Pigtail
- Port
24 ports
Multimode OM4
- Fibre type
50/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Grey
- Length
44 mm
- Width
231 mm
- Height
482 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2744276 Rutenbeck 24xSC-D OM4 erikavio FO splice box 24 ports SC Equipped 1 U
User & Safety Instructions
User & Safety Instructions 2744276 Rutenbeck 24xSC-D OM4 erikavio FO splice box 24 ports SC Equipped 1 U
Description
Basic line splicebox, extendable, 19"less than br/greater than/1HE, 24xSC-D, OM4, Powder coated steel casing Factory-side port marking Removable drawer solution in open condition inclined downward with front-side snap closure (push-pull) with 4 splice cartridges for the acceptance of 12 or 24 pigtails inserted crimp splice holder prepared with 12-piece pigtails including 22 x SC-D ceramic couplings 48 SC fiber pigments G50/125 µm, 2 m, MM PC, Grade C with measuring protocol for all fibers incl. Serial number 2 x PG13,5/M20-screw joints (each 2 x right/left) 1 x PG13.5/M20-screw connection included in delivery black (similar to RAL 9005)
