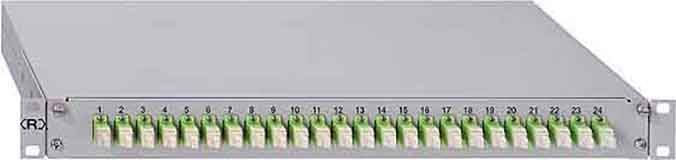

Rutenbeck 6xLC-D OM4 vio FO splice box LC Partly equipped 1 U
EAN:
Part number:
Item no:
Technical specifications
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 6
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
LC
- Patch panel design
Partly equipped
Duplex
Multimode OM4
- Fibre type
50/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Grey
- Length
44 mm
- Width
231 mm
- Height
482 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292629 Rutenbeck 6xLC-D OM4 vio FO splice box LC Partly equipped 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 6xLC-D, OM4, erika, powder-coated steel sheet casing, factory port identification, with slide extension, extraction depth approx. 20 cm, downward tilt when open, lockable with knurled screws, 40 mm resettable box, splice box for holding 12 or 24 pigtails, can be fitted with max. 4 spliceboxes (fixed), inserted splice holder Ready for splicing with offset and inserted pigtails incl. 6 x LC-D ceramic couplings, LC fiber pigtails G50/125 Ám, 2 m, MM PC, grade B, with measurement protocol for all fibers incl. serial number, 18 mounted blanking plugs, 4 x rear PG16 screw joints (2 x right/left), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
