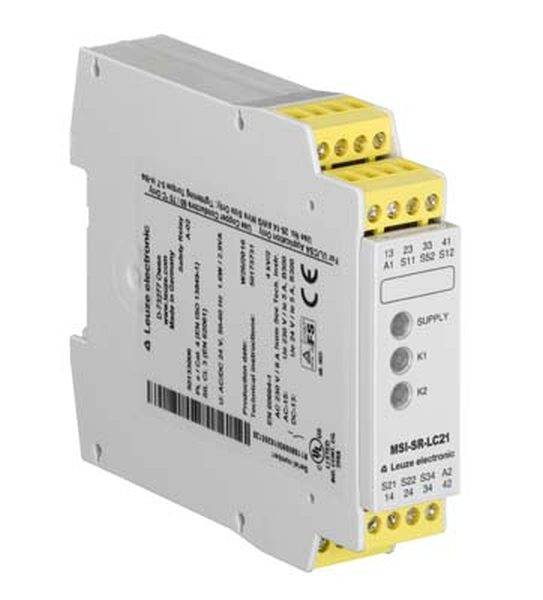

Safety relay 50133009 Leuze Electronic 2 makers (W x H x D) 22.5 x 106.5 x 114 mm Manual/auto reset 1 pc(s)
Packaging type
Piece
Product type
Safety relay
Connector
Spring force connector
Type
50133009
Contact type
2 makers
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Safety relay
- Type
50133009
- Connector
Spring force connector
- Contact type
2 makers
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Certification (sensors)
TÜV
- Features
Manual/auto reset
- Depth
114 mm
- Width
22.5 mm
- Height
106.5 mm
- Dim
(W x H x D) 22.5 x 106.5 x 114 mm
- Content
1 pc(s)
22.5 mm
Basic device
106.5 mm
114 mm
TRUE
FALSE
TRUE
TRUE
2
1
Spring clamp connection
TRUE
FALSE
None
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
FALSE
FALSE
Level e
Other
2-channel
3
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983259 Safety relay 50133009 Leuze Electronic 2 makers (W x H x D) 22.5 x 106.5 x 114 mm Manual/auto reset 1 pc(s)
Description
Application: Basic device for emergency off and protective door applications; SIL: 3, IEC 61508; Performance Level (PL): E, EN ISO 13849-1; Category: 4, EN ISO 13849; Contacts (normally open contact/opener): 2 NO contact / 1 NC contact; Connection: Spring power; Dimensions: 22.5 mm x 106.5 mm x 114 mm; Approvals: TUV Rheinland, c UL US; Functions: Monitoring of magnetic switches, monitoring of proximity switches, monitoring of emergency-OFF circuits, monitoring of opto-electronic protective devices, monitoring of position switches; restart: automatic, manual
