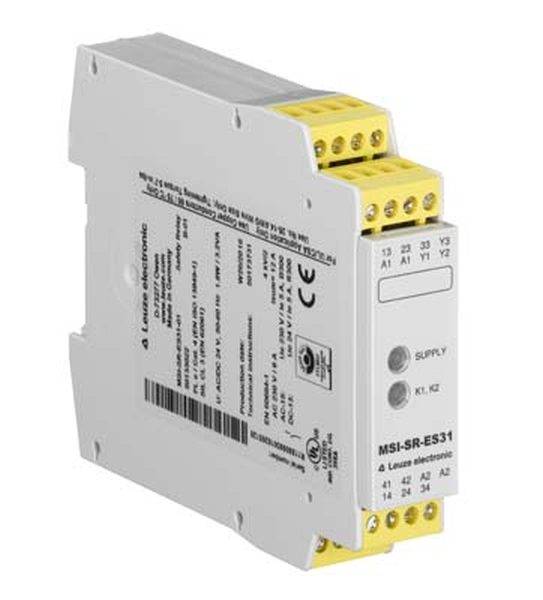

Safety relay 50133023 Leuze Electronic 3 makers (W x H x D) 22.5 x 106.5 x 114 mm 1 pc(s)
Product type
Safety relay
Connector
Spring force connector
Type
50133023
Contact type
3 makers
Performance level
PL d
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety relay
- Type
50133023
- Connector
Spring force connector
- Contact type
3 makers
- Performance level
PL d
- Safety integrity level
SIL 2
- Safety rating
3
- Certification (sensors)
cULus
- Depth
114 mm
- Width
22.5 mm
- Height
106.5 mm
- Dim
(W x H x D) 22.5 x 106.5 x 114 mm
- Content
1 pc(s)
22.5 mm
Basic device
106.5 mm
114 mm
TRUE
FALSE
TRUE
TRUE
3
1
Spring clamp connection
TRUE
FALSE
None
FALSE
FALSE
TRUE
TRUE
TRUE
TRUE
FALSE
FALSE
Level d
Other
Other
2
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983255 Safety relay 50133023 Leuze Electronic 3 makers (W x H x D) 22.5 x 106.5 x 114 mm 1 pc(s)
Description
Application: Basic device for emergency stop applications; functions: Monitoring of proximity switches, monitoring of emergency STOP circuits, monitoring of position switches; restart: Automatic, manual; SIL: 2, IEC 61508; Performance Level (PL): d, EN ISO 13849-1; Category: 3, EN ISO 13849; Contacts (normally open contact/normally closed contact): 3 normally open contact/1 normally closed contact; Connection: spring force; dimensions: 22.5 mm x 106.5 mm x 114 mm; Approvals: c UL US, TÜV Rheinland
