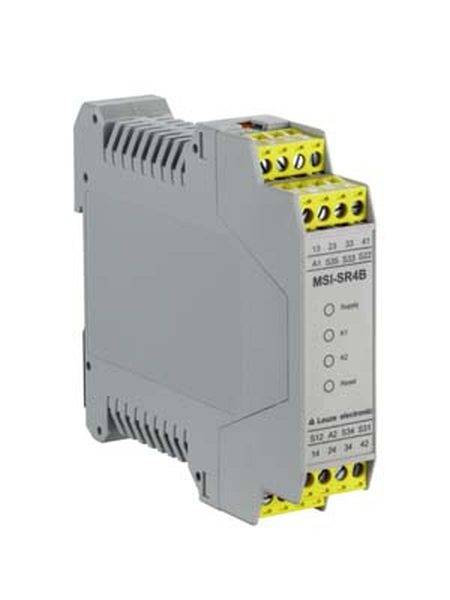

Safety relay 547950 Leuze Electronic 3 makers (W x H x D) 22.5 x 99 x 114.1 mm Manual/auto reset 1 pc(s)
Product type
Safety relay
Connector
Screw terminals
Type
547950
Response time
10 ms
Contact type
3 makers
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety relay
- Type
547950
- Connector
Screw terminals
- Response time
10 ms
- Contact type
3 makers
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Certification (sensors)
TÜV
- Features
Manual/auto reset
- Operating temperature (min.)
0 °C
- Operating temperature (max.)
55 °C
- Depth
114.1 mm
- Width
22.5 mm
- Height
99 mm
- Dim
(W x H x D) 22.5 x 99 x 114.1 mm
- Content
1 pc(s)
22.5 mm
Basic device
99 mm
114.1 mm
0.01-0.01 s
TRUE
FALSE
TRUE
TRUE
3
Screw connection
TRUE
FALSE
None
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
Level e
0
Other
3
- UKCA
yes
