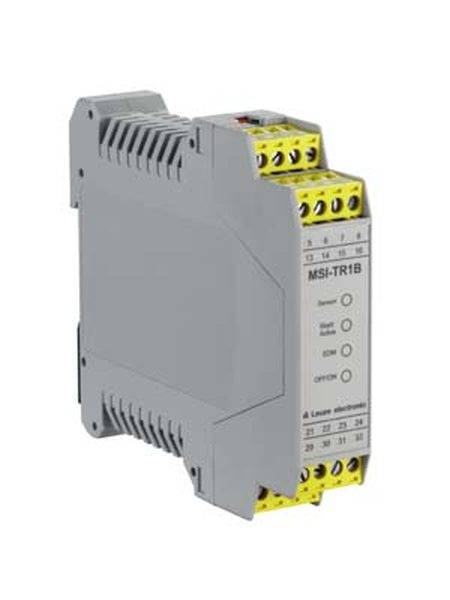

Safety relay 547958 Leuze Electronic 2 makers (W x H x D) 22.5 x 99 x 114.1 mm EDM 1 pc(s)
Product type
Safety relay
Connector
Screw terminals
Type
547958
Response time
20 ms
Contact type
2 makers
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety relay
- Type
547958
- Connector
Screw terminals
- Response time
20 ms
- Contact type
2 makers
- Performance level
PL c
- Safety integrity level
SIL 1
- Certification (sensors)
TÜV
- Features
EDM
- Operating temperature (min.)
-30 °C
- Operating temperature (max.)
60 °C
- Depth
114.1 mm
- Width
22.5 mm
- Height
99 mm
- Dim
(W x H x D) 22.5 x 99 x 114.1 mm
- Content
1 pc(s)
22.5 mm
Basic device
99 mm
114.1 mm
0.02-0.02 s
FALSE
FALSE
TRUE
TRUE
2
Screw connection
TRUE
FALSE
2
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
FALSE
Level c
Other
Other
1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2984074 Safety relay 547958 Leuze Electronic 2 makers (W x H x D) 22.5 x 99 x 114.1 mm EDM 1 pc(s)
