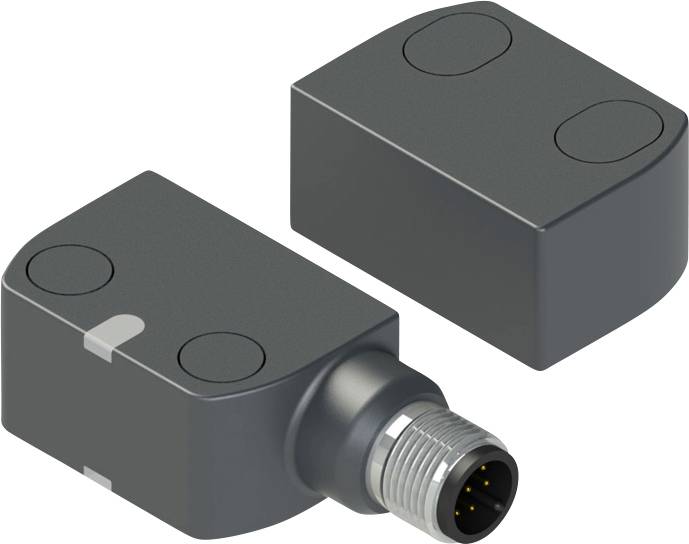

Safety sensor ST GD210MK-G1T Pizzato Elettrica Operating voltage: 24 V (W x H x D) 37 x 26 x 18 mm 1 pc(s)
Packaging type
Piece
Product type
Safety sensor
Connector
M12
Operating voltage
24 V
Type
ST GD210MK-G1T
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Safety sensor
- Type
ST GD210MK-G1T
- Connector
M12
- Operating voltage
24 V
- Switching voltage (max.)
24 V DC
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
70 °C
- Depth
18 mm
- Width
37 mm
- Height
26 mm
- Dim
(W x H x D) 37 x 26 x 18 mm
- Content
1 pc(s)
- Industrial packaging
Yes
Documents & Downloads
Datasheet
Datasheet 3737416 Safety sensor ST GD210MK-G1T Pizzato Elettrica Operating voltage: 24 V (W x H x D) 37 x 26 x 18 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3737416 Safety sensor ST GD210MK-G1T Pizzato Elettrica Operating voltage: 24 V (W x H x D) 37 x 26 x 18 mm 1 pc(s)
Description
Case:
Housing of Techno polymer, ST G series
Inputs and outputs:
2 safety outputs OS1-OS2,
1 signal output O3
Supply:
100–24 VDC
Type of wire or connector:
Integrated M12 plug connector made from stainless steel
Actuator coding stage:
High coding level
Actuator switching distance:
Operating distance 11 mm
Actuator type:
Dimensions 37x26x18 mm, lateral fastening (G)
Ambience temperature:
From -25 to +70°C.
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
This text is machine translated.
Housing of Techno polymer, ST G series
Inputs and outputs:
2 safety outputs OS1-OS2,
1 signal output O3
Supply:
100–24 VDC
Type of wire or connector:
Integrated M12 plug connector made from stainless steel
Actuator coding stage:
High coding level
Actuator switching distance:
Operating distance 11 mm
Actuator type:
Dimensions 37x26x18 mm, lateral fastening (G)
Ambience temperature:
From -25 to +70°C.
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
This text is machine translated.
