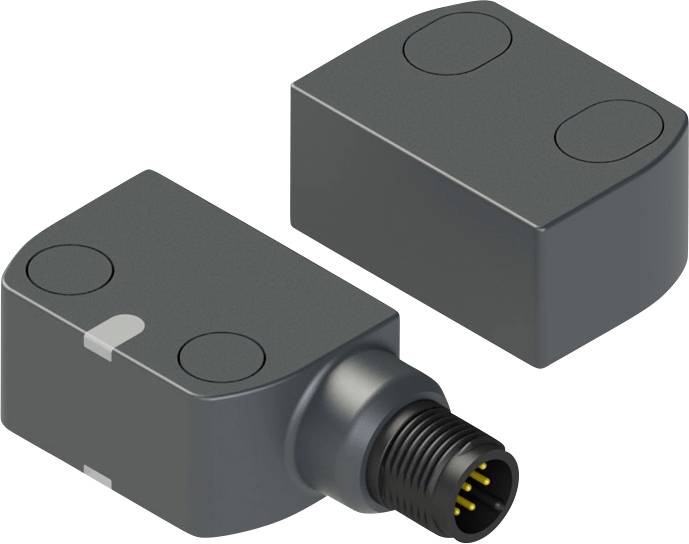

Safety sensor ST GD420MP-G0T Pizzato Elettrica Operating voltage: 24 V Incl. enclosure 1 pc(s)
Packaging type
Piece
Product type
Safety sensor
Connector
M12
Operating voltage
24 V
Type
ST GD420MP-G0T
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Safety sensor
- Type
ST GD420MP-G0T
- Connector
M12
- Operating voltage
24 V
- Features
Incl. enclosure
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
70 °C
- Content
1 pc(s)
- Industrial packaging
Yes
Documents & Downloads
Datasheet
Datasheet 3737414 Safety sensor ST GD420MP-G0T Pizzato Elettrica Operating voltage: 24 V Incl. enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3737414 Safety sensor ST GD420MP-G0T Pizzato Elettrica Operating voltage: 24 V Incl. enclosure 1 pc(s)
Description
Case:
Housing of Techno polymer, ST G series
Inputs and outputs:
2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signal output O3,
1 Programming inputs I3
Supply:
100–24 VDC
Type of wire or connector:
Integrated M12 connector from techno polymer
Actuator coding stage:
Low coding level
Actuator switching distance:
Operating distance 11 mm
Actuator type:
Dimensions 37x26x18 mm, lateral fastening (G)
Ambience temperature:
From -25 to +70°C.
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
This text is machine translated.
Housing of Techno polymer, ST G series
Inputs and outputs:
2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signal output O3,
1 Programming inputs I3
Supply:
100–24 VDC
Type of wire or connector:
Integrated M12 connector from techno polymer
Actuator coding stage:
Low coding level
Actuator switching distance:
Operating distance 11 mm
Actuator type:
Dimensions 37x26x18 mm, lateral fastening (G)
Ambience temperature:
From -25 to +70°C.
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
This text is machine translated.
