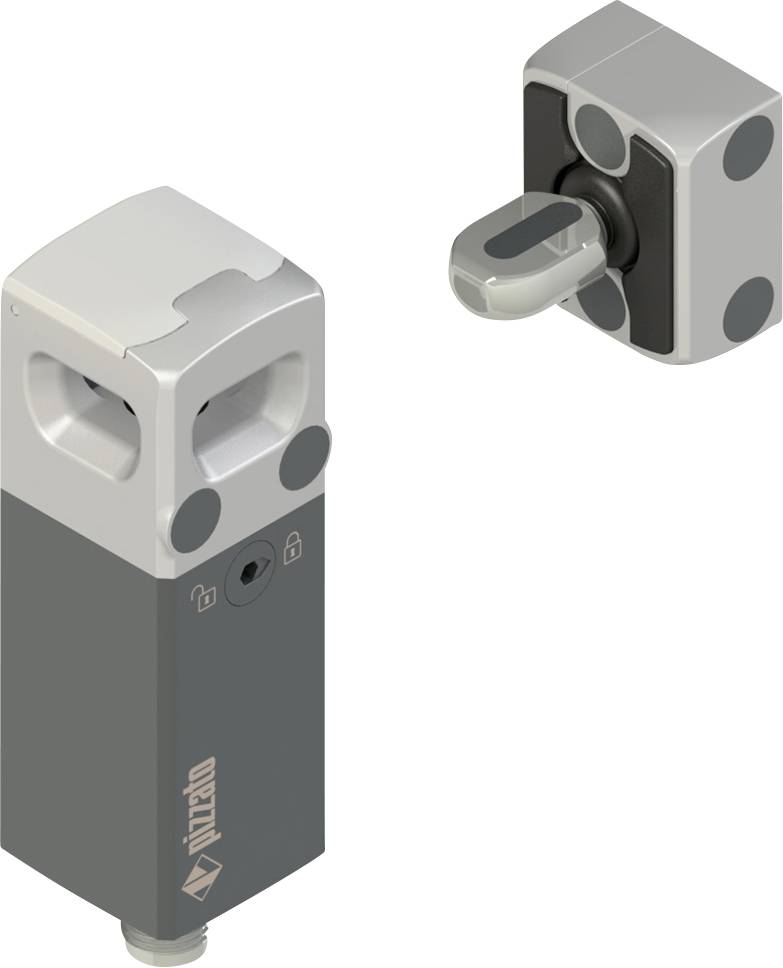

Safety switch NX B31AZ1SMK-F61 Pizzato Elettrica Operating voltage: 24 V DC 1 bistable contact (W x H x D) 30 x 94.3 x 3
Packaging type
Piece
Product type
Safety switch
Connector
M12 (12-pin)
Operating voltage
24 V DC
Type
NX B31AZ1SMK-F61
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Safety switch
- Type
NX B31AZ1SMK-F61
- Connector
M12 (12-pin)
- Operating voltage
24 V DC
- Min. operating voltage
21.6 V
- Max. operating voltage
26.4 V
- Operating voltage
21.6 - 26.4 V
- Contact type
1 bistable contact
- Switching current (max.)
0.25 A
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Certification (sensors)
CE
cULus
TÜV
- Features
LED indicator
IP67
IP69K
- Operating temperature (min.)
-20 °C
- Operating temperature (max.)
50 °C
- Depth
30 mm
- Width
30 mm
- Height
94.3 mm
- Dim
(W x H x D) 30 x 94.3 x 30 mm
- Content
1 pc(s)
- Industrial packaging
Yes
Documents & Downloads
Datasheet
Datasheet 3737401 Safety switch NX B31AZ1SMK-F61 Pizzato Elettrica Operating voltage: 24 V DC 1 bistable contact (W x H x D) 30 x 94.3 x 3
User & Safety Instructions
User & Safety Instructions 3737401 Safety switch NX B31AZ1SMK-F61 Pizzato Elettrica Operating voltage: 24 V DC 1 bistable contact (W x H x D) 30 x 94.3 x 3
Description
Mode 1 of the bi-stable electromagnet. Activation of OS1 and OS2 with inserted and locked actuator.
Inputs and outputs:
2 safety inputs IS1, IS2
2 safety outputs OS1, OS2
1 signal output for inserted actuator O3
1 signal output for locked actuator O4
2 activation inputs electromagnetic IE1, IE2
1 Reset input I3
Actuator detection:
Pre-programmed actuator (supplied only in kit with actuator)
Auxiliary unlock:
Unlock with front hex key
Type of integrated cable or connector:
M12 plug connector, 12-pin
Actuator:
Complete with actuator with high coding level VN NX-F61
Illuminated RGB LED cover with multi-colored signaling
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
This text is machine translated.
Inputs and outputs:
2 safety inputs IS1, IS2
2 safety outputs OS1, OS2
1 signal output for inserted actuator O3
1 signal output for locked actuator O4
2 activation inputs electromagnetic IE1, IE2
1 Reset input I3
Actuator detection:
Pre-programmed actuator (supplied only in kit with actuator)
Auxiliary unlock:
Unlock with front hex key
Type of integrated cable or connector:
M12 plug connector, 12-pin
Actuator:
Complete with actuator with high coding level VN NX-F61
Illuminated RGB LED cover with multi-colored signaling
Protection type:
IP67 according to EN 60529 and IP69K according to ISO 20653
This text is machine translated.
