Name: Samsung 8 TB Internal M.2 PCIe NVMe SSD MZ-VAP8T0BW
Brand: Samsung
SKU: 3453196

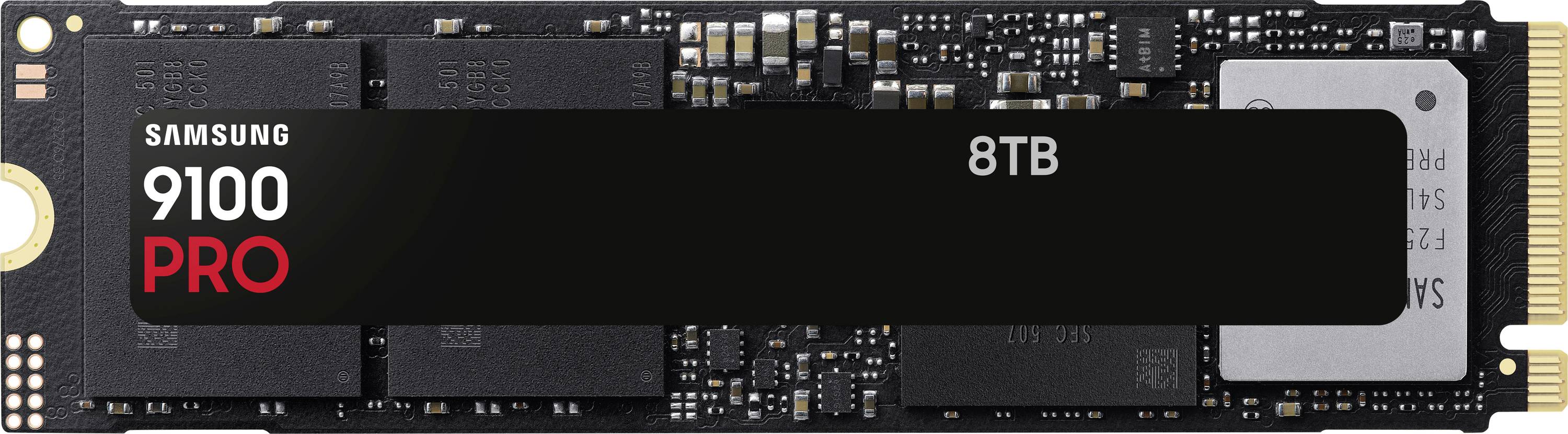

Samsung 9100 PRO 8TB solid-state drive, black with gold connector, featuring compact design for high-capacity storage solutions.

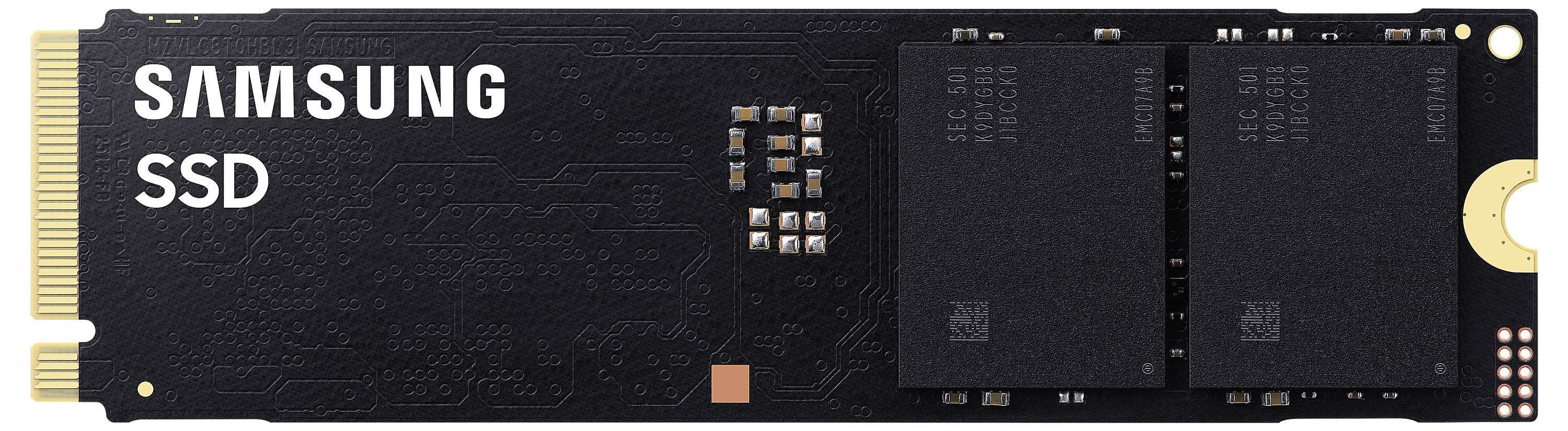

'A Samsung SSD with a black circuit board and gold connector, featuring two main chips and several smaller components.'

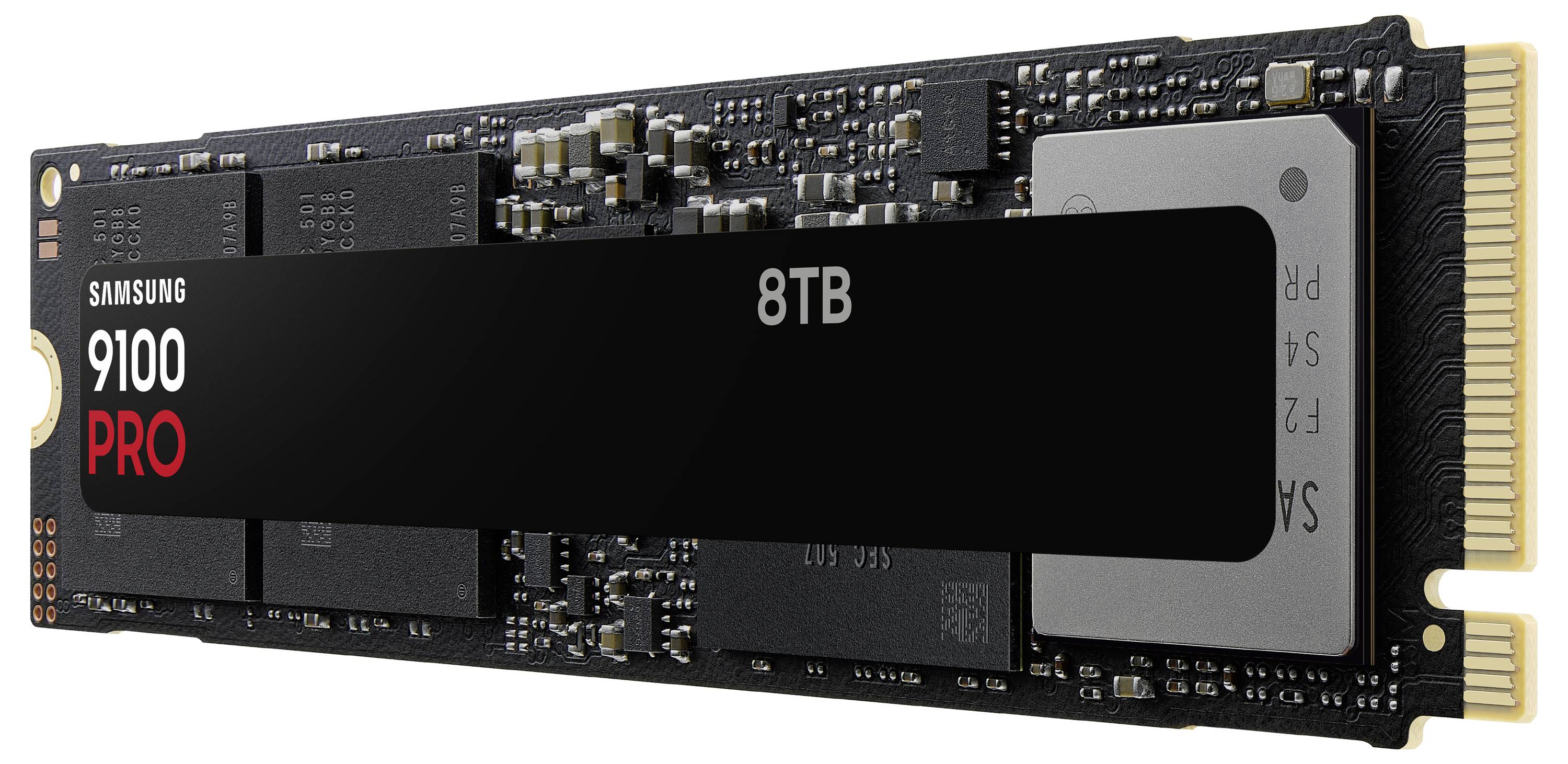

A Samsung 9100 PRO 8TB NVMe solid-state drive, showcasing its black circuit board and gold connector.

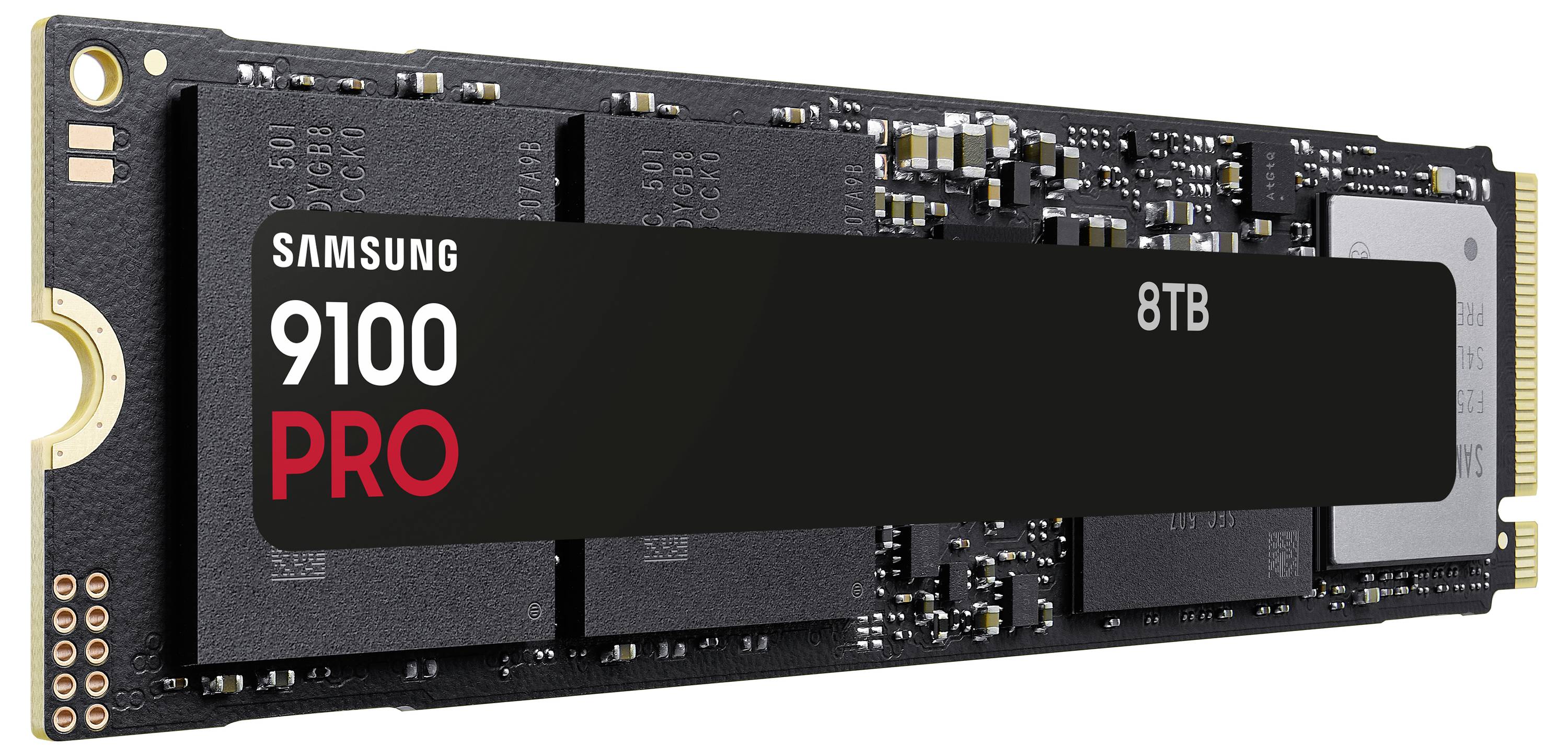

A black Samsung 9100 PRO SSD with 8TB capacity, showing circuitry and connectors, designed for high-speed data storage.

'Samsung 9100 PRO PCIe 5.0 x4 NVMe M.2 SSD, read speed up to 14,800 MB/s, 8TB capacity.'

The image shows packaging for a Samsung SSD 9100 PRO. It includes warranty information in multiple languages and certification logos.

Samsung 9100 PRO PCIe 5.0 x4 NVMe M.2 SSD packaging showing 8TB capacity. Highlights read speed up to 14,800 MB/s.

The image shows the Samsung 9100 PRO 8TB PCIe 5.0 x4 NVMe M.2 SSD with a read speed of up to 14,800 MB/s. Packaging and SSD are both displayed.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Samsung MZ-VAP8T0 8 TB M.2 PCI Express 5.0 NVMe V-NAND TLC

8 TB M.2 PCI EXPRESS 5.0
Read speed 14800 MB/s 2200000 IOPS
Writing speed 13400 MB/s 2600000 IOPS
V-NAND TLC NVME
Hardware encryption, 256-bit AES
S.M.A.R.T. Support TRIM-support
Component for: PC/Laptop

Technical specifications

SSD form factor M.2
PCI Express 5.0 interface
STORAGE TYPE V-NAND TLC
Component for: PC/Laptop

Product type: Internal M.2 PCIe NVMe SSD

Form factor: M.2 Module

Interfaces: PCI-Express

Memory capacity: 8 TB

Reading: 14800 MBps

Writing: 13400 MBps

IOPS read speed (max.): 2200000 IOPS

IOPS write speed (max.): 2600000 IOPS

Features: V-NAND TLC
S.M.A.R.T. support
256-bit AES encryption

Width: 80.2 mm

Height: 22.1 mm

Depth: 3.88 mm

Operating temperature (max.): 70 °C

Operating temperature (min.): 0 °C

Operating temperature range: 0 up to 70 °C

Charging capacity (max.): 7.5 W

Charging capacity (min.): 2.5 W

Safety: 256-bit AES

SSD: 8 TB

UKCA: yes

Hardware encryption: yes

Operating temperature (T-T): 0 - 70 °C

Operating shock: 1500 G

NVMe: yes

DevSlp (device sleep) support: yes

Mean time between failures (MTBF): 1500000 h

Operating voltage: 3.3 V

S.M.A.R.T. support: yes

TRIM support: yes

Documents & Downloads

Datasheet

Datasheet 3453196 Samsung 8 TB Internal M.2 PCIe NVMe SSD MZ-VAP8T0BW

User & Safety Instructions

User & Safety Instructions 3453196 Samsung 8 TB Internal M.2 PCIe NVMe SSD MZ-VAP8T0BW

Description

Next-level speed with PCIe® 5.0
Push PCIe® 5.0 performance to Maximum. The 9100 PRO achieves fast sequential read/write speeds of up to 14,800/13,400 MB/s, twice as fast as the 990 PRO. Leave the limits of Gen4 behind you with random read/write speeds of up to 2.200K/2.600K IOPS that are only possible with Gen5.

More power, less waiting time – even for parallel processes
Move the limits of your productivity. Breathtaking random read/write speeds enable fast parallel processing of numerous fragmented data – with up to 2.200K/2.600K IOPS. Experience output and immediate charging time – for huge games, power-intensive tasks and also AI-applications.

With PCIe 5.0 top set up for AI
Intelligence defines performance. Work and leisure opportunities – with an integrated AI-PC and AI content generation. Powered by the breathtaking random read/write speeds of the 9100 PRO up to 2.200K/2.600K IOPS. Fast charging time, smooth game play, seamless performance.

Impressive all around
Handle video editing, 3D design and even long streaming sessions with ease thanks to the PCIe® 5.0 interfaces. Experience modern performance. Anytime, anywhere and on many devices. Select the memory you need - with a capacity of up to 8 TB.

Impressive heat management
High performance without interruptions. The advanced 5 nm controller Power architecture improves energy efficiency by up to 49% as compared to 990 PRO. Thanks to impressive heat management, you can stay in the flow – because demanding applications can run with the maximum possible performance of PCIe® 5.0.

Samsung Magician software
Let your SSD work like magic. The optimization tools of the Samsung Magician software ensure optimal SSD performance. Migrate all your data safely and easily for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and receive the latest firmware updates.It is recommended that you always update the firmware of your Samsung SSDs to the latest version.

Bring modern technology to life
For decades the Samsung NAND flash memory is a motor for modern technologies, which have changed our daily lives. NAND flash technology drives our SSDs and creates space for the next push of modern technology.

PCIe 5.0 Performance
Up to 14,800/13,400 MB/s sequential speeds – twice as fast as the 990 PRO.

More memory, more experiences
Huge capacity with high compatibility.

Modern performance & heat management
Up to 49% improved energy efficiency thanks to optimized heat regulation.
