Name: Samsung 990 EVO Plus 4 TB NVMe/PCIe M.2 internal SSD M.2 NVMe PCIe 4.0 x4, M.2 NVMe PCIe 5.0 x2 Retail MZ-V9S4T0BW
Brand: Samsung
SKU: 3337789

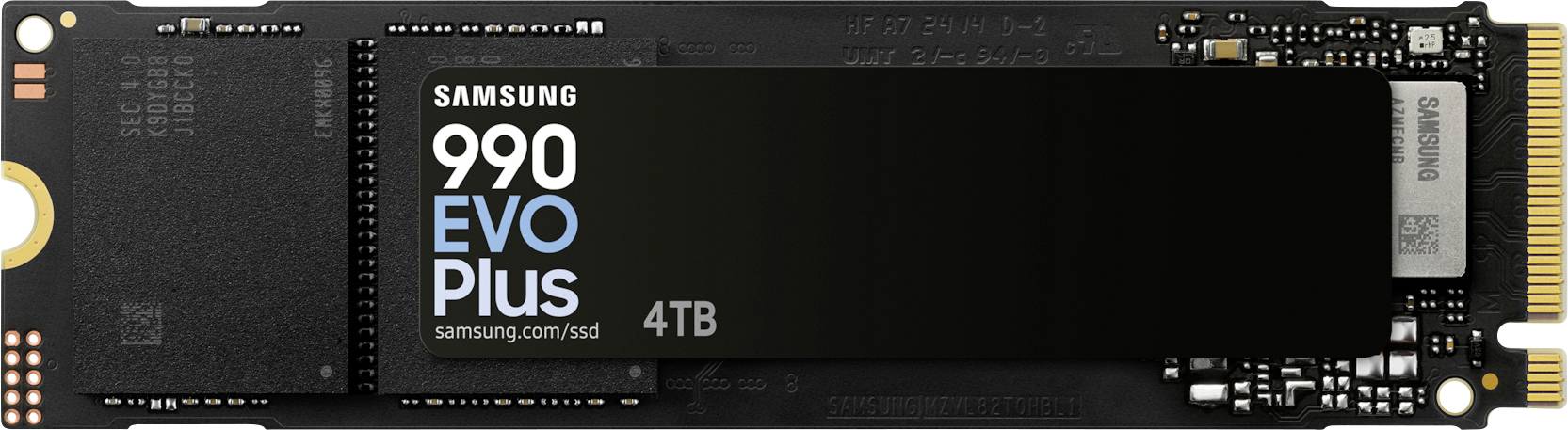

SSD drive 'Samsung 990 EVO Plus' with 4 TB storage capacity, shown in black finish with gold connectors.

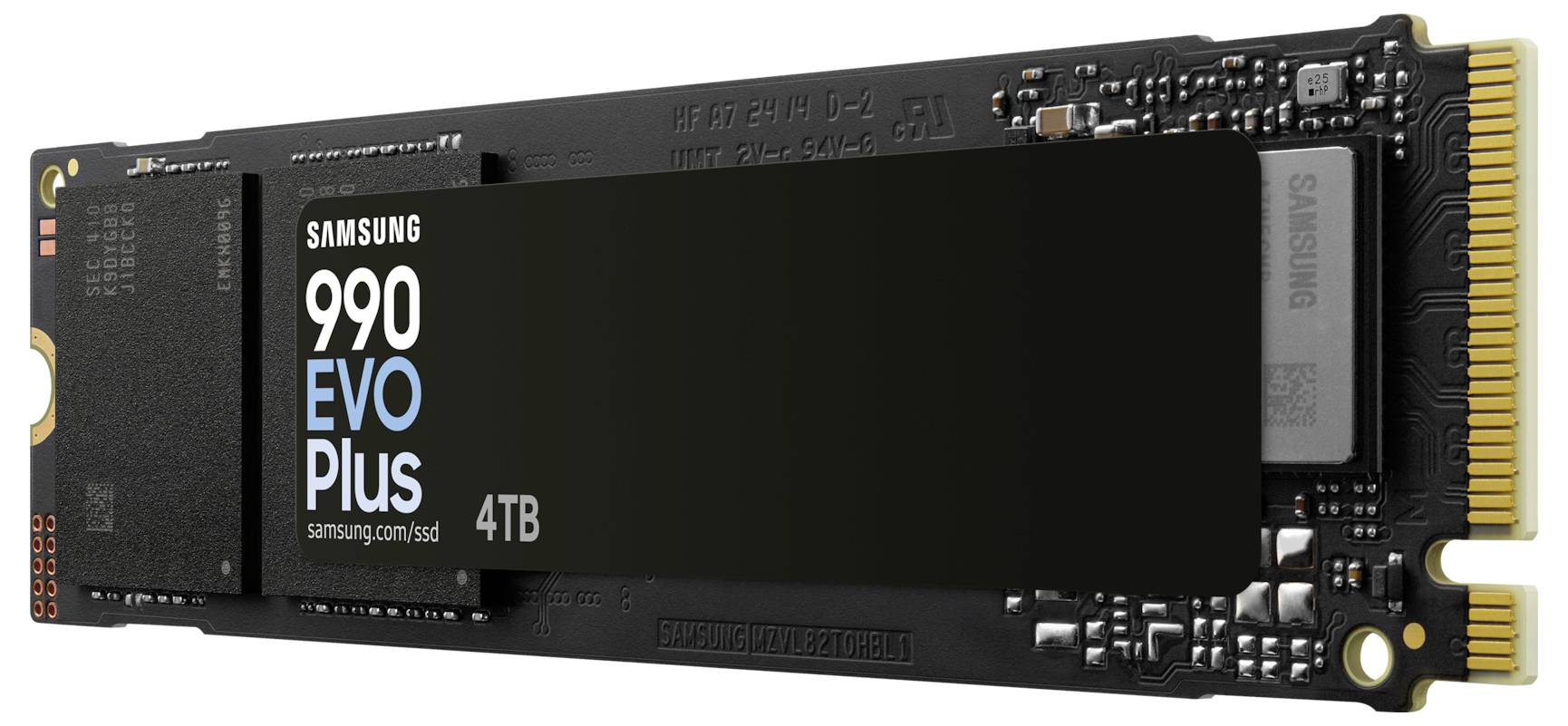

A black M.2 SSD with the label 'Samsung 990 EVO Plus 4TB'. It shows the slim design and gold-coloured contacts.

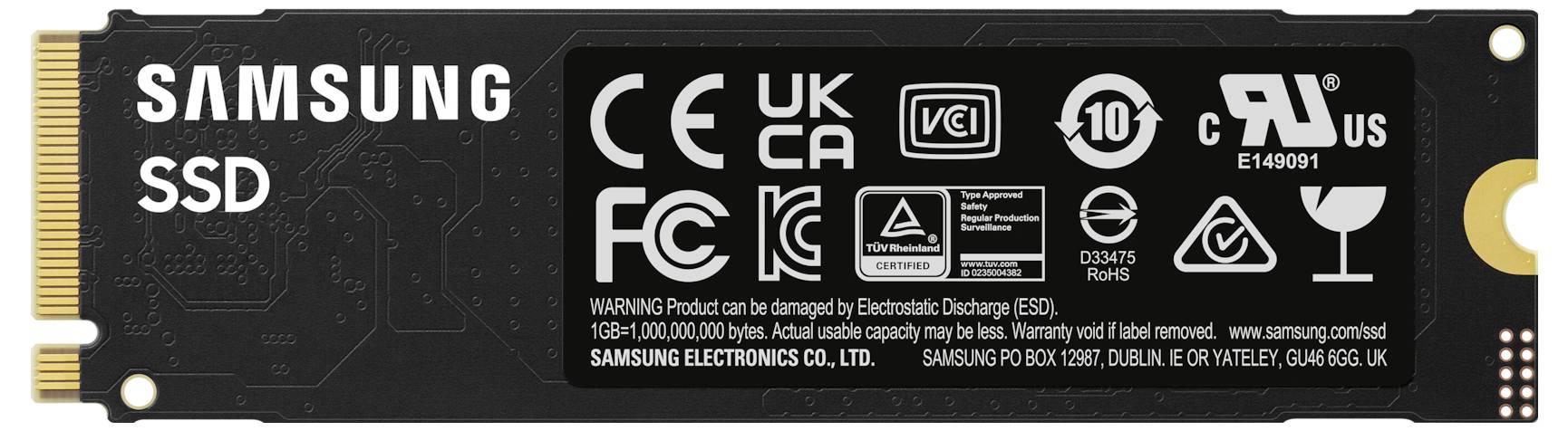

Black NVMe M.2 SSD from Samsung, showing labels for brands, security certificates, and technical specifications for use.

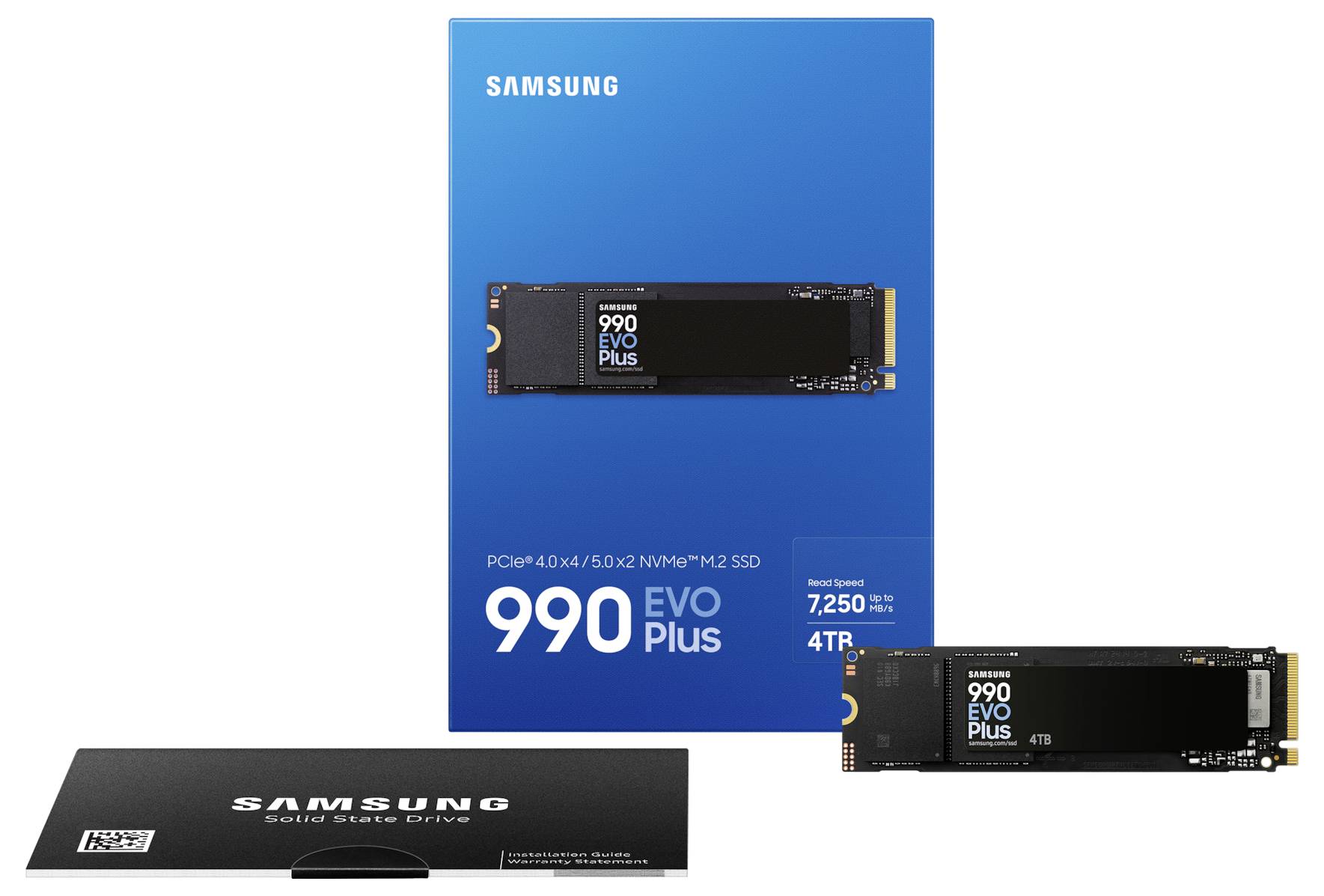

The image shows a Samsung 990 EVO Plus NVMe M.2 SSD with 4TB storage. On the packaging, it states '7,250 MB/s'.

Samsung 990 EVO Plus 4 TB NVMe/PCIe M.2 internal SSD M.2 NVMe PCIe 4.0 x4, M.2 NVMe PCIe 5.0 x2 Retail MZ-V9S4T0BW-5

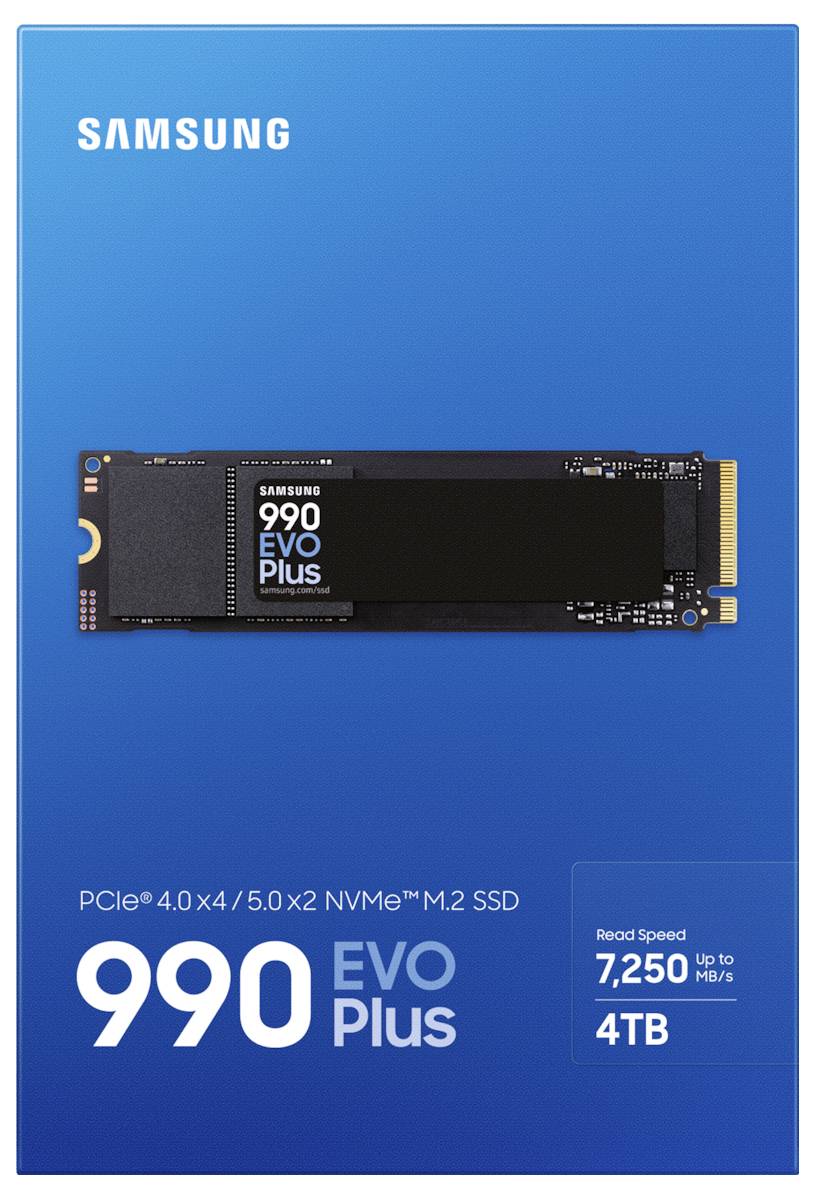

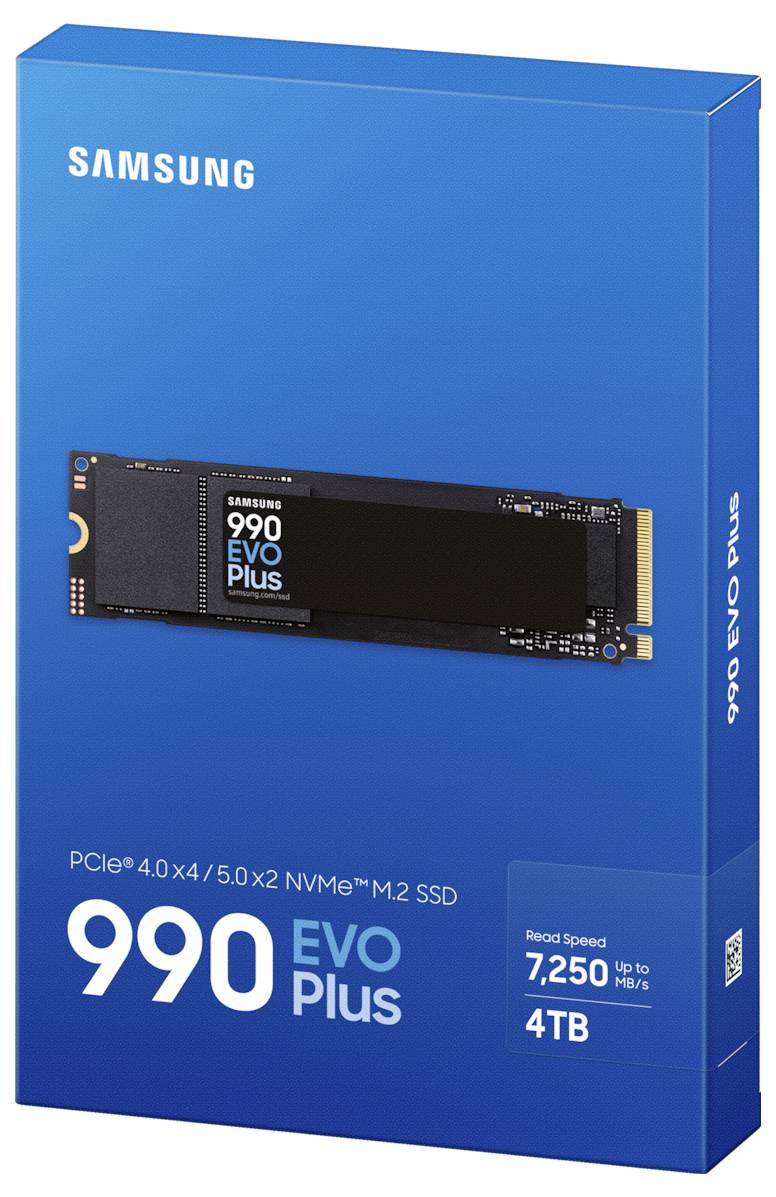

The packaging of a Samsung 990 EVO Plus NVMe M.2 SSD with 4 TB storage and read speeds of up to 7,250 MB/s.

1/7

Unavailable

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Samsung 990 EVO Plus NVMe SSD 4 TB

Suitable for powerful PCs, slim laptops and games consoles
Compatible with PCIe® 4.0 x4 and PCIe® 5.0 x2
Fast: Sequential read and write speeds of up to 7,250 / 6,300 MB/s.
Efficient: 73% per watt improved power as compared to 990 EVO
Constant: Smart temperature management for consistently high performance

Technical specifications

Product type: NVMe/PCIe M.2 internal SSD

Series: 990 EVO Plus

Form factor: M.2 Module 2280

Interfaces: M.2 NVMe PCIe 4.0 x4
M.2 NVMe PCIe 5.0 x2

Memory capacity: 4 TB

Reading: 7150 MBps

Writing: 6300 MBps

IOPS read speed (max.): 850000 IOPS

IOPS write speed (max.): 1350000 IOPS

Features: NVMe 2.0
V-NAND TLC
S.M.A.R.T. support
TRIM support
TurboWrite 2.0

Width: 80.2 mm

Height: 22.1 mm

Depth: 2.38 mm

Type: Retail

Factory colour: Multicolour

Screen size diagonal (inches): 0 inch

Keyboard layout: English, QWERTY

Weight: 5

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3337789 Samsung 990 EVO Plus 4 TB NVMe/PCIe M.2 internal SSD M.2 NVMe PCIe 4.0 x4, M.2 NVMe PCIe 5.0 x2 Retail MZ-V9S4T0BW

Description

Rapidly through your day
Complete your tasks in no time at all. The 990 EVO Plus with the latest NAND-flash memory offers sequential read/write speeds of up to 7,250/6,300 MB/s. Large files, quickly transferred.

With cool Power through the day
Much efficiency for high performance. The nickel-coated controller increases the MB/s per watt as compared to the 990 EVO by up to 73% and achieves the same power and heat control at less power consumption. Focus on your work or gaming without worrying about overheating or battery life.

Plenty of space. Much speed.
Use the power of your drive with intelligent TurboWrite 2.0. Quickly process large amounts of data and handle demanding graphics with a large TurboWrite range, now available with a capacity of up to 4 TB.

Samsung Magician software
Magical modern drive management with the Samsung Magician software. The easy-to-use software solution can help you keep an eye on your SSD. This allows you to keep your drive up to date with updates, monitor status parameters and speed, and adjust performance.

It is recommended that you always update the firmware of your Samsung SSDs to the latest version.

Bring modern technology to life
For decades the Samsung NAND flash memory is a motor for modern technologies, which have changed our daily lives. NAND flash technology drives our SSDs and creates space for the next push of modern technology.

Power
Sequential read speeds of up to 7,250 MB/s. Up to 45% faster than the 990 EVO.

Energy efficiency
Up to 73% higher energy efficiency as compared to 990 EVO for more MB/s per watt at constant power and heat control.

Versatility
High capacity of up to 4 TB and fast intelligent TurboWrite 2.0 with extended TurboWrite range.

This text is machine translated.
