Scangrip 03.5243 Line-Light C+R LED (monochrome) Work light rechargeable, mains-powered 600 lm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

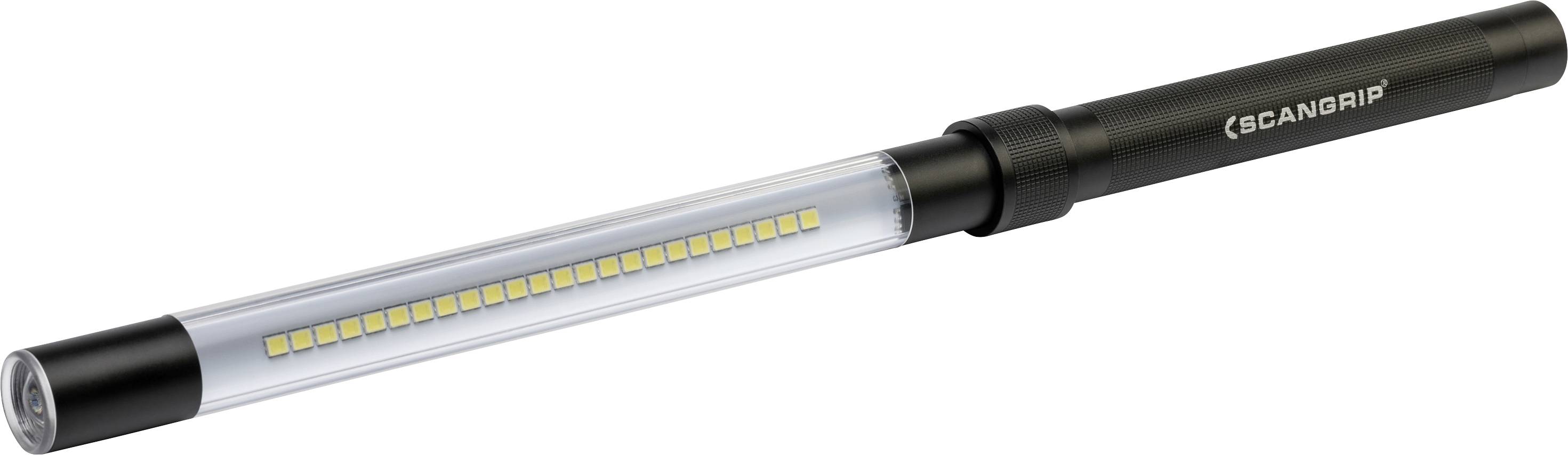

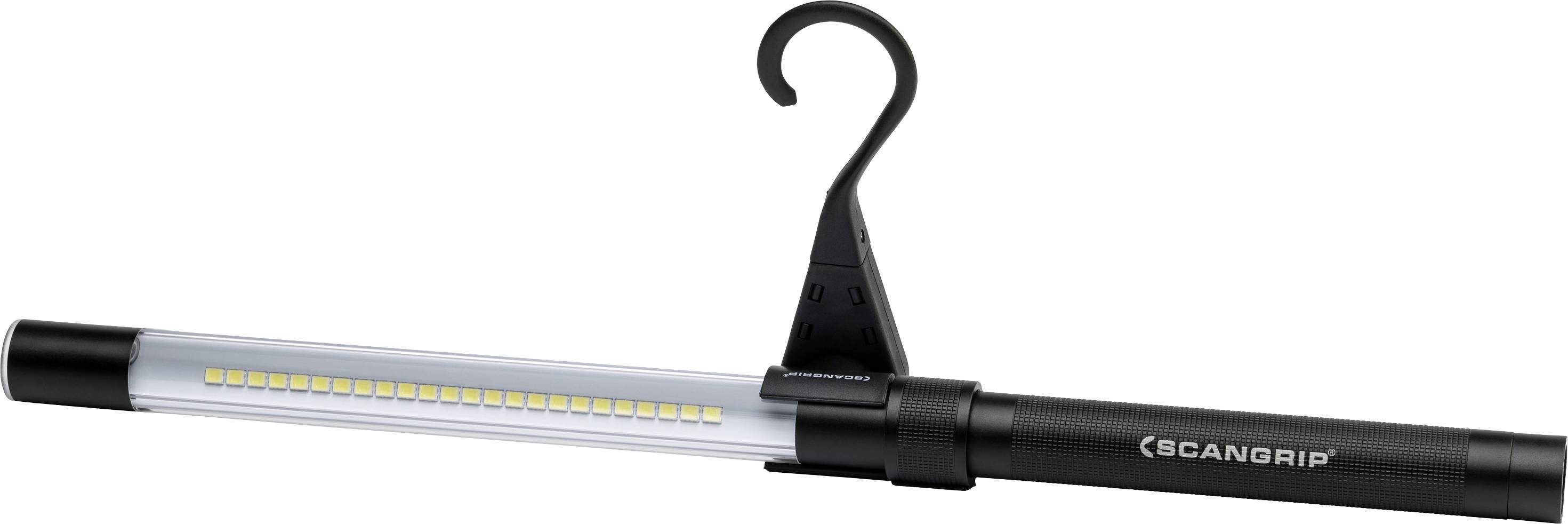

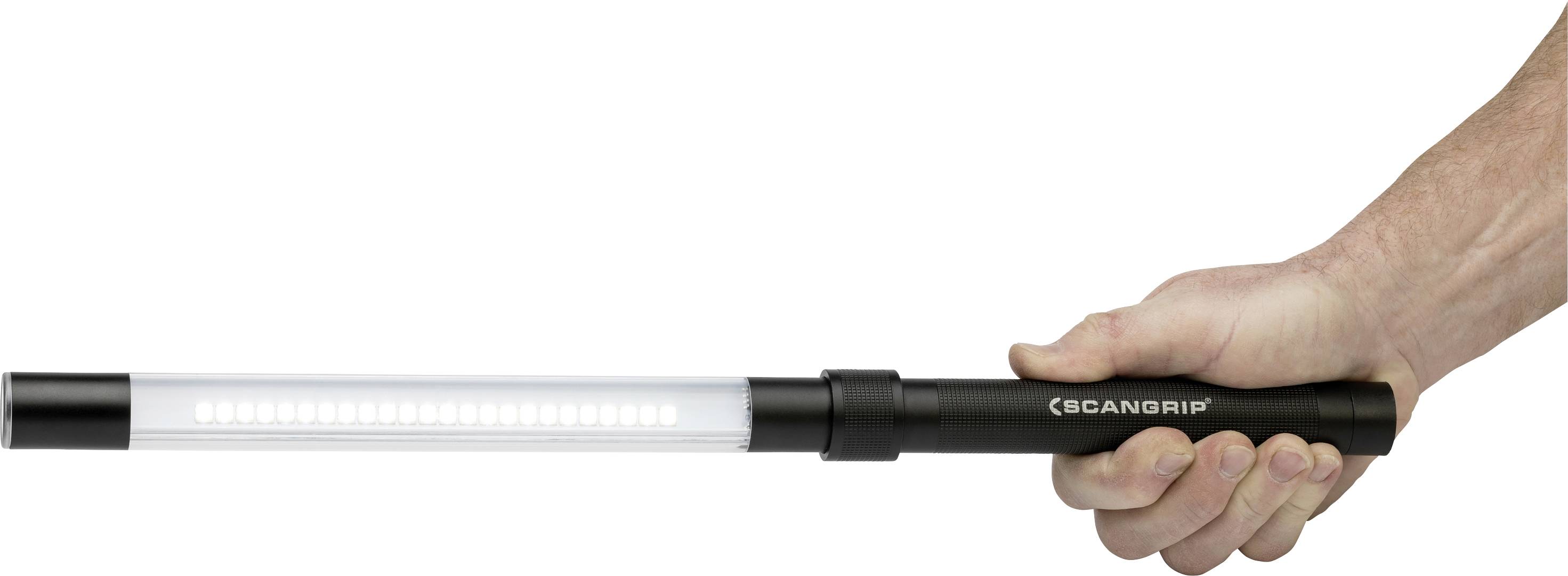

Hand lamp Line-Light C+R
- Inspection lamp and torch in one
- Battery operation up to 8 hours
- Dust- and waterproof
- Magnetic switch
- Ultra slim design Ø 25 mm
Technical specifications
- Side main light: 24 SMD LEDs, light intensity max. 1300 Lux, beam angle 75°

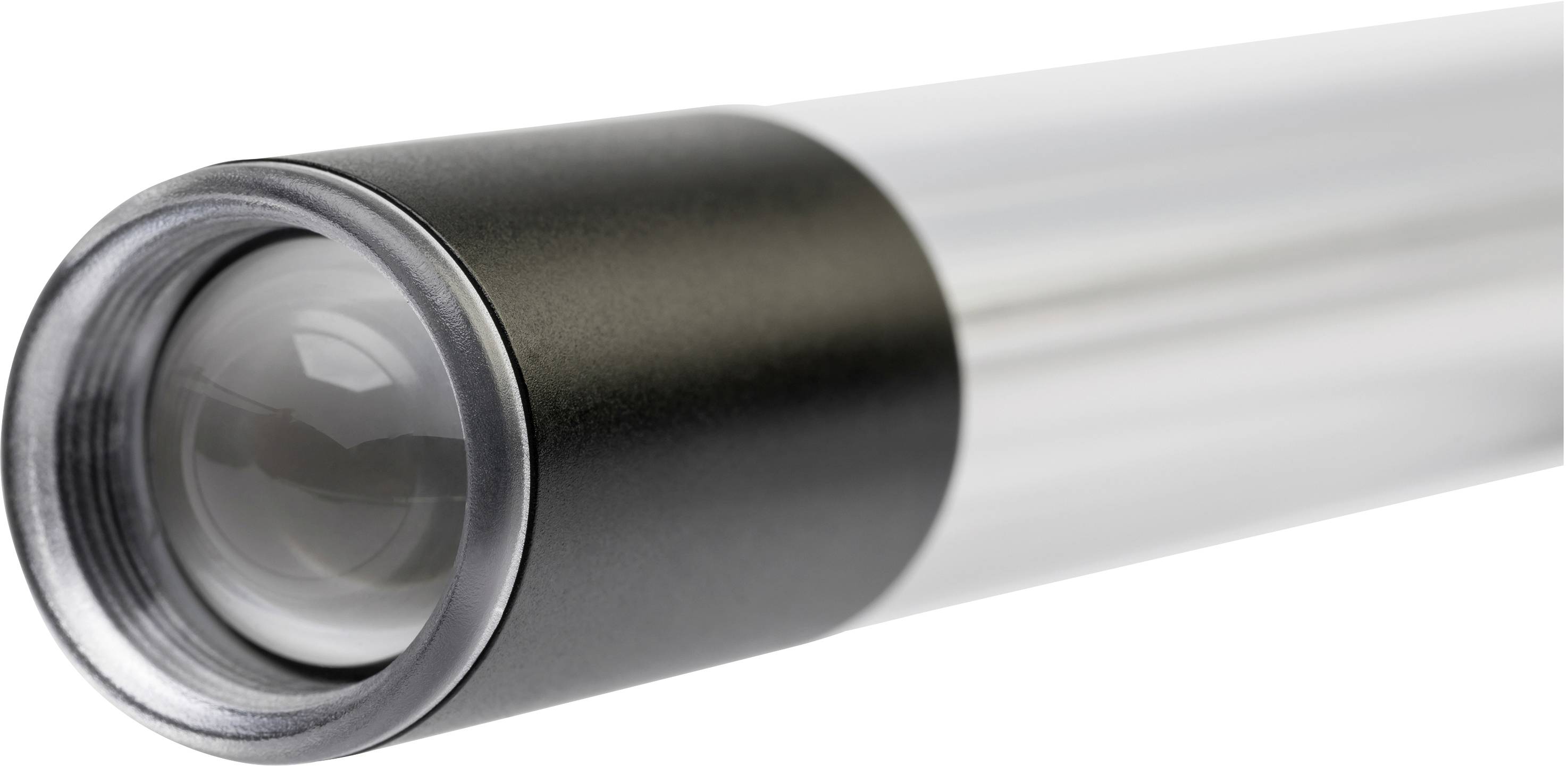

- Torch: Luminous flux 150 lm, light intensity max. 1500 Lux, Cree XP-G2 LED, radiation illumination 50°
- Color rendering index> 80 CRI
- Protection class IP65
- Shock resistance IK07
- Temperature range: -10 to +40ºC
- Dim
(Ø x L) 25 mm x 461 mm
- Product type
Work light
- LEDs
25
- Work light features
Battery status indicator
Waterproof
- Bulb type
LED (monochrome)
- Technology
Li-ion
- Operating voltage
5 V via USB
100 - 240 V
- Factory colour
Black
- Colour temperature type
6000 K
- Weight
1000 g
- Capacity (mAh, Ah)
5200 mAh
- Charging time
4 h
- Luminous flux
600 lm
- Length
461 mm
- (Ø)
25 mm
- Power supply (LOV)
rechargeable
mains-powered
Doesn't apply
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2253788 Scangrip 03.5243 Line-Light C+R LED (monochrome) Work light rechargeable, mains-powered 600 lm
User & Safety Instructions
User & Safety Instructions 2253788 Scangrip 03.5243 Line-Light C+R LED (monochrome) Work light rechargeable, mains-powered 600 lm
Description

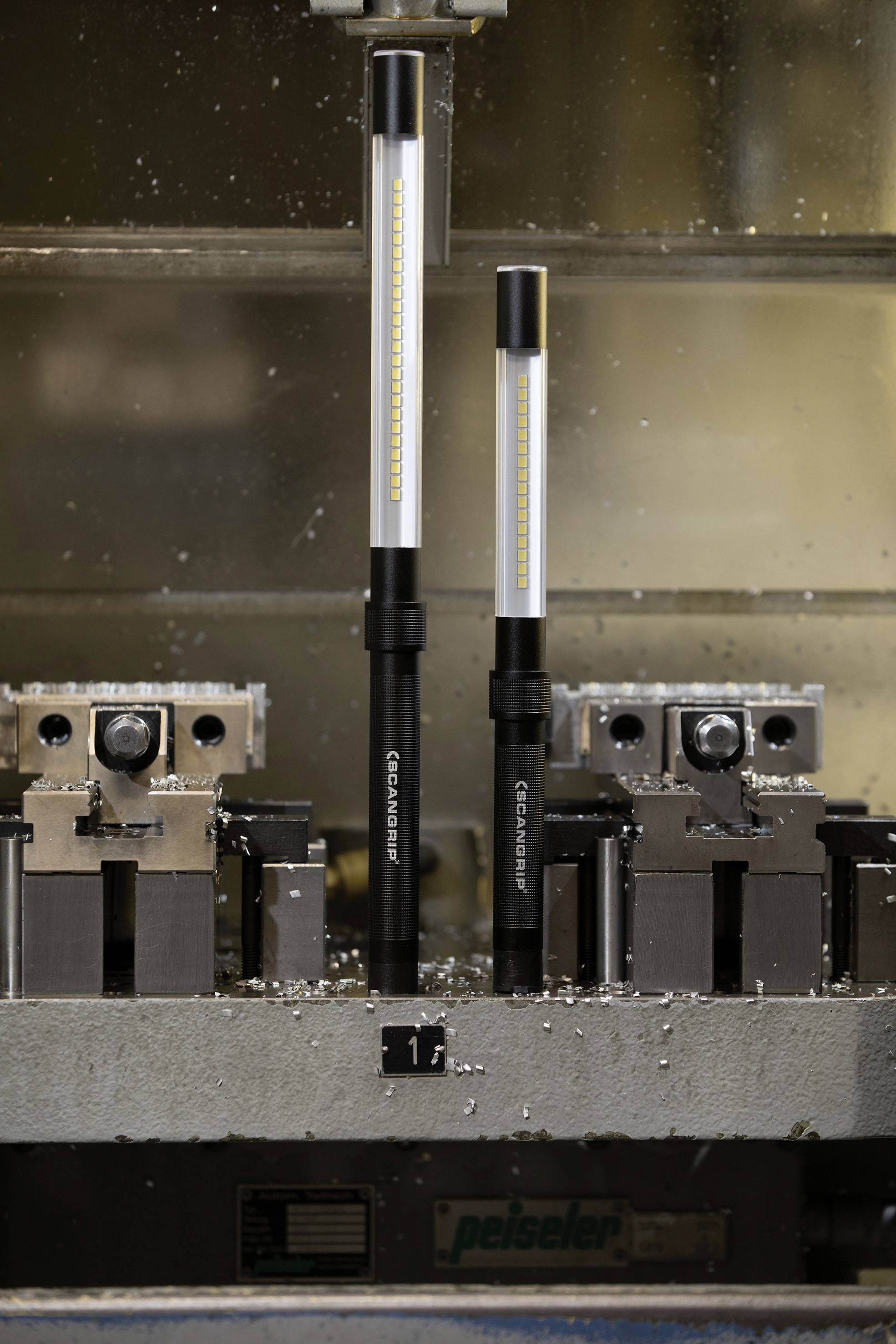

The particularly slim design enables the illumination of difficult to access areas.

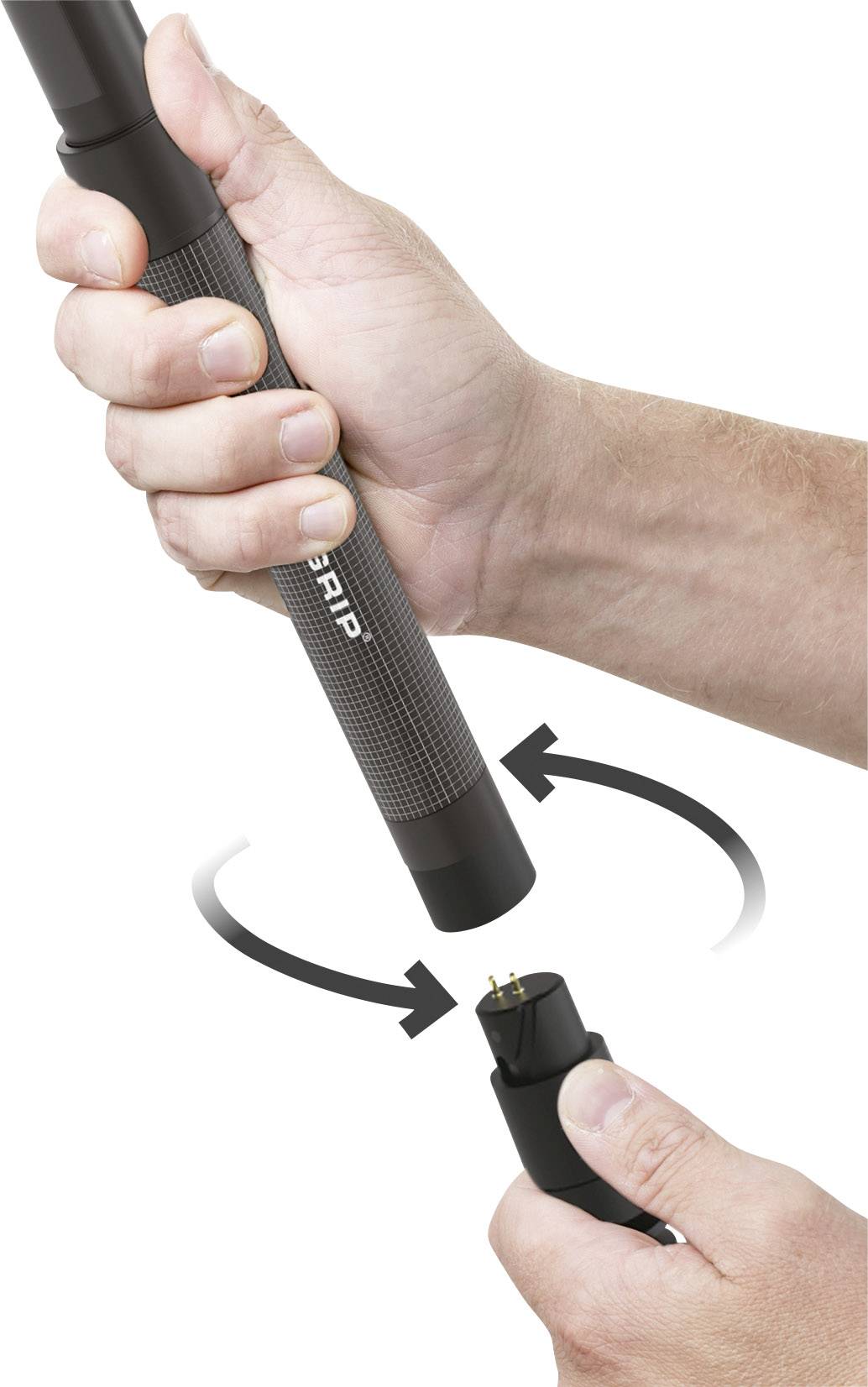

With the built-in prism, the lamp bundles the light in an illumination angle of 75° for the extremely bright and powerful illumination of the respective work area. Blinding is avoided and the lamp can be rotated for an optimum angle of illumination. Dual system means battery and mains operation (5 m robust rubber cable) for unlimited applications.
This text is machine translated.
With the built-in prism, the lamp bundles the light in an illumination angle of 75° for the extremely bright and powerful illumination of the respective work area. Blinding is avoided and the lamp can be rotated for an optimum angle of illumination. Dual system means battery and mains operation (5 m robust rubber cable) for unlimited applications.
This text is machine translated.
Scope of delivery
- Line light C+R
- Charger
- 5 m cable
- User manual.
