Schäfer Elektronik B7719300(VE2) Enclosure fan 230 V 22 W Package 2 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Enclosure fan
Operating voltage
230 V
Power
22 W
Type
B7719300(VE2)
Technical specifications
- Number of fans: 2
- Operating voltage AC 50 Hz: 230 V
- Voltage type AC
- Suitable for wall installation: Yes
- Designed as slide-in fan: No.
- Fan: No.
- Roof fan: Yes
- With filter: No.
- With protective cover: Yes
- Volume flow, free-blowing: 162 m³/h.
- Rated power 22 W
- EMC type: No.
- Noise emission 45 dB(A)
- Protection class (IP) IP20
- Mounting type: Screw terminals
- Suitable for 482.6 mm (19 inch) mounting: No.
- Packaging type
Package
- Product type
Enclosure fan
- Type
B7719300(VE2)
- Operating voltage
230 V
22 W
- Air flow rate
162 m³/h
IP20
- Content
2 pc(s)
- Mounting type
Screw fastening
- Volume
45 dB
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795878 Schäfer Elektronik B7719300(VE2) Enclosure fan 230 V 22 W Package 2 pc(s)
Description

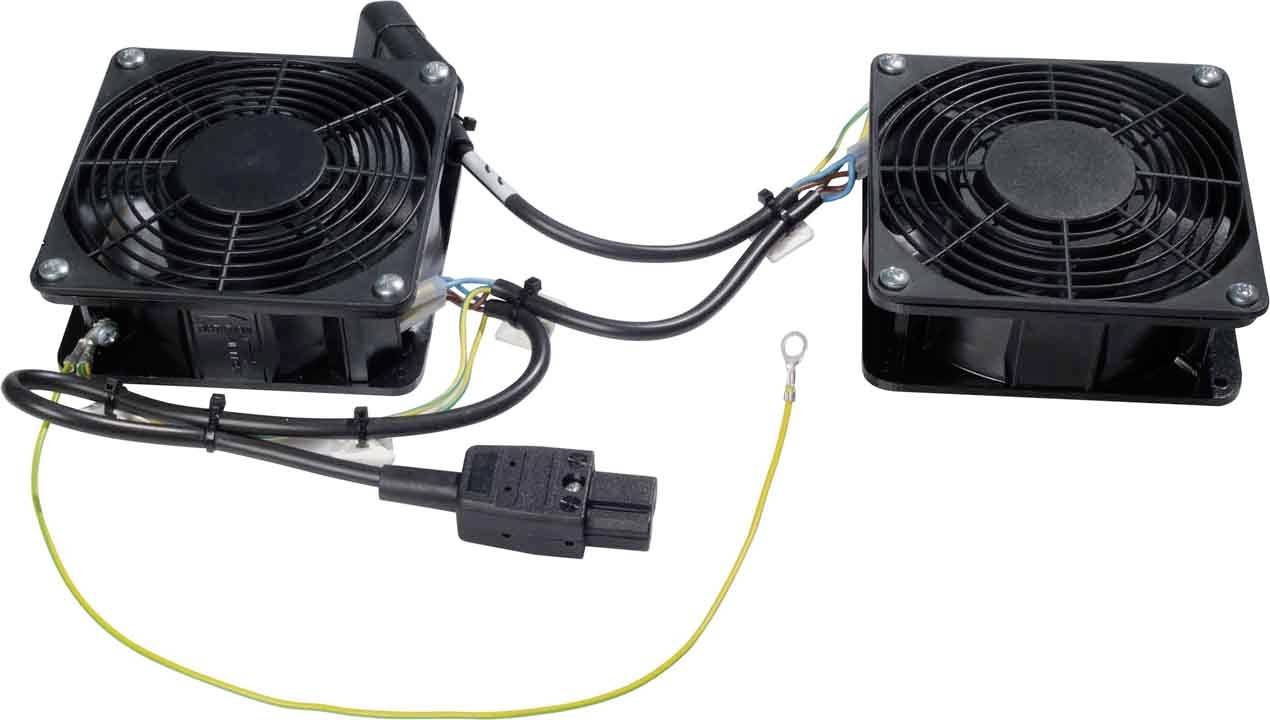

Active fan set 230V VERP Operating voltage: 230V 50/60 Hz Power output: 22/21 W Air flow per fan (free-blowing): 162/195 m³/h Noise emission per fan: Max. 45/50 dB(A) Material housing: Steel plate zinc-plated For vertical ventilation of cabinets. Easy mounting in the prepared roofs. A module consists of two fans. The fan modules can be cascaded. Simple replacement of defective fans with bolted casing. Note: Power cord not included in the scope of supply consisting of: 1 Active fan module Mounting material Supplied state: Packaged
