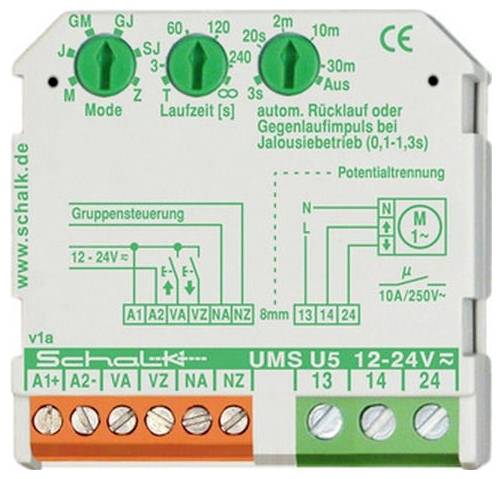

Schalk UMSU5V Controller

Compact motor control for shutters, blinds, (garage) gates, etc. (AC motors) as flush-mounted variant. Operating voltage = control voltage 12-24V UC. Motors with potential-free approach on the output side are controlled via 2 NO contact 10A/250V AC (locked on one side). Therefore very well suited for central control units of many distributed motors, and thus possibly with various phase controlled motors. The priority extension inputs allow several U5 UMs to be combined into group and central control systems. The motor runtime can be limited in time in order, for example, not to overload the motor in the case of mechanical blocking. A comfortable, automatic and adjustable lock function prevents unintentional opening of a roof window. With shutter control, the leaves can be adjusted precisely, or automatically adjusted to a certain angle when switching off. Runtime 3 - 240s, automatic Reverse run time 3s - 30 min, Counter-rotating pulse 0.1-1.3s, Dimensions: 43x43x18.5mm
